FUEL INJECTION

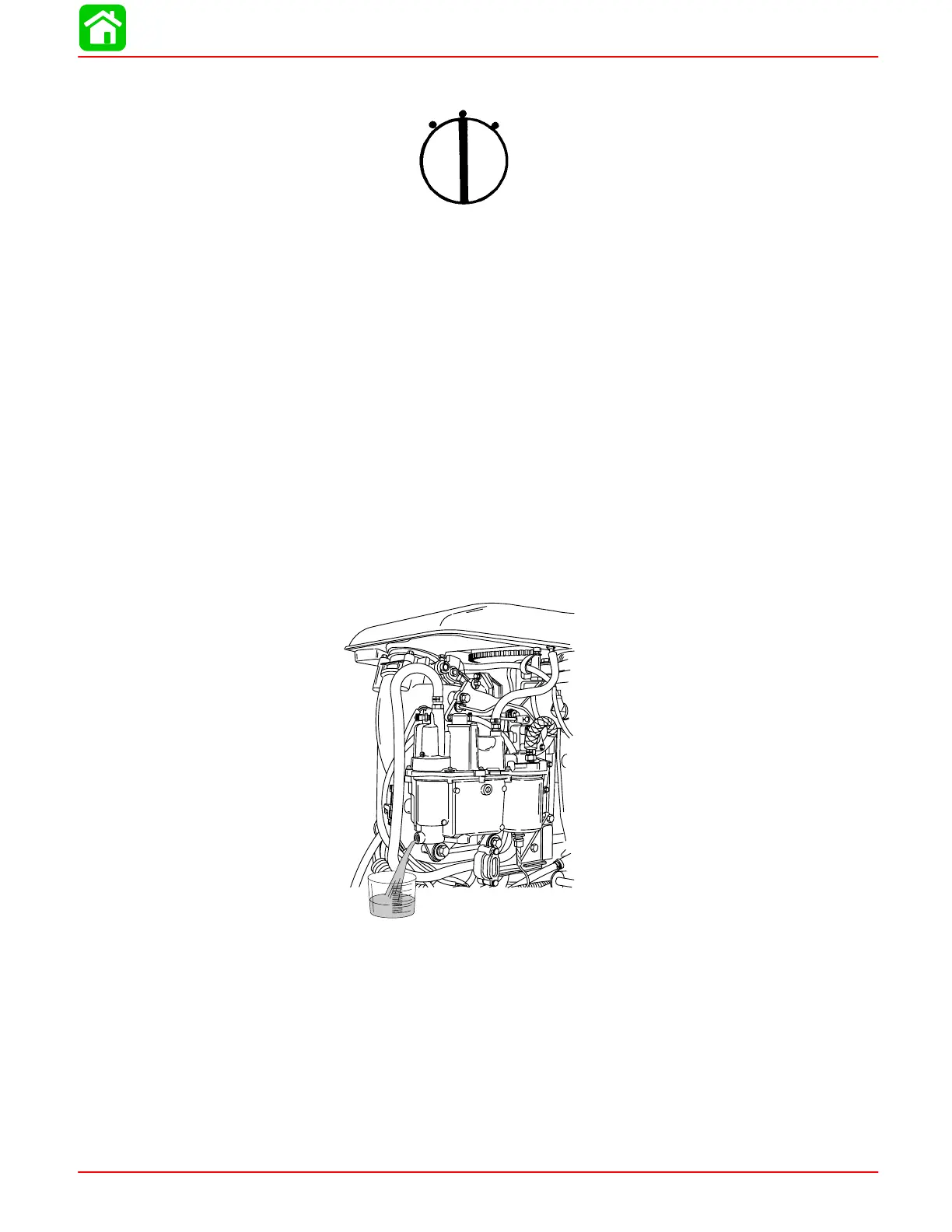

90-883728 JULY 2001 Page 3B-21
2. Turn ignition key switch to “ON” position.
OFF
ON
START
3. Operate electric fuel pump (ignition key on).
NOTE: Fuel pump will only operate for approximately 2-4 seconds. By turning the key
switch to “OFF” and then back to “ON” the pump will operate for 2-4 seconds more.
4. Take reading on fuel pressure gauge.
Results: If pressure reading is 41 to 45 psi (283 to 310 kPa), the electric fuel pump is providing fuel with
enough pressure to be used by the injectors. Pump malfunction is not the cause of EFI trouble.
If fuel pressure is well below 41 psi (283 kPa), fuel delivery to electric fuel pump, fuel pump
failure or other related problem exists. Inspect final filter for debris.
If fuel pressure is above 45 psi (310 kPa) go to fuel pressure regulator test.
Vapor Separator Fuel Delivery Test
Purpose: Verifying there is adequate fuel flow to the electric fuel pump (through full RPM range) will deter-
mine components in low pressure fuel system are functioning correctly.
1. Remove vapor separator drain plug and place a clean container under drain.
2. Prime fuel line primer bulb.
58891
Results: Fuel should flow when plug is removed and continue to flow as primer bulb is pumped. If fuel flow is
not present, inspect pulse fuel pump, water separator filter or VST float and needle valve.
If fuel flow is present, go to High Pressure Flow Chart.
