Starter Disassembly (Centrifugal Bendix)
1. Remove starter as outlined in Starter Removal.
2. Remove 2 through bolts from starter.

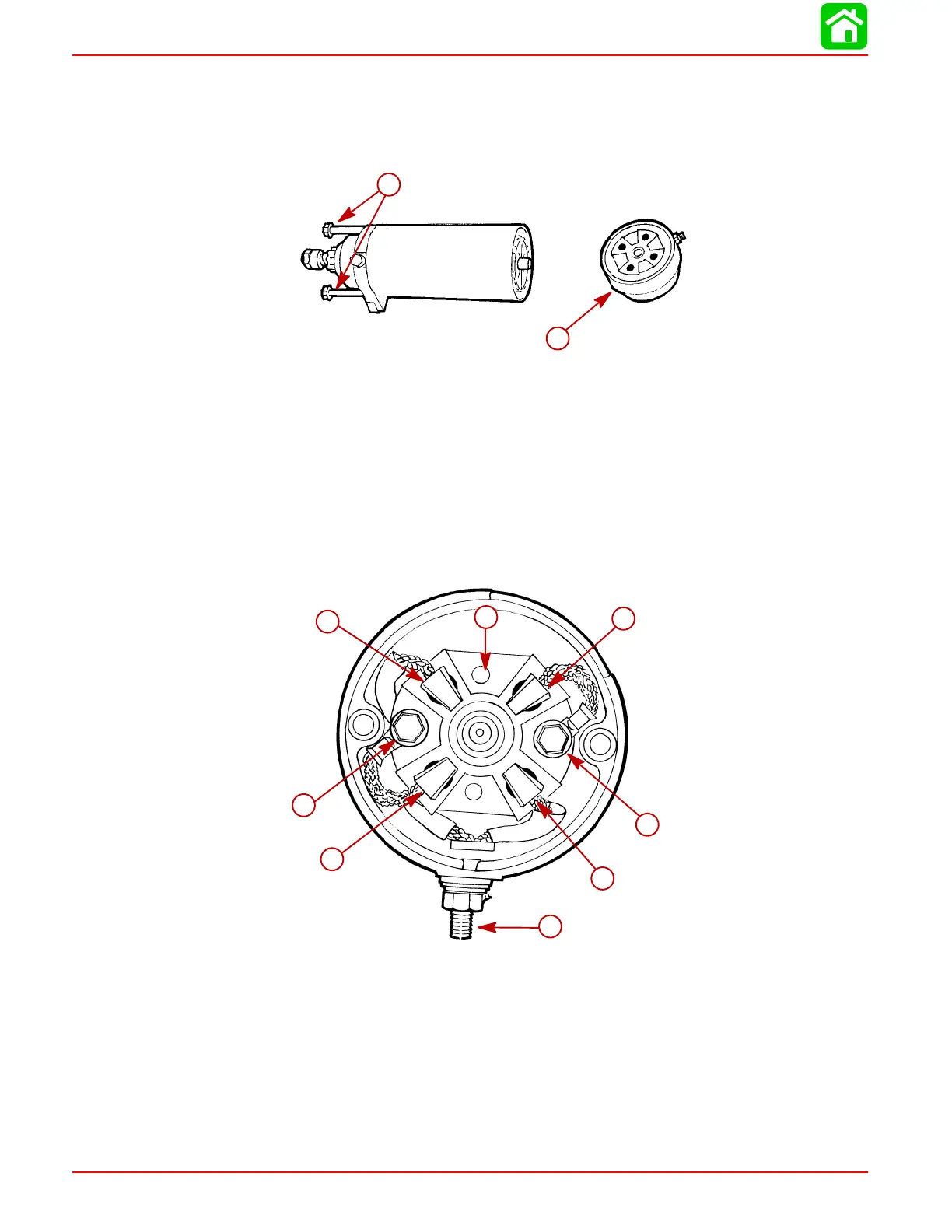

11646
b
a
a-Through Bolts
b-Commutator End Cap
3. Tap commutator end cap to loosen and remove from frame. Do not lose brush springs.
4. Brush replacement is recommended if brushes are pitted, chipped or worn to less than
0.25 in. (6.4 mm). If necessary, remove brushes as follows:
a. Remove hex nut and washers from POSITIVE (+) terminal and remove POSITIVE
brushes and terminal as an assembly.
b. Remove 2 bolts securing NEGATIVE (–) brushes and brush holder to end cap.
11656
c
e
b
d
c
e
b
a
a-Brush Holder
b-Positive Brushes
c-Negative Brushes
d-Positive Terminal
e-Bolts (fasten negative brushes and holder)
