Gear Case Lubrication
When adding or changing gear case lubricant, visually check for the presence of water
in the lubricant. If water is present, it may have settled to the bottom and will drain out prior
to the lubricant, or it may be mixed with the lubricant, giving it a milky colored appearance.
If water is noticed, have the gear case checked by your dealer.Water in the lubricant may
result in premature bearing failure or, in freezing temperatures, will turn to ice and damage
the gear case.

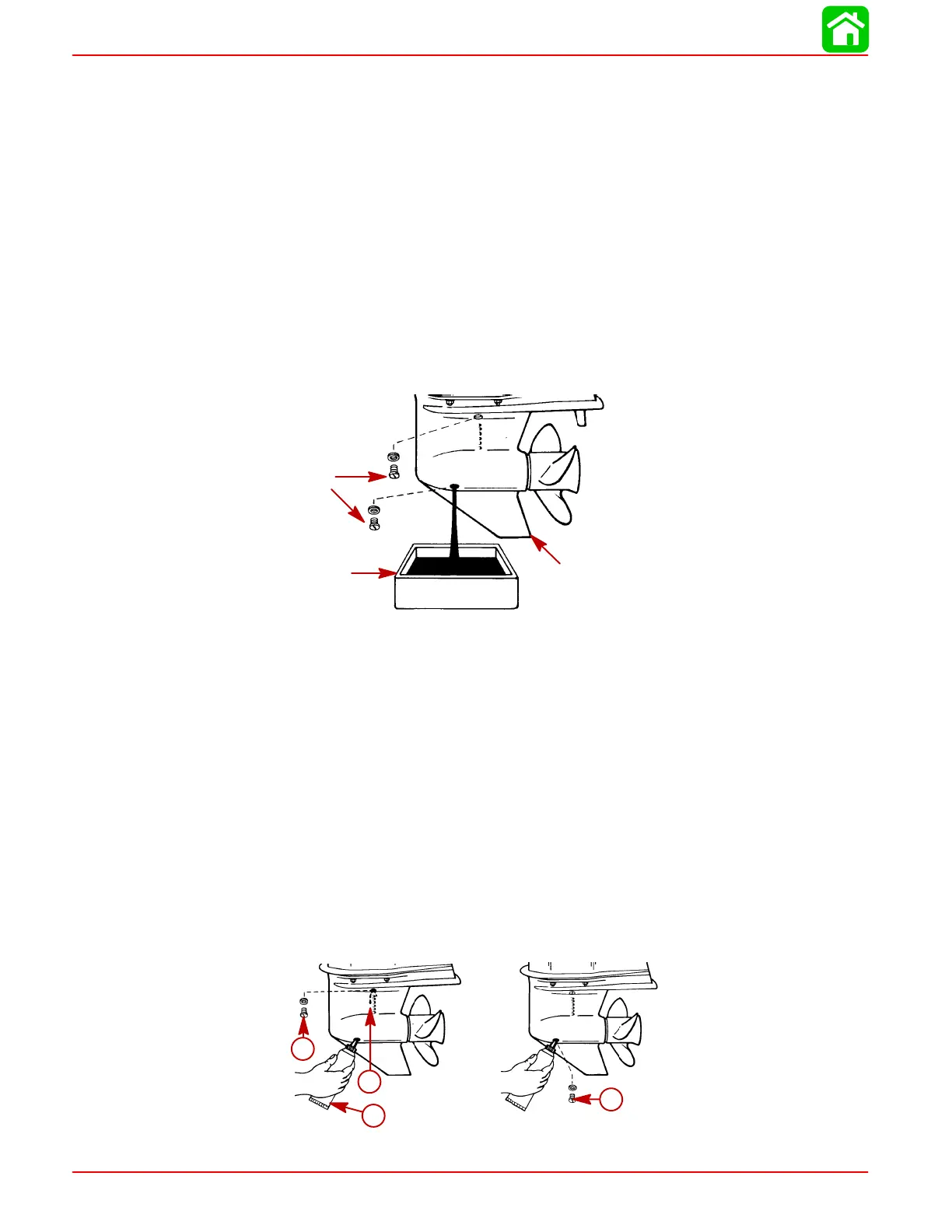

DRAINING GEAR CASE
NOTE: Some models may have the vent and fill/drain plugs on the opposite side.
1. Place outboard in a vertical operating position.
2. Place drain pan below outboard.
3. Remove vent plug and fill/drain plug and drain lubricant.
3
2
1
GEAR CASE LUBRICANT CAPACITY
Gear case lubricant capacity is approximately 22.5 fl. oz. (665 ml).
CHECKING GEAR CASE LUBRICANT LEVEL AND REFILLING GEAR CASE
NOTE: Some models may have the vent and fill/drain plugs on the opposite side.
1. Place outboard in a vertical operating position.
2. Remove vent plug (a).
3. Place lubricant tube (b) into the fill hole and add lubricant until it appears at the vent
hole (c).
IMPORTANT: Replace sealing washers if damaged.
4. Stop adding lubricant. Install the vent plug and sealing washer (a) before removing
the lubricant tube.
5. Remove lubricant tube and reinstall cleaned fill/drain plug and sealing washer (d).
1-5
a
b
c
d
