GENERAL INFORMATION
Page 1C-8 90-883728 JULY 2001

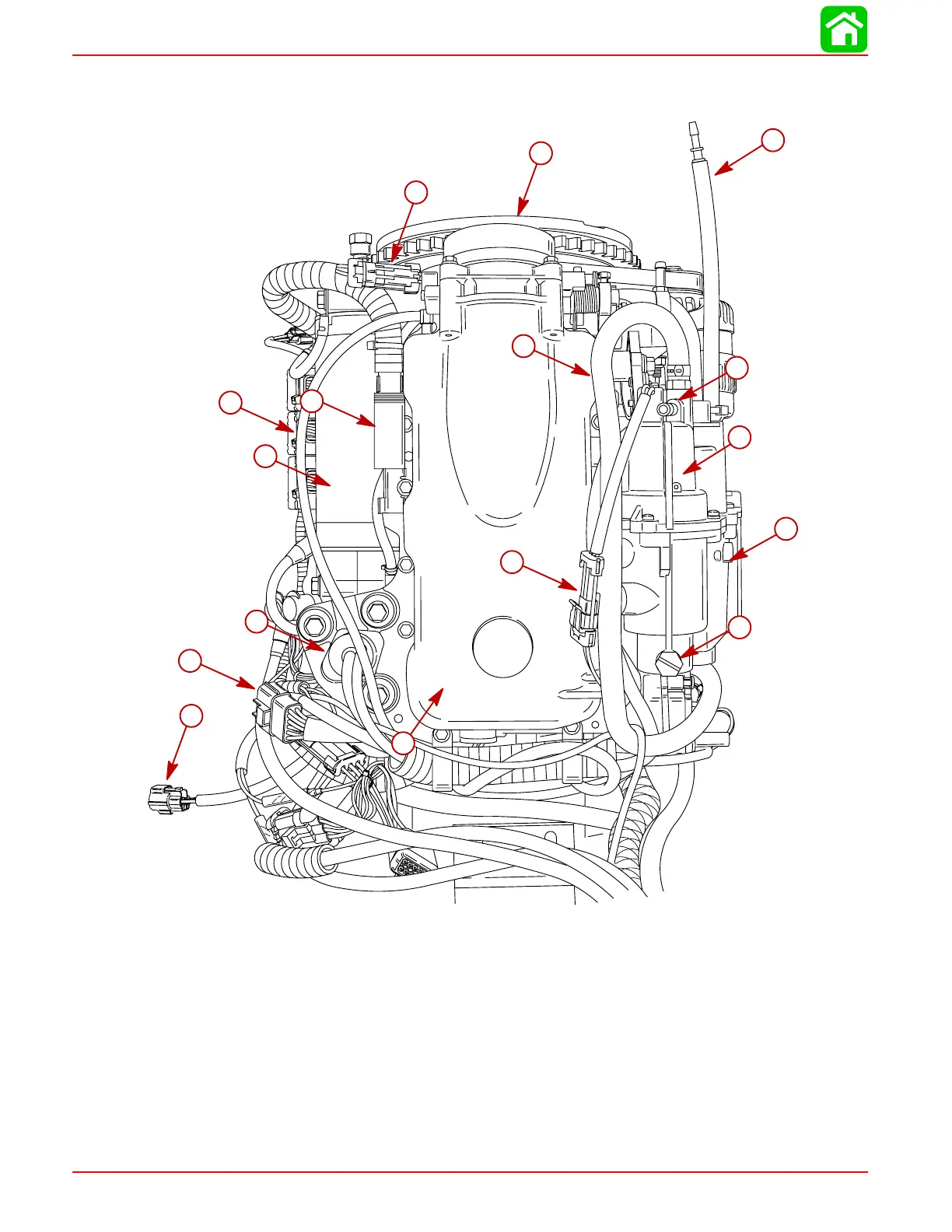

Model 150 XRI/175 XRI/200 XRI Powerhead Front View
58794
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1-Manifold Absolute Pressure (MAP) Sensor
Connector
2-Throttle Plate Assembly
3-Vapor Separator Tank (VST) Vent Hose to
Flywheel Cover
4-Fuel Pressure Test Point
5-Fuel Hose [43 psi ± 2 psi (296 kPa ± 14 kPa)]
to Fuel Rail
6-Electric Fuel Pump (inside VST)
7-Vapor Separator Tank (VST)
8-VST Drain Plug
9-Electric Fuel Pump Harness Connector
10 - Air Plenum
11 - Cowl Trim Connector
12 - Fuel Injector Harness Connector
13 - Oil Pump
14 - Starter Motor
15 - Fuel Regulator Vacuum Hose
16 - Engine Harness Connector
