IGNITION
90-883728 JUL
Y 2001
Page 2A-5

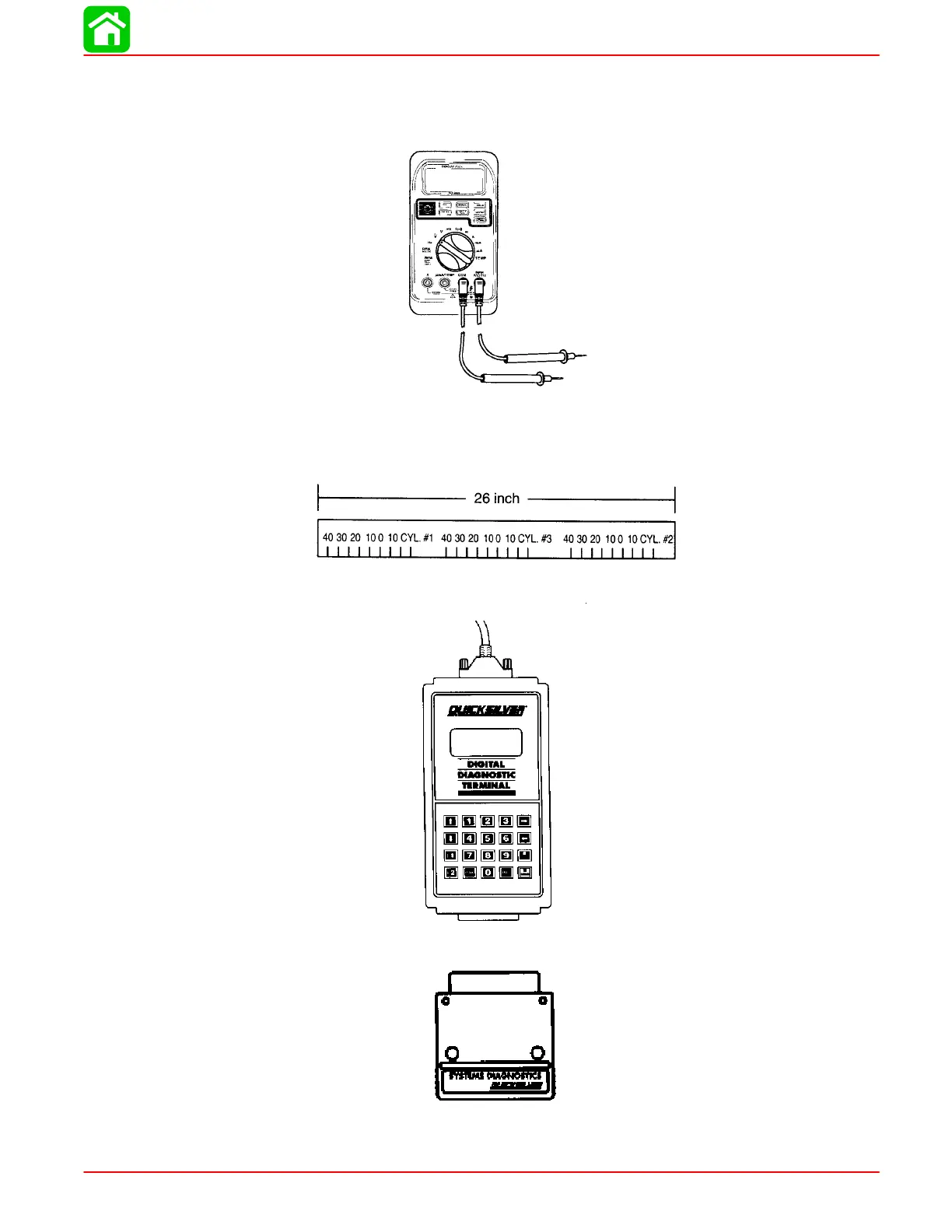

Special T
ools
1.
DMT 2000 Digital T
achometer
Multimeter 91-854009A1
2.
Cylinder T
iming Decal 91-853883-1
NOTE:
Decal can be used to help troubleshoot ignition timing by determining the timing
of individual cylinders.
3.
Digital Diagnostic T
erminal
(DDT) 91-823686A2
4.
Software Cartridge 91-8801
18--1
61
63
