IGNITION
Page 2A-38
90-883728 JUL
Y 2001

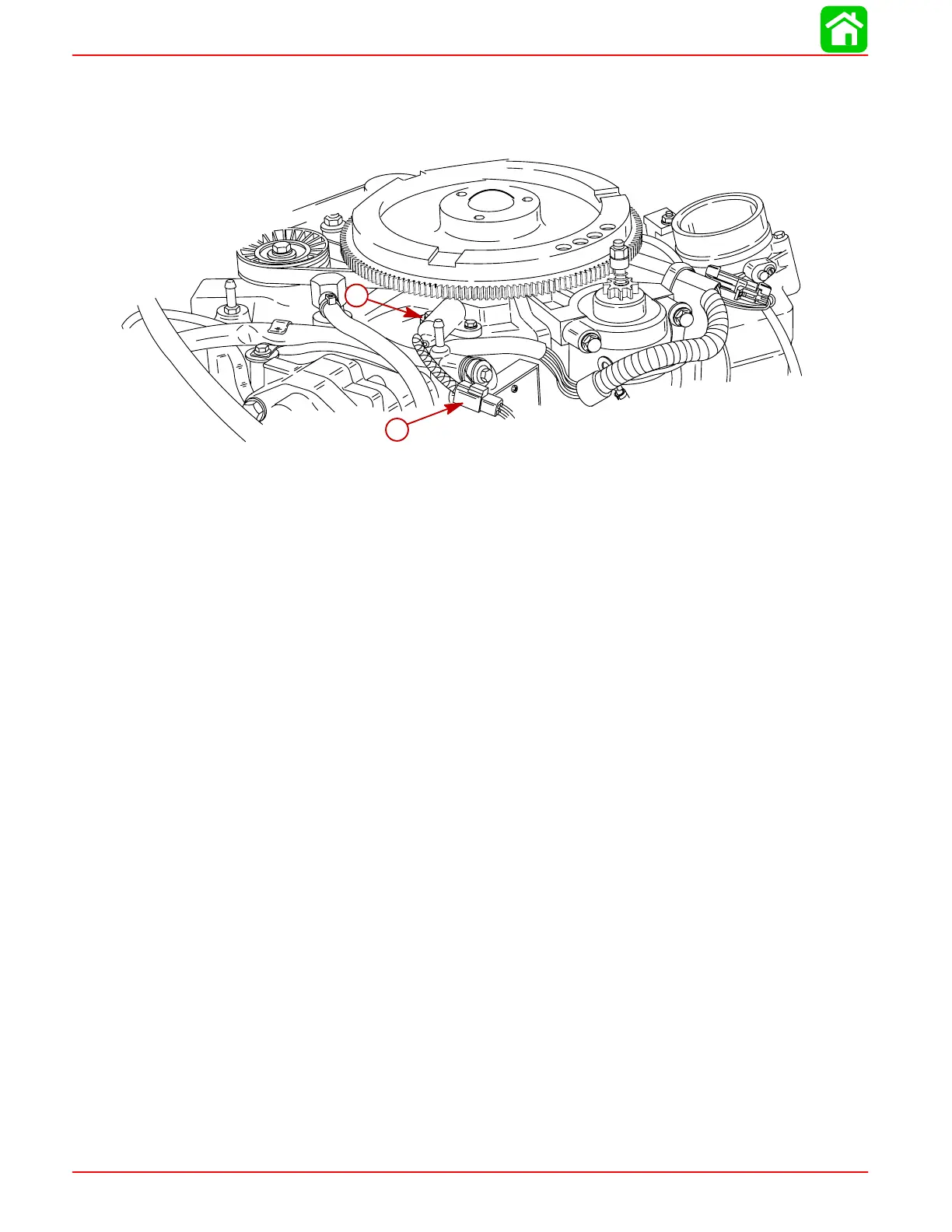

Crank Position Sensor Removal
1.
Disconnect sensor harness.
2.
Remove screws securing sensor to engine.
58775
a
b
a-
Crank Position Sensor
b-
Harness Connector
Crank Position Sensor Installation
1.
Secure sensor to engine with 2 screws. T
orque screws to 45 lb. in. (5 Nm).
2.
Reconnect sensor harness.
93
95
