CHARGING & STARTING SYSTEM
90-883728 JULY 2001 Page 2B-27

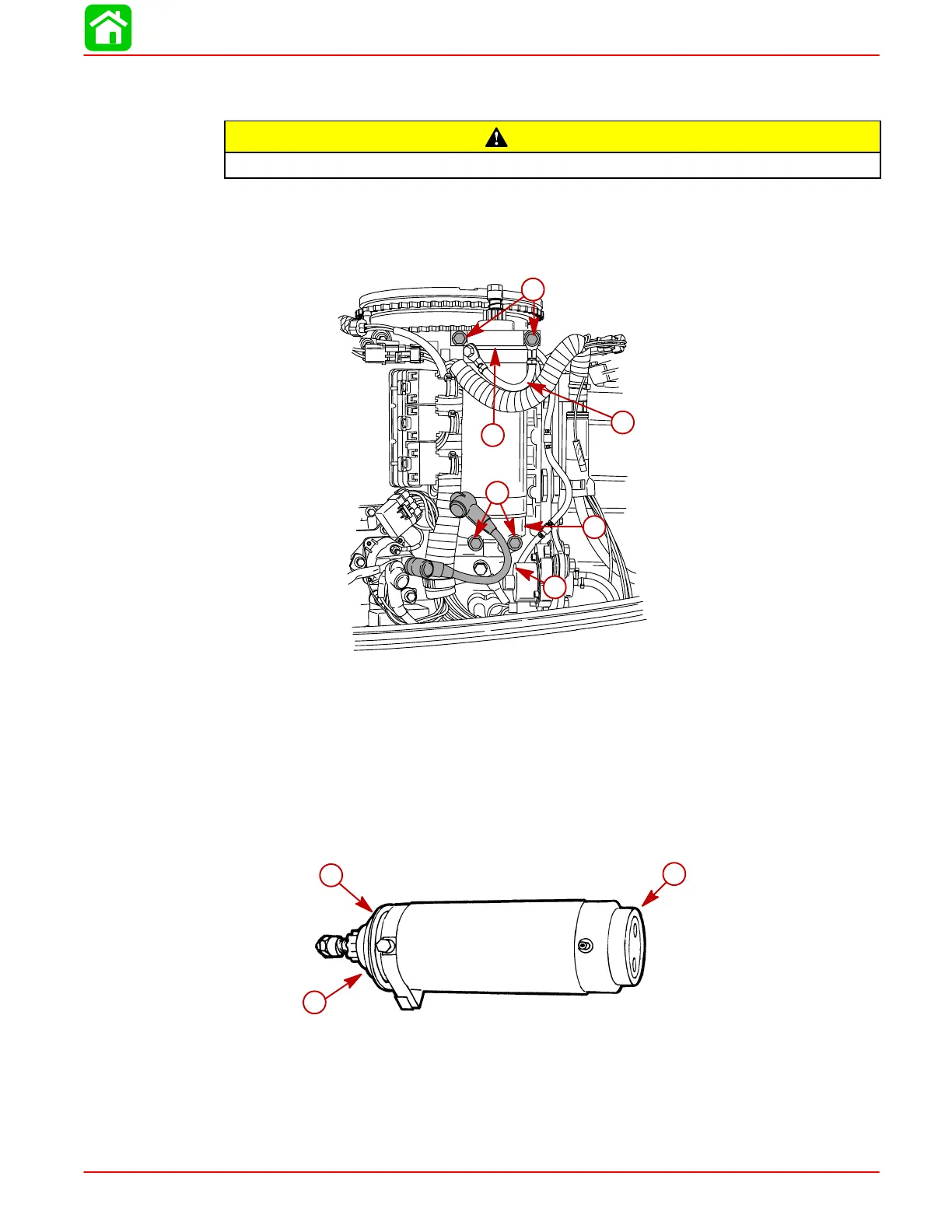

Starter Removal (Centrifugal Bendix)
CAUTION
Disconnect battery leads from battery before removing starter.
1. Disconnect BLACK ground cable from starter.
2. Disconnect BLACK (with YELLOW sleeve) cable from starter.
3. Remove 4 bolts and upper and lower starter clamps. Lift starter from engine.
58803
c
d
a
e
f
b
a-BLACK ground cable
b-BLACK (with YELLOW
sleeve) + 12 volt cable
c-Upper Mount Bolts
d-Lower Mount Bolts
e-Upper Clamp
f-Lower Clamp
Starter Installation (Centrifugal Bendix)
1. Slide rubber collars on starter.
2. If the removed starter was equipped with a spacer replace spacer on upper collar.
11645
a
a
b
a-Rubber Collar b-Spacer (If Equipped)
3. Install starter to engine with starter clamps. Make sure that BLACK ground cable is
fastened, along with lower mounting bolts. Torque bolts to 210 lb. in. (23.5 N·m).
4. Reconnect yellow cable to positive (+) terminal on starter.
5. Reconnect BLACK ground cable to terminal on starter.
To Next Page
