CHARGING & STARTING SYSTEM
Page 2B-40 90-883728 JULY 2001
Troubleshooting the Solenoid Driven Bendix Starter Circuit
Before beginning the troubleshooting flow chart, verify the following conditions:
1. Confirm that battery is fully charged.
2. Check that control lever is in “NEUTRAL” position.
3. Check terminals for corrosion and loose connections.
4. Check cables and wiring for frayed and worn insulation.
5. Check 20 amp fuse.
Location of “Test Points” (called out in flow chart) are numbered below.

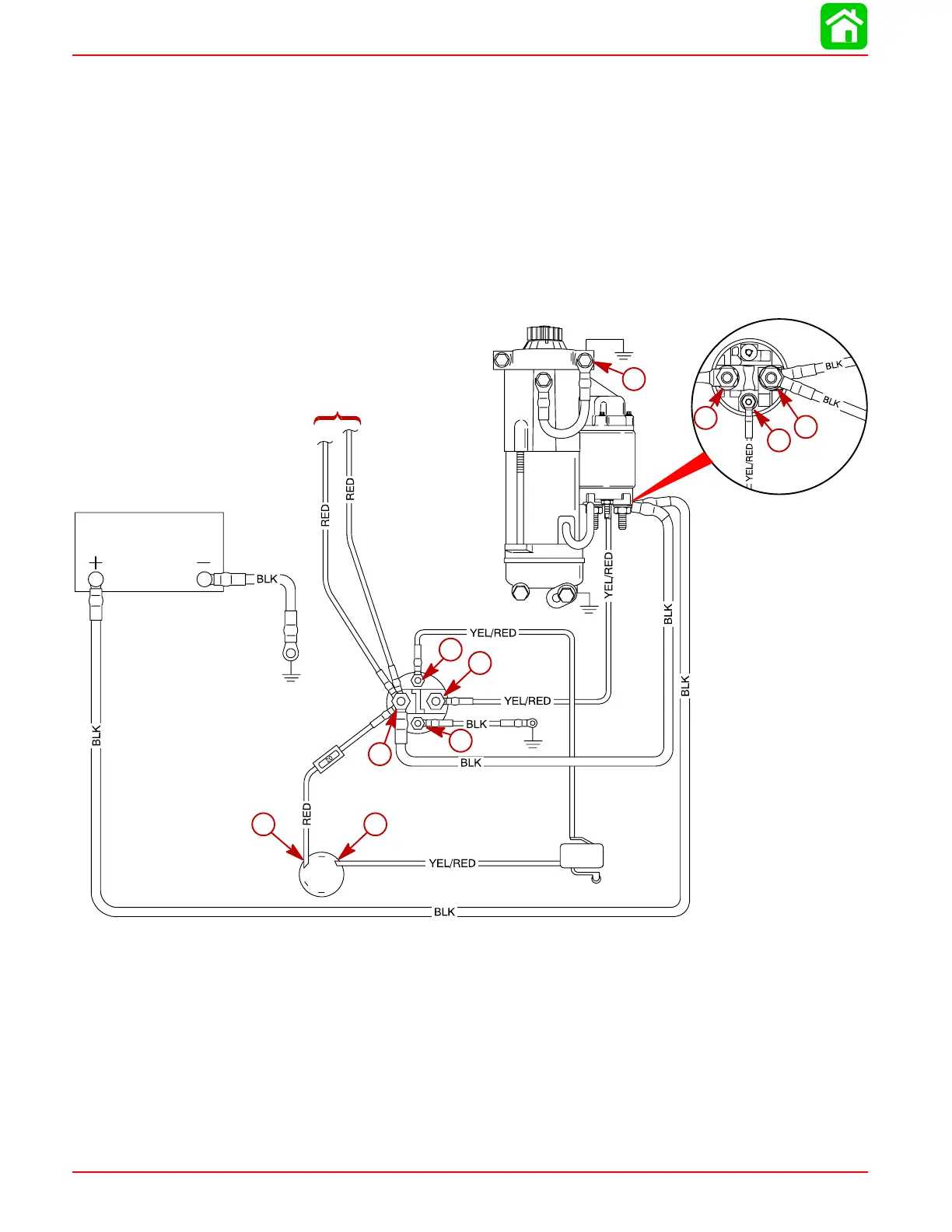

Solenoid Driven Bendix Starter Circuit
BATTERY
20 AMP FUSE
(LOCATED IN CONTROL HOUSING)
58431
TO ALTERNATOR
STARTER
IGNITION SWITCH
NEUTRAL START SWITCH
STARTER
SOLENOID
SLAVE SOLENOID
2
4
1
9
8
3
7
6 5
10
To Next Page
