OUTBOARD MOTOR INSTALLATION
90-855347R1 JANUARY 1999 Page 1D-3

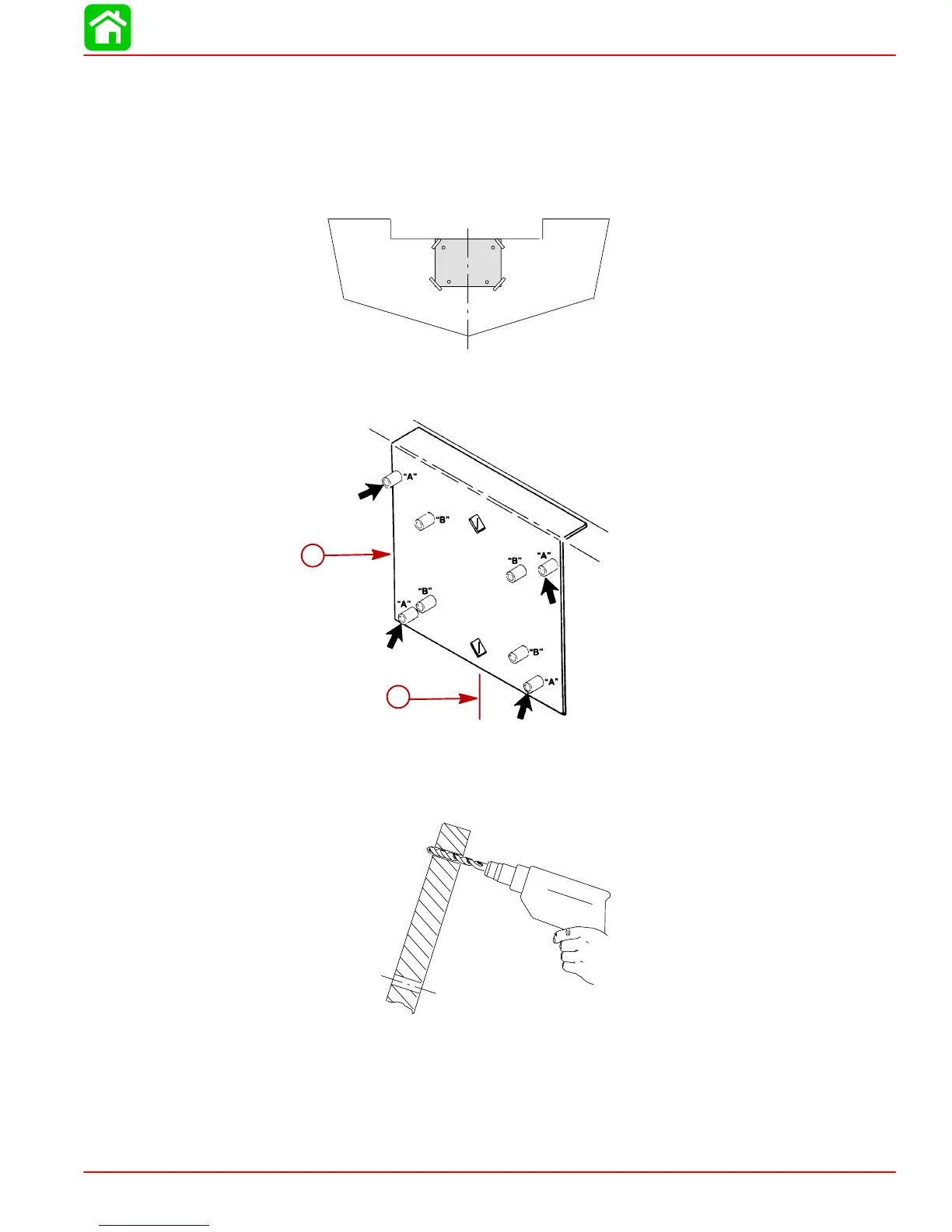

Installing Outboard
Drilling Outboard Mounting Holes
1. Attach (tape) engine mounting template (located with the installation manual) to boat
transom.
IMPORTANT: If using “Transom Drilling Fixture” (part number 91-98234A2), use
drill guide holes marked “A” when drilling outboard mounting holes.
b
a
a-Centerline of Transom
b-Transom Drilling Fixture (91-98234A2)
2. Mark and drill four 17/32 in. (13.5mm) mounting holes.
