Section 3 - Screen Overview and Operation
Page 24 90-8M0087257 eng DECEMBER 2014
System Status Field Functionality
The system status field is used to communicate specific engine information and active modes. It will always be visible on the
main screen in the lower left corner of the display, unless a pop‑up full screen warning is encountered. The color, icon, and text
will change according to the system status, warnings, maintenance indication and active modes. Your vessel personality and
the type of power package installation will have a direct effect on which icons will be available in the system status field. Not all
of the available icons are listed in the following table.

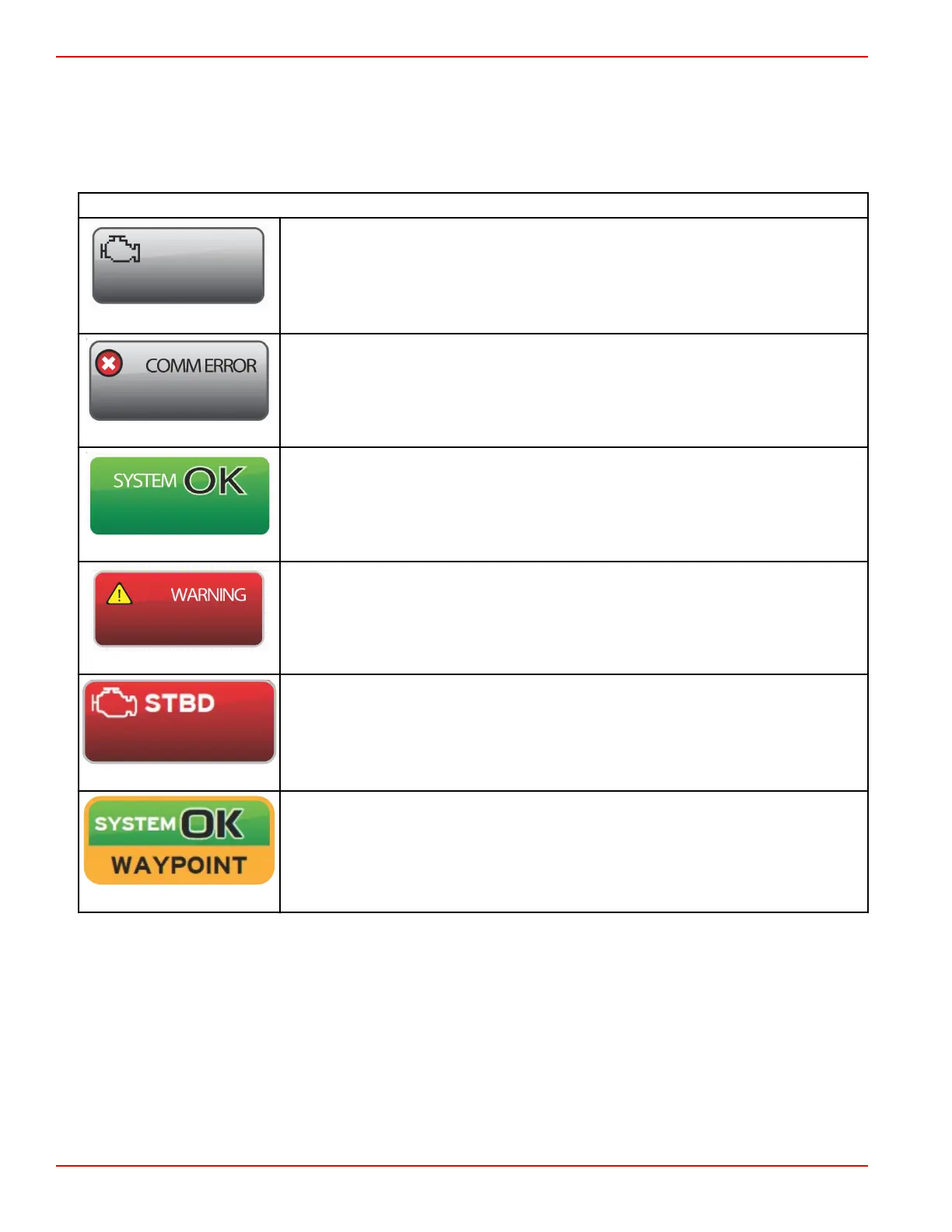

System Status Field Examples
Engine icon when ignition is turned on. The icon is only visible if the power package has
emissions control.
Communication error when the ignition is turned on. The power package is not
communicating through the control area network.
Indicates that every component connected to the control area network is within normal
operating parameters.
Warning icon indicates that there is a fault.
Warning indicating the starboard engine onboard diagnostic has detected a fault. All other
fault identified engine locations will appear similar.
Autopilot waypoint tracking. The orange color indicates waypoint tracking is active and
computer controlled. If autopilot waypoint tracking is in standby mode (not active) the color of
the field will be gray. This color scheme change is the same for all autopilot functions.
