Section 3 - Screen Overview and Operation
Page 28 90-8M0087257 eng DECEMBER 2014

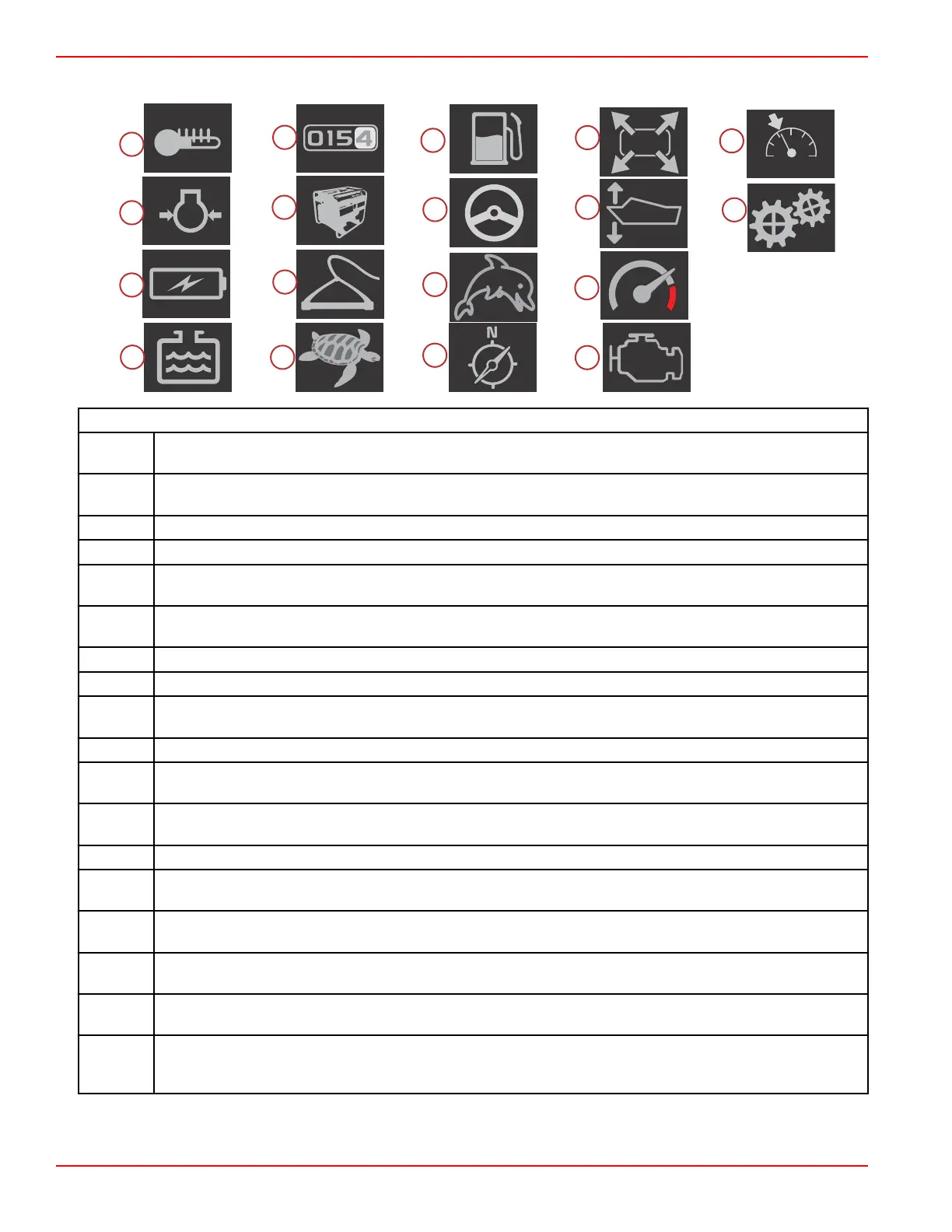

Scroller Bar Icons
Icon Description
a
Temperature—displays engine and fluid temperature values for oil, water, and fuel. Displays environmental air
and manifold air temperature. Available information is power‑package dependent.
b
Pressure—displays engine pressure values for water, oil, fuel, and boost. Available information is power‑package
dependent.
c Voltage—displays battery values for all engines.
d Tanks—displays the vessel's onboard tanks data for fuel, water, waste, and oil (two‑cycle only) capacity.
e
Trip Log—displays recorded trip data: total distance, total time, average speed, and average fuel consumption.
Trip log recorded data can be erased and set to zero.
f
Generator—displays data the generator can send through a NMEA 2000 or J1939 protocol control area network:
current state (run/stop), voltage (AC/DC), hertz, hours, oil pressure, and water temperature.
g Smart Tow—activates Smart Tow profiles for selection. Profiles can be modified.
h Troll Control—activates low‑speed engine control. Can be used to control engine RPM.
i
Fuel Management—displays fuel system statistics: current economy, average economy, volume use per hour,
total capacity, and fuel used.
j Autopilot—displays autopilot data.
k
Eco—displays information to guide the operator to the best trim position and engine speed to achieve the best
fuel economy.
l
Navigation—displays data relating to installed navigation system: compass heading, longitude and latitude, time
to waypoint (TTW), bearing to waypoint (BTW), distance to waypoint (DTW), and course over ground (COG).
m Expand—displays enlarged data from selected data screens. Selected data will cycle on‑screen.
n
Trim and Tabs—displays drive trim position and position of tabs. A sensor must be installed on the tabs for this
function to display information.
o
Performance—displays advanced performance data: peak performance (RPM/speed) and inches per revolution
of the propeller.
p
Engine Data—displays additional engine information: manifold temperature, throttle percent, engine load, and
manifold boost pressure. Available information is power package dependent.
q
Cruise Control—activates cruise control. Allows the user to control the vessel with the engine RPM or vessel
speed. Vessel speed control requires a paddle wheel sensor or GPS.
r
Settings—main location where data can be turned on or off, modify sensor data tolerance ±, select preferred
displayed values (metric/English/nautical), and reset to factory default.
Note: A reset to factory default will erase all customized settings.
