Section 3 - Screen Overview and Operation
90-8M0087257 eng DECEMBER 2014 Page 27
NOTE: An arrow icon will appear to the left and right of the scroller bar. When only one arrow icon is visible, you must use
the indicated arrow button to move the selection. When both arrows are visible, either arrow button can be used.

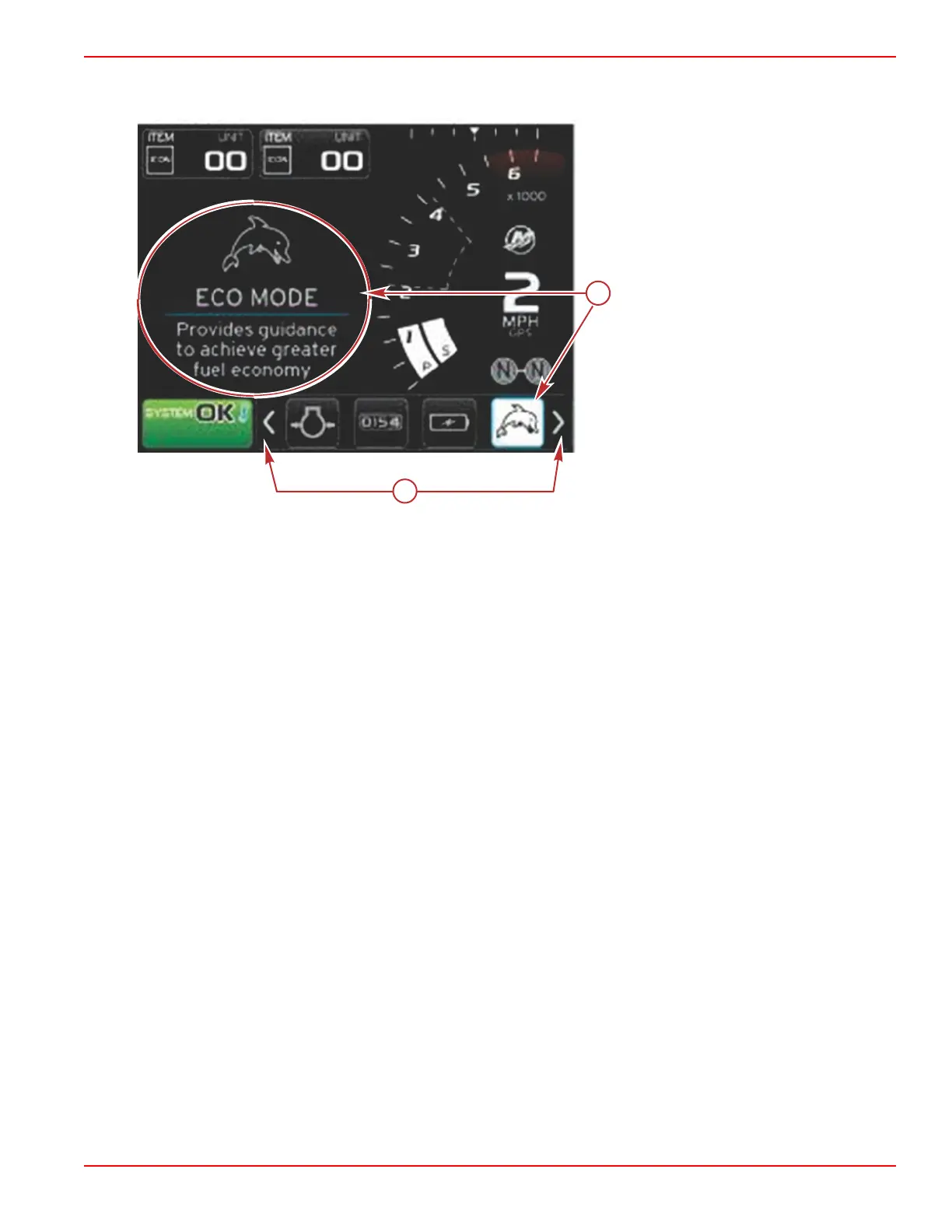

a - Selected icon
b - Scroller bar arrows
User‑Selected Data Area
During the scroller bar navigation process, when the icon is highlighted and the enter button is not pressed, the user‑selected
data area will change to display the icon, the icon name, and description of what the feature does. The user‑selected data area
will show this information for a short time only.
Final User-Selected Data Selection
When the icon has been selected, press the enter button. The icon will show up next to the system status field and the
user‑selected data area will display the full data pertaining to that selection.
