Section 3 - Screen Overview and Operation
Page 36 90-8M0087257 eng DECEMBER 2014

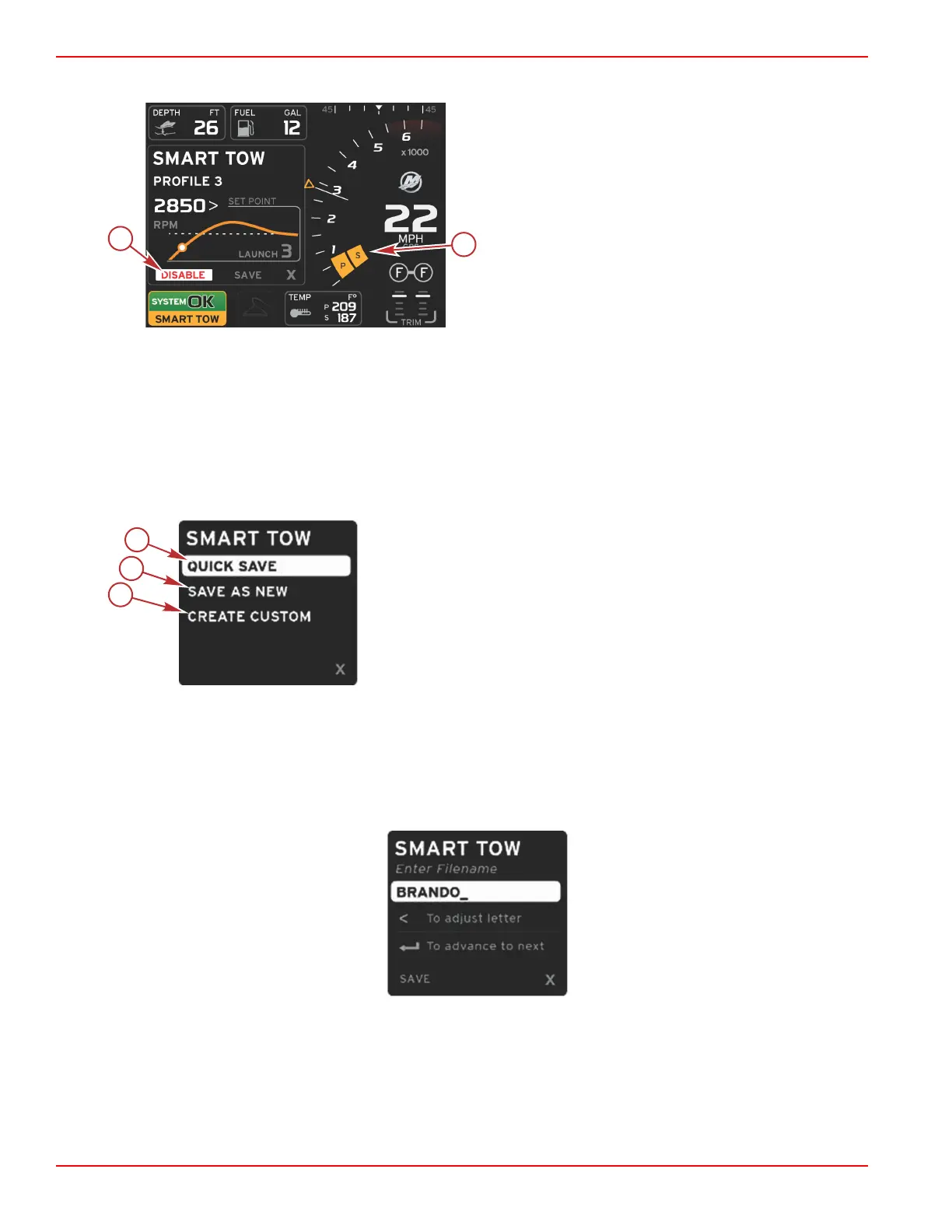

b. The Disable icon will be red when not active
a - Not active – red
b - Normal RPM sweep displayed when MPH mode is
selected
• Use the arrow buttons to highlight save. Save will modify the Smart Tow screen to allow the operator to choose quick save,
save as new, or create custom.
• If the operator selects the X and presses the enter button, Smart Tow is disabled and the constant and user‑selected data
area returns to the default screen.
Save
When the operator selects save and presses the enter button, the user‑selected data area will transition to the save options.
Quick save is the default selection.
• The pages button will move through the choices. Press enter to confirm the selection.
a - Quick save
b - Save as new
c - Create custom
•
QUICK SAVE will store the existing profile with the new RPM or speed values. Press the enter button to save the data and
return to the Smart Tow screen.
•
SAVE AS NEW allows the operator to store the current setting with a custom name. Press the enter button to transition to
the custom file name. The file name selection is active by default.
a. Use the arrow buttons to change the letter.
b. Use the enter button to advance to the next letter.
c. Use the pages button to highlight save and press the enter button to confirm the changes.
NOTE: If the operator wants to exit, press the pages button to move the selection tab to the navigation footer then
press the arrow keys to select X and press the enter button. The screen will transition to the main screen without
saving the new data.
