Miele G600 User Manual

Technical Information
G600 & G800 Electronic Dishwashers
1.6 Layout of Components
1.6.1 Novotronic and Touchtronic Series
1 Temperature Limiter 90°C, 3F2. (before 8/99)
2 Interference Suppression Capacitor, Z2
3 Capacitor - Circulation Pump, C6
4 Rinse Aid Dispenser, Y50
5 Detergent Dispensert, Y51
6 Flow Through Heater, R1
7 Temperature Limiter 150°C, 1F2 and 2F2
8 Door Switch, S24
9 Fan M2 & PTC Release Element Y56
10 On / Off Switch, S2
11 WaterProof System (WPS), Y2
12 Electronic
13 Reed Switch - Rinse Aid, B8/1
14 Relay - Heating, 1K1/1
15 Terminal Block, X3/1
16 Circulation Pump, M6
17 Water Softener Valve, Y38/1
18 Flow Meter, B3/4
19 Reed Switch – Salt Float, B8/2
20 Drain Pump, M8
21 Level Switch - Overflow, B1/2
22 Temperature Sensor, R30
23 Float Switch, B8/3
24 Level Switch - Heating, B1/10
25 Transformer, T1

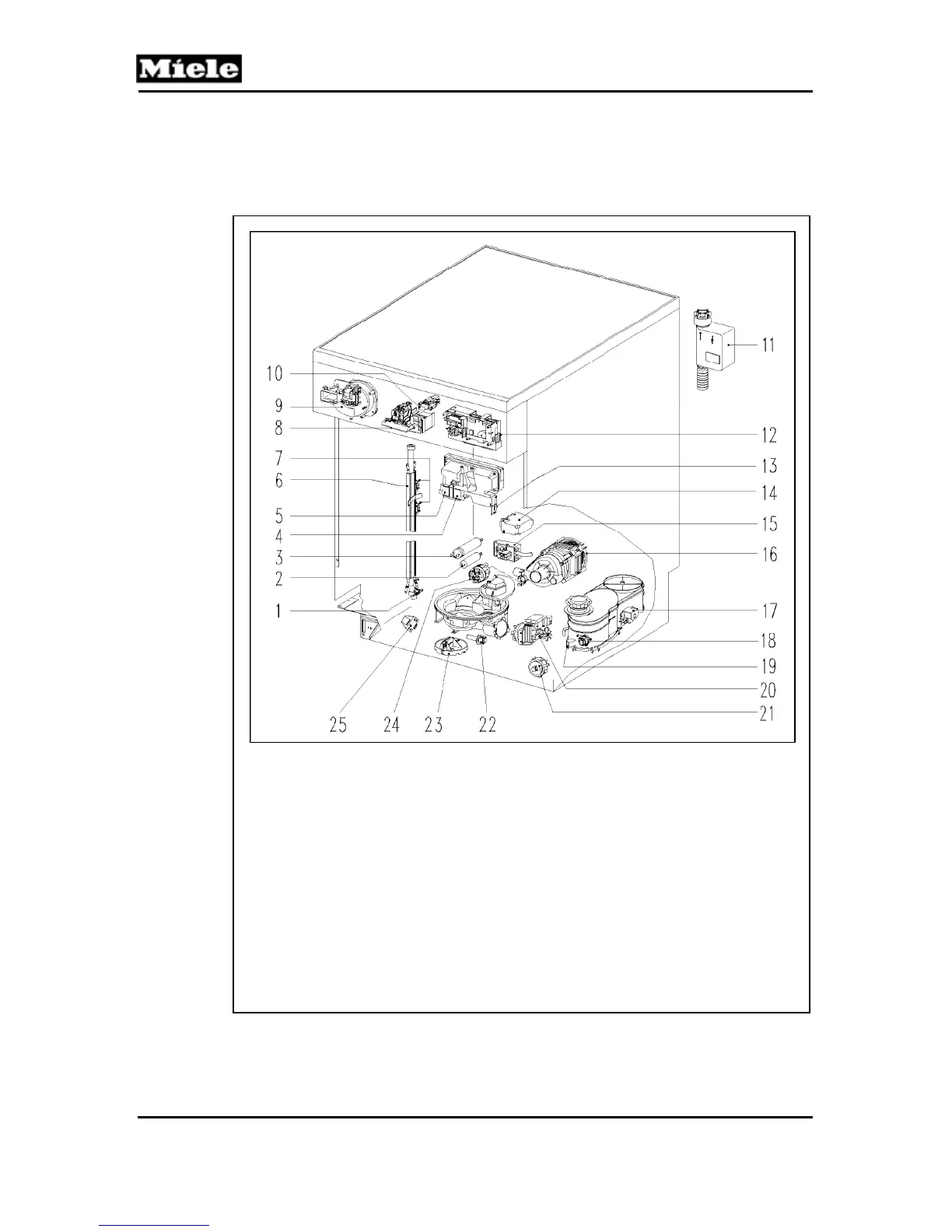

Figure 1-9: Component Overview – Novotronic & Touchtronic Series
