Technical Information
G600 & G800 Electronic Dishwashers
5.46 Fully Integrated (Vi) Control Panel - Removal
Refer to figure 5-39.
1. Open the Door.
2. Hold the Fascia Panel (Item 9) while removing the interior Screws
(Item 10).
3. Lift the Fascia Panel (Item 9) from the appliance.
1 Fixing Screws
2 Fixing Bracket
3 Electronic Unit
4 Fixing Screw - Door closure
5 Wiring Harness
6 Electronic Unit
7 Fixing Screws
8 Fixing Screws
9 Fascia Panel
10 Fixing Screws

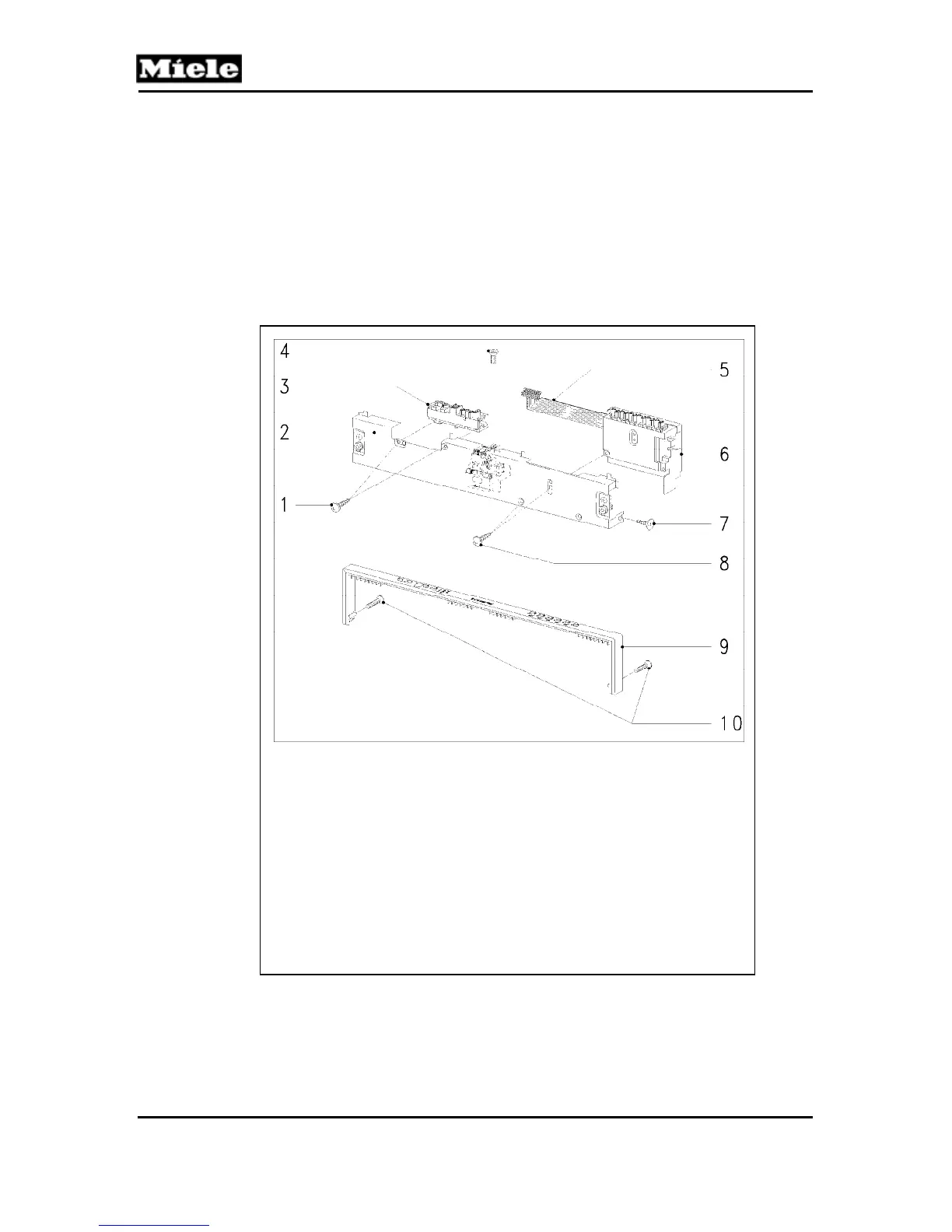

Figure 5-39: Fully Integrated (Vi) Control Panel
