Technical Information
G600 & G800 Electronic Di
shwashers
5.31
Float Switch (B8/3) – Removal
Refer to figure 5-26
.

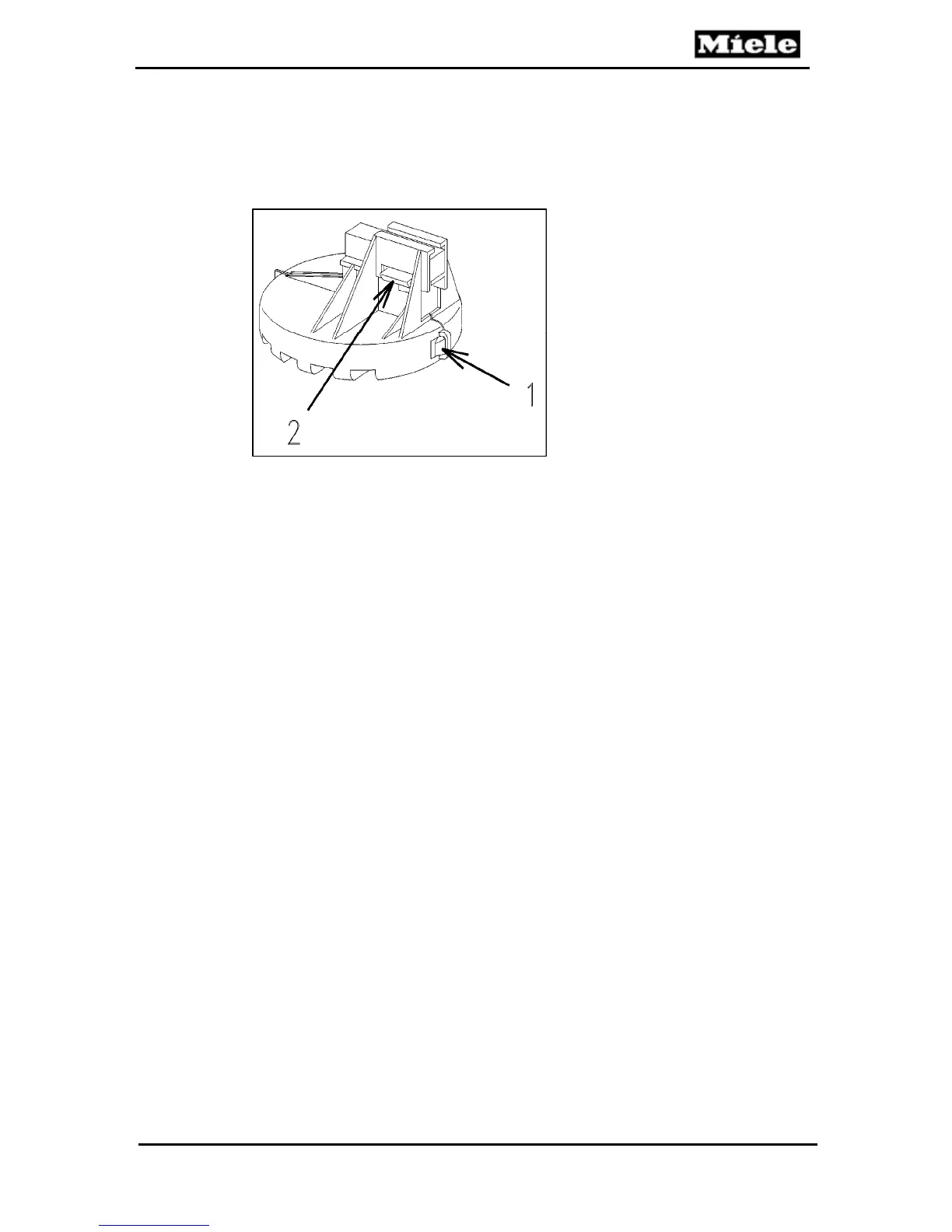

Figure 5-26:
Float Switch Housing
1.
Remove the Float Switch Housing (5.30).
2.
Unclip the Top and Side
Retainers (Items 1 and 2).
3.
Open the Float
Switch Housing.
4.
Remove the Switch.
81
80
82
Table of Contents
Default Chapter
2
Table of Contents
2
1 Construction Design
9
Appliance Overview
9
Appliance Overview - Typical Integrated Model
9
Unit Overview - Typical Fully Integrated (VI) Model
10
Appliance Overview – Typical Fully Integrated (VI) Model
10
Controls Overview
11
Types of Dishwashers
13
Pre-Finished Dishwasher
13
Integrated Dishwasher
13
Fully Integrated
13
Technical Data
14
Dishwasher Height
14
Dishwasher Heights
14
Dishwasher Width
14
Dishwasher Widths
14
Electrical Information
15
Summary of Dimensions
15
Drain Connection
16
Hard Wire Electrical Connection
16
Intake Connection
16
Plumbing Connection
16
Data Tag
17
Data Tag Locations and Information
17
Layout of Components
18
Component Overview – Novotronic & Touchtronic Series
18
Novotronic and Touchtronic Series
18
Component Overview – Incognito (VI) Series
19
Incognito Series
19
2 Installation (Refer to the Appliance Installation Manual)
20
3 Commission and Operation
21
Door Handle and Door Lock (Novotronic & Touchtronic Series)
21
Closing the Dishwasher Door
21
Child Safety Lock
21
Water Softener
22
General Operation - Novotronic Series
23
General Operation - Touchtronic Series
23
General Operation - Incognito Series
23
4 Description of Function
24
Cabinet Construction
24
Fan Assembly (Turbothermic Fan Equipped Models)
24
PTC Release Element
24
Combination Dispenser
25
Construction
25
Dispenser Assembly
25
Dispensing
26
Detergent Quantity in Combination Dispensers
26
Heaters
27
Wash Cavity Heating Element
27
Cavity Style Heater Element
27
Flow through Heater
28
Flow through Heater Electrical Data
28
Heater Circuit - Operation
29
Pulsed Heating - Operation
30
Temperature Protection
30
Static Drying
30
Spray Arms
31
Spray Arms - Rotation Data
31
Filter Assembly
31
Water Intake - Technical Data
32
Flow Restrictor Data
32
Water Inlet Mixer Data
32
Waterproof System
33
Waterproof System Connection
33
Water Intake Circuit
35
Flowmeter - Operation
36
Flowmeter Assembly Components (External Flowmeter Shown)
36
Water Intake
37
Water Intake System Equipped with Integrated Flowmeter
37
Water Mixing
38
Water Mixing - External Flowmeter
38
Water Hardness Selector
38
Water Mixing - Integrated Flowmeter
39
Water Path with Integrated Flowmeter
39
Water Inlet Mixer
40
Solenoid Valve - Operating (Plus Models Only)
41
Water Hardness Mixer Solenoid
41
Electronic Controlled Water Hardness
42
Water Softener
43
Reactivation
44
Reactivation Cycles
45
Reactivation Cycles Timing
45
Condenser Drying (UKT)
46
Operation
46
Technical Data
46
Components for the Condenser Drying System
47
Control Valve
48
Drain Pump, Circulation Pump
49
Level Switch - Heater (Heater Pressure Switch)
49
Circulation and Drain Pump Data
49
Heater Pressure Switch – Contact Positions and Current Paths
50
Level Switch (Intake Overflow)
51
Temperature Sensor
52
NTC Sensor Resistance Values
52
Top solo Valve
53
Turbidity Sensor (ECO Sensor)
54
Electronic Unit - Power Outputs
55
Activation of Components
55
Programming after Replacing the Electronic
56
Electronic Modes
56
5 Service and Maintenance
57
Locking Plate - Adjustment
57
Cabinet Seal - Replacement
57
Seal Fitting Plan
57
Side Panel - Removal
58
Side Panels and Cabinet
58
Spring Bracket - Replacement
59
Side View, Door with Bracket
59
Cover Plate - Removal
60
Connecting Strip - Removal
61
Plinth Area with Connecting Strip
61
Basket Support Rollers - Replacement
62
Basket Guide
62
Bolt and Retaining Clip
62
Basket Guide Stopper
63
Stopper Removal
63
Combination Dispenser - Removal
64
Exterior View of the Inner Door Panel
64
Turbothermic Fan - Removal
65
Door Panel (Outer and Inner) - Removal
66
Inner Door Panel Removal
66
Cable Holder - Removal
67
Lock / Handle Assembly - Removal
68
Lock Removal
68
Door Hinge - Removal
69
Door Tension - Adjustment
70
Door Tension Adjustment Screw
70
Top Spray Arm - Removal
71
Middle Spray Arm - Removal
71
Bottom Spray Arm - Removal
71
Top Spray Arm Feed Pipe - Removal
71
Middle Spray Arm Cover - Removal
72
Middle Spray Arm Feed Pipe - Removal
72
Flow-Through Heater - Removal
73
Dishwasher with Flow-Through Heater
73
Temperature Limiter - Replacement
74
Flow-Through Heater with Seal
74
Microfine Filter - Exchange
75
Microfine Filter – Replacement
75
Waterproof System (WPS) - Removal
76
Pressing and Locking the Filter Assembly
76
Waterproof System (WPS) Restrictor - Exchange
77
Tilting the Flow Restrictor
77
Removing the Flow Restrictor
77
Water Inlet (Diverter) - Removal
78
Water Inlet - Removal
78
Water Softener - Operational Check
79
Water Softener Assembly- Removal
80
Drip Tray - Removal
80
Float Switch Housing - Removal
80
Float Switch - Removal
81
Float Switch Housing
81
Steam Condenser - Removal
82
Steam Condenser Components
82
Control Valve - Removal
83
Temperature Sensor (NTC) - Removal
83
Circulation Pump (M6) - Removal
84
Circulation Pump - Partition & Impeller Replacement
85
Components Within the Circulation Pump
85
Circulation Pump Housing - Exchange
86
Circulation Pump - Release with Tool
86
Placing the Circulation Pump Tool into
86
Engaging the Tool Prongs into the Circulation Pumps Impellers
86
Turning the Circulation Pump Tool
87
Heater Level Switch - Removal
88
Heater Level Switch and Circulation Pump
88
Drain Pump - Removal
89
Drain Pump - Replacement
89
Top solo Valve - Removal
90
Circulation Pump with Top solo Valve Attached
90
Overflow Level Switch - Removal
91
Releasing the Overflow Level Switch from the Connecting Strip
91
Sump - Removal
92
Self Tensioning Sump Clamp
92
Sump Clamp Without the Self Tensioning
92
Turbidity Sensor - Calibration
93
Turbidity Sensor - Removal
93
Fully Integrated (VI) Control Panel - Removal
94
Novotronic & Touchtronic Control Panel - Removal
95
Control Panel (Novotronic and Touchtronic Dishwashers)
95
Fixing Bracket - Removal
96
Removing the Fixing Bracket
96
Heating Relay & Power Relay - Removal
97
6 Fault Diagnosis
98
General Information
98
Programming and Service Mode - Features
98
Water Hardness Programming
98
Drying Options (as Applicable)
98
Water Intake Duration
98
Buzzer (as Applicable)
99
Fault Code (Retrieval)
99
Increase Temperature
99
With or Without Water Softener
99
2Nd Interim Rinse
99
Width of Unit
100
Flowmeter Count
100
Operating Hours
100
Programming / Service Modes - Access
100
Timing Charts - General Information
101
Wiring Diagrams - General Information
105
Timing Charts & Wire Diagrams
105
Fault Repair
106
No Drying or Drying too Slow
107
