G600 & G800 Electronic Dishwashers
5.35 Circulation Pump (M6) - Removal

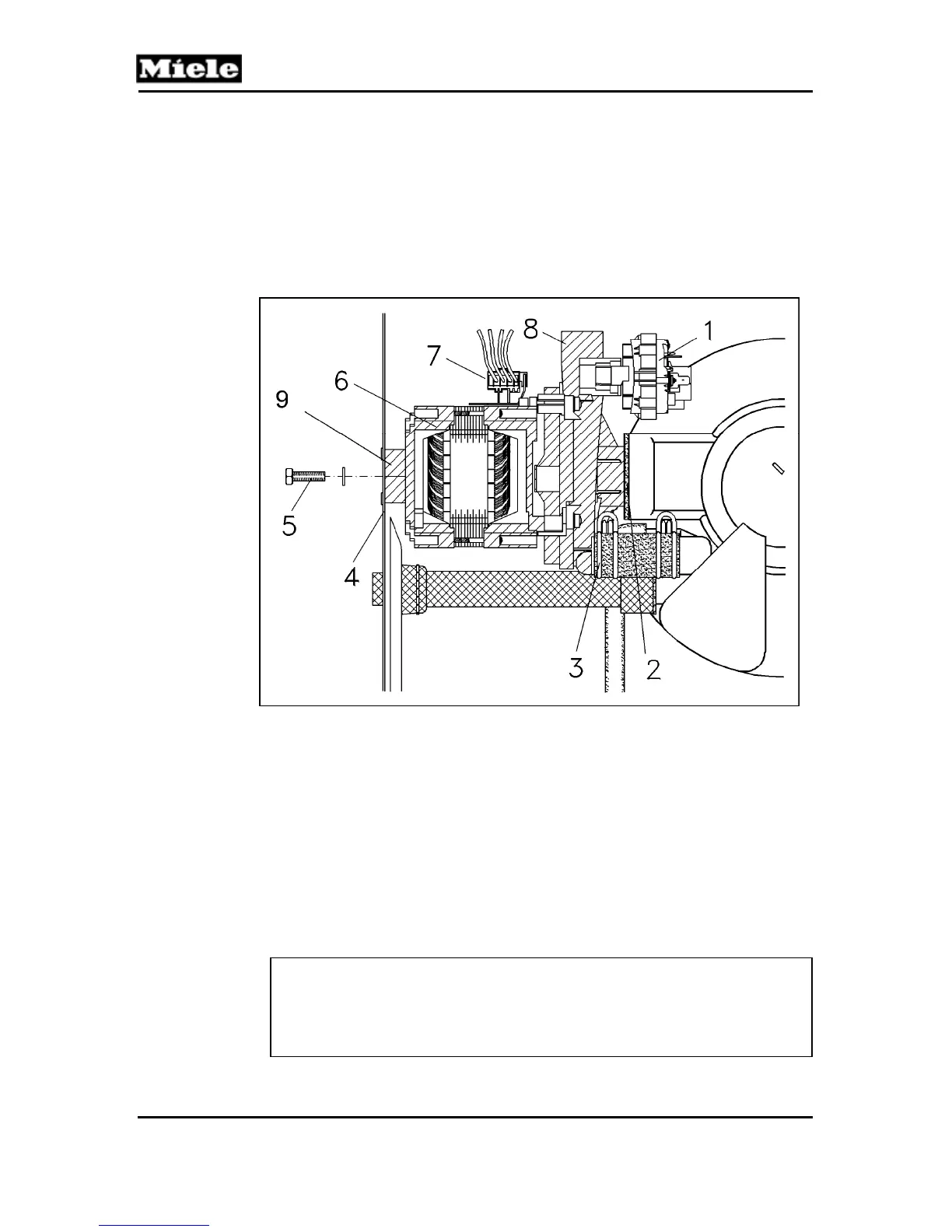

Refer to figure 5-28
1. Remove all water from the Sump.
2. Remove the Fixing Bolt (Item 5), from the Casing Rear Panel (Item
4).
Figure 5-28: Circulation Pump – Removal
3. Lay the dishwasher on its back.
4. Remove the Drip Tray (5.30).
5. Disconnect the Connection Plug (Item 7).
6. Remove the Heating Level Switch (5.39).
7. Release the Hose Clips (Items 3 and 8).
8. Press the Rear Casing out slightly, to remove the Spacer (Item 9).
9. Loosen the Circulation Pump (Item 6), and remove it.
10. When refitting, ensure the Seal (Item 2), is seated correctly.
Service Tip
The use of a small amount of Rinse Aid may assist in getting the
seal positioned correctly. Do not use liquid detergent, this will
cause an oversudsing condition.
