Technical Information
G600 & G800 Electronic Dishwashers
1.6.2 Incognito Series
1 Temperature Sensor, R30
2 Float Switch, B8/3
3 Level Switch - Heating, B1/10
4 Relay - Mains, 1K1/6
5 Relay - Heating, 1K1/1
6 Fan, M2
7 Interference Suppression Capacitor, Z2
8 Steam Condenser (not all models)
9 Rinse Aid Dispenser, Y50
10 Detergent Dispenser, Y51
11 Flow Through Heater, R1
12 Temperature Limiter, 1F2 and 2F2
13 Switch - Door Contact, S24
14 Electronic
15 WaterProof System (WPS), Y2
16 Door Switch, S5
17 Water Intake Mixer
18 Electronic
19 Reed Switch - Rinse Aid, B8/1
20 Capacitor - Circulation Pump, C6
21 Water Control Valve, Y5
22 Terminal Block, X3/1
23 Flow Meter, B3/4
24 Circulation Pump, M6
25 Condenser Control Valve, Y6 (if equip. w #8)
26 Water Softener (Resin Tank)
27 Water Softener Valve, Y38/1
28 Reed Switch - Reactivation Salt Indicator, B8/2
29 Circulation Valve, Y27
30 Drain Pump, M8
31 Level Switch - Overflow, B1/2

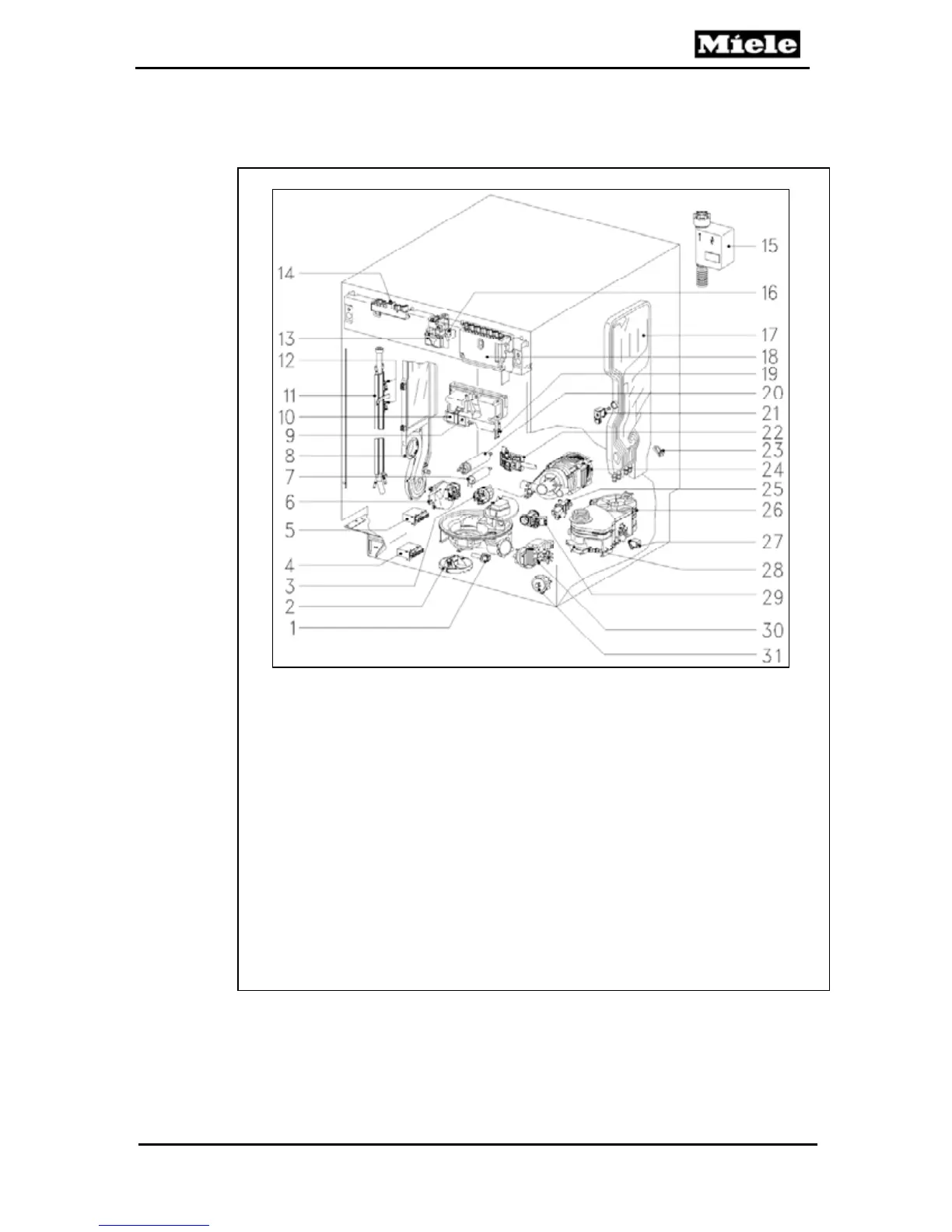

Figure 1-10: Component Overview – Incognito (Vi) Series
