Cleaning and care
68

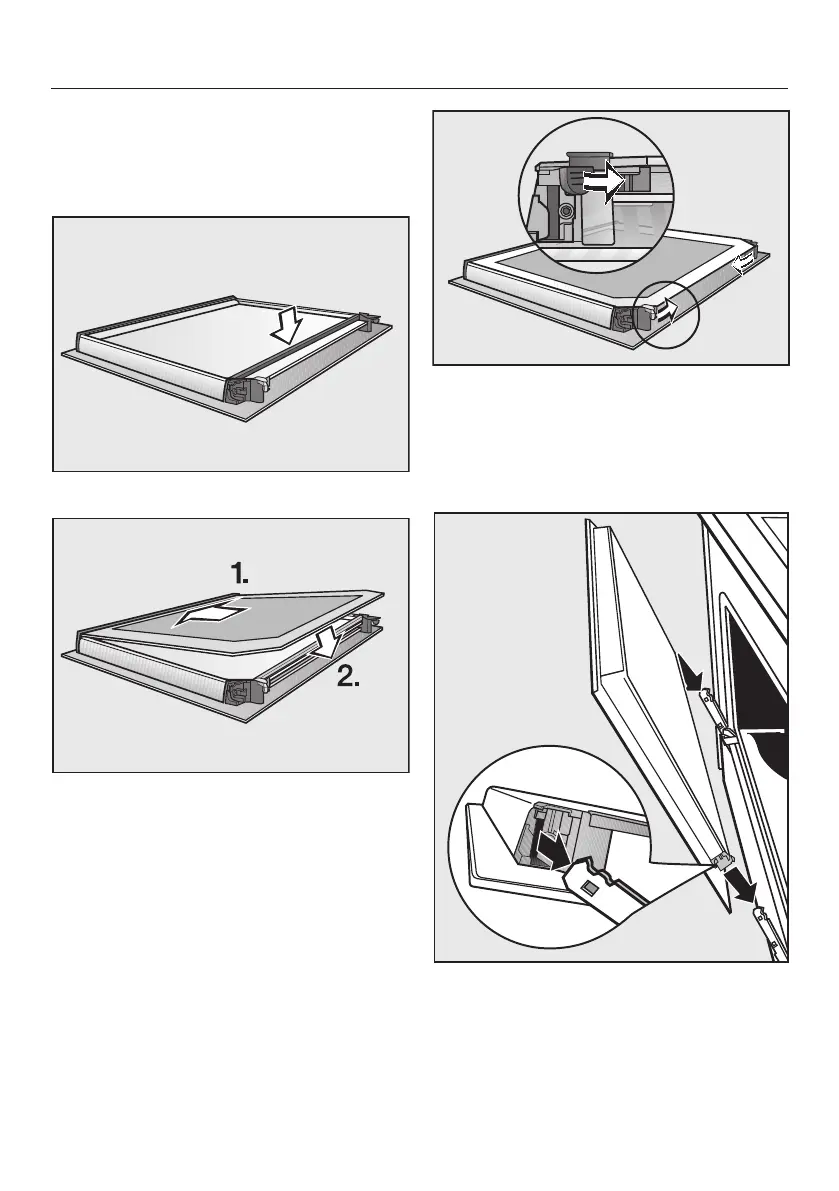

 Refit the upper of the two middle
panes in such a way that the material
number is legible (i.e. not reversed).
The pane must rest on the retainers.
 Refit the seal.
 Push the inner pane with the matt
printed side facing downwards into
the plastic strip and place it between
the retainers.
 Flip both the glass pane retainers
inwards to close them.
The door is now reassembled.
Fitting the door
 Hold the door securely on both sides
and carefully fit it back into the hinge
retainers.
Make sure that you fit the door
straight.
 Open the door fully.

Miele H 2861 BP Specifications

General

Grill	Yes
Oven size	Large
Oven type	Electric
Cleaning type	Pyrolytic
Number of ovens	1
Total oven power	- W
Full surface grill	-
Oven thermostat range	30 - 300 °C
Number of shelf positions	5
Total oven(s) interior capacity	76 L
Door hinge	down
Cord length	1.5 m
Control type	Rotary
Product color	Stainless steel
Control position	Top front
Appliance placement	Built-in
Control panel material	Glass
Clock type	Electronic
Timer type	Digital
Timer modes	Cooking time
Current	16 A
Connected load	3600 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A+++ to D
Energy efficiency index (EEI)	81.7
Energy consumption (conventional)	0.71 kWh
Energy consumption (forced convection)	1.1 kWh
Lamp type	Halogen
Lamps quantity	1 lamp(s)

Weight and Dimensions

Depth	568 mm
Width	595 mm
Height	596 mm
Weight	47000 g
Installation compartment depth	550 mm
Installation compartment width (min)	560 mm
Installation compartment height (min)	590 mm
