Mindray A7 Service Manual

Electrical Flow Control System Theory of Operation
1 - 88 046-006272-00 A7™ Service Manual
1.8.5 Nitrous Oxide Flow Sensor Interface Board

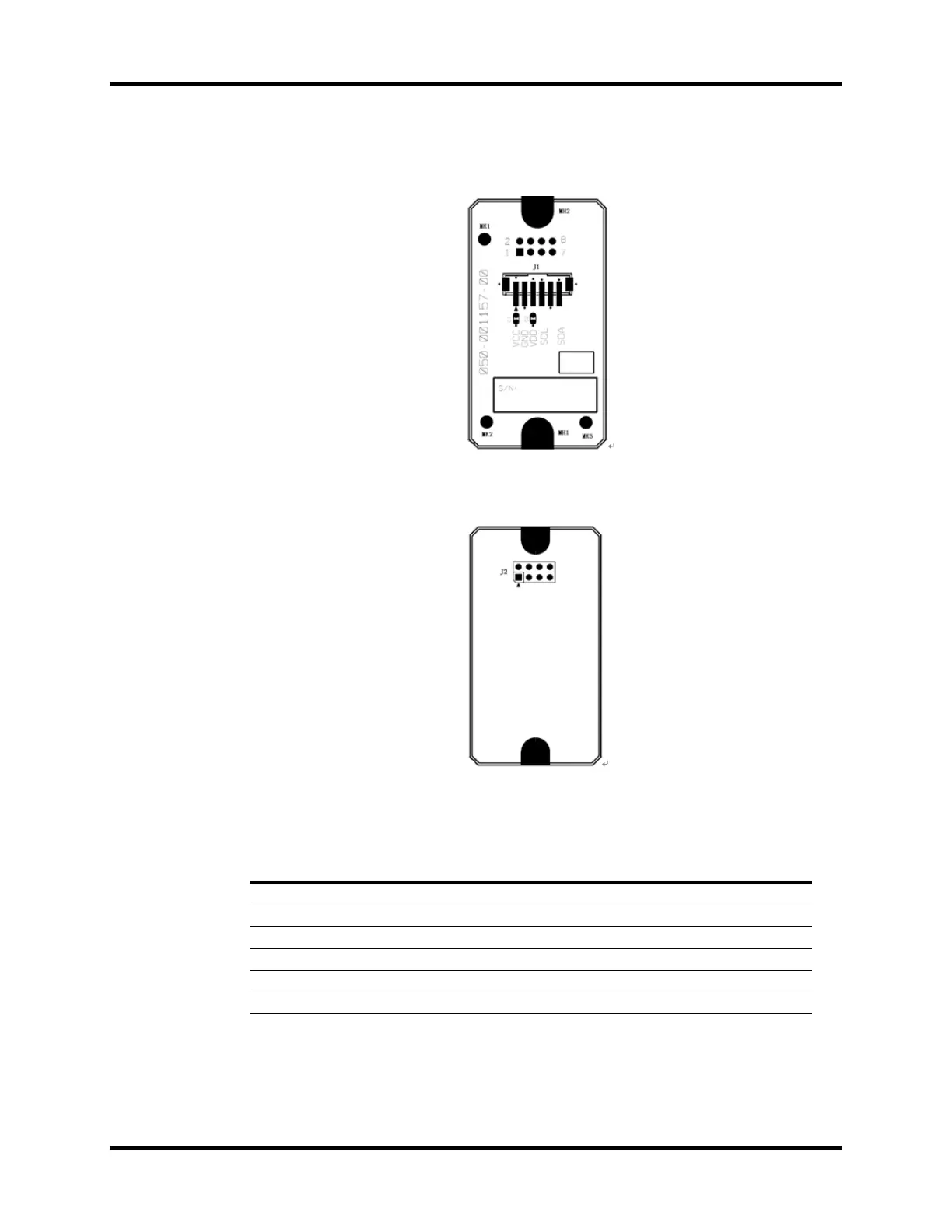

FIGURE 1-93 Nitrous Oxide Flow Sensor Interface Board, Top View
FIGURE 1-94 Nitrous Oxide Flow Sensor Interface Board, Bottom View
Nitrous Oxide Flow Sensor Interface Board Interface, J1
PIN NAME FUNCTION
1 VCC 5 V Power Supply
2GND Ground
3 VDD 3.3 V Power Supply
4 N2O_SCL N2O Flow Sensor IIC Clock Signal
5GND Ground
6 N2O_SDA N2O Flow Sensor IIC Data Signal
