A7™ Service Manual 046-006272-00 2 - 3
Installation Guide Assembly
2.2 Assembly
NOTE: The Anesthesia Machine is matched with its Breathing System Block via
calibration of its Flow Sensors. If the Breathing System Block is
removed, ensure that it is reinstalled on its matching Anesthesia
Machine. If a different Breathing System Block is reinstalled, then the
Flow Sensors must be recalibrated.
NOTE: The breathing system will have a serial number label on it. On the back
of the machine, next to the serial number label, there is a serial number
label of the breathing system that the unit was calibrated and shipped
with.
2.2.1 Unpacking and Setup
1. When the A7 is delivered, IMMEDIATELY inspect the box for any damage.
a. If there is NO damage and ALL tip indicators on the box exterior are intact, then sign and
date the bill of lading or airway bill to indicate safe receipt of the anesthesia system.
b. If there is DAMAGE or ANY of the tip indicators on the box exterior have activated, then
conditionally accept the delivery and clearly describe the damages on the bill of lading or
airway bill. BOTH the carrier and recipient must sign and date the bill of lading or airway bill.
Save all damaged factory packaging until further instructed by Mindray. The receiver should
immediately contact Mindray Customer Service at (800) 288-2121 or (201) 995-8000.
NOTE: When unpacking the unit, keep as much of the plastic covering on the
unit as possible. When all parts are unpacked, return the packing
material to its original box. Place the smaller box inside the larger box.
2. Cut, remove, and discard the white shipping straps from the box.

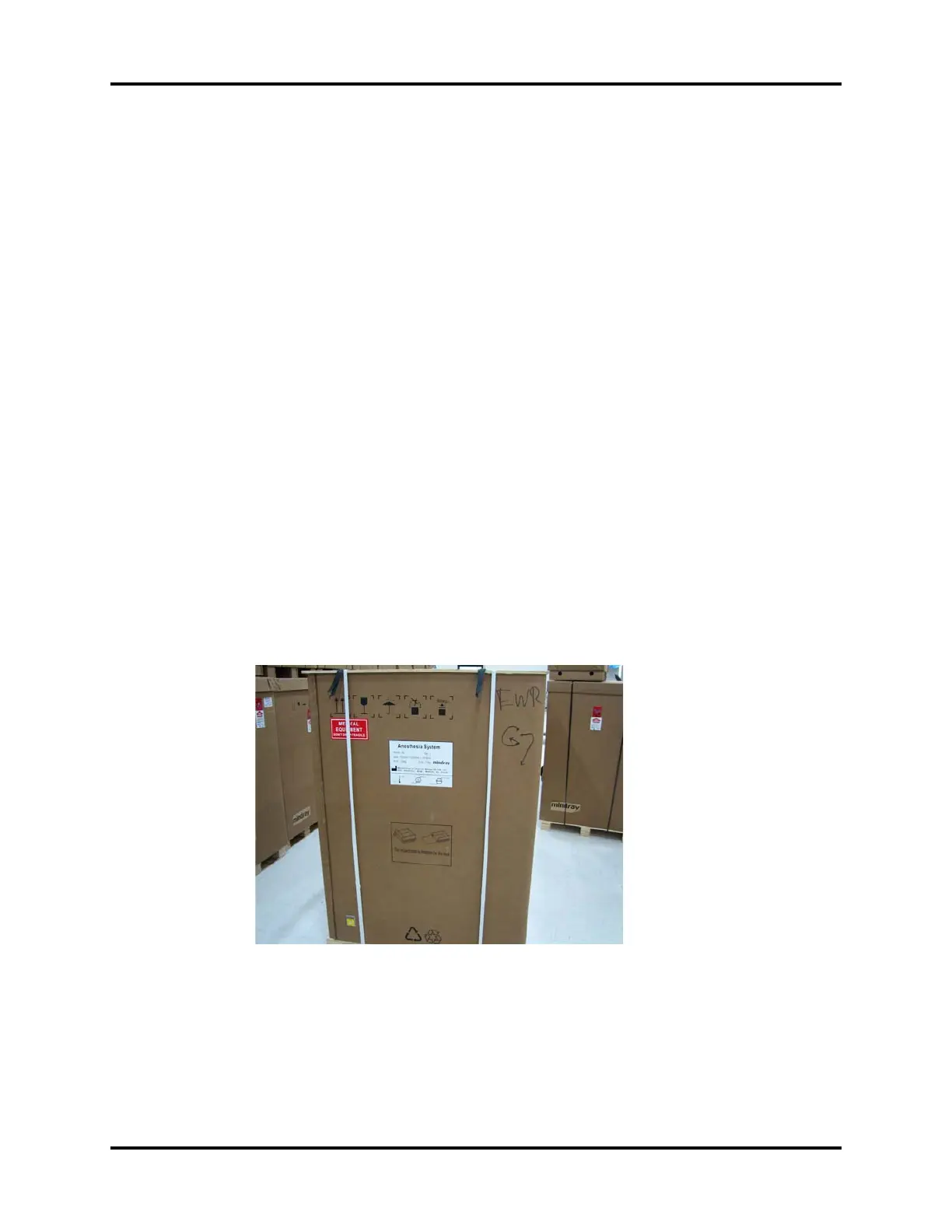

FIGURE 2-1
3. Pull the box top straight up off the box and place on the floor near the unit. The box top will be
used later as a ramp when rolling down the A7 onto the floor.
