A7™ Ser
vice Manual
046-006272-00
6 - 79
Repair and Disassembly
Disassemble the Breathing Sys
tem
6.3.8
Remov
e the Patient Cir
cle Assembly
1.
Remove the C
O2 B
ypass assembly as
per sec
tion “Remove the C
O2 Bypass Assembly
” on
page
6-76..

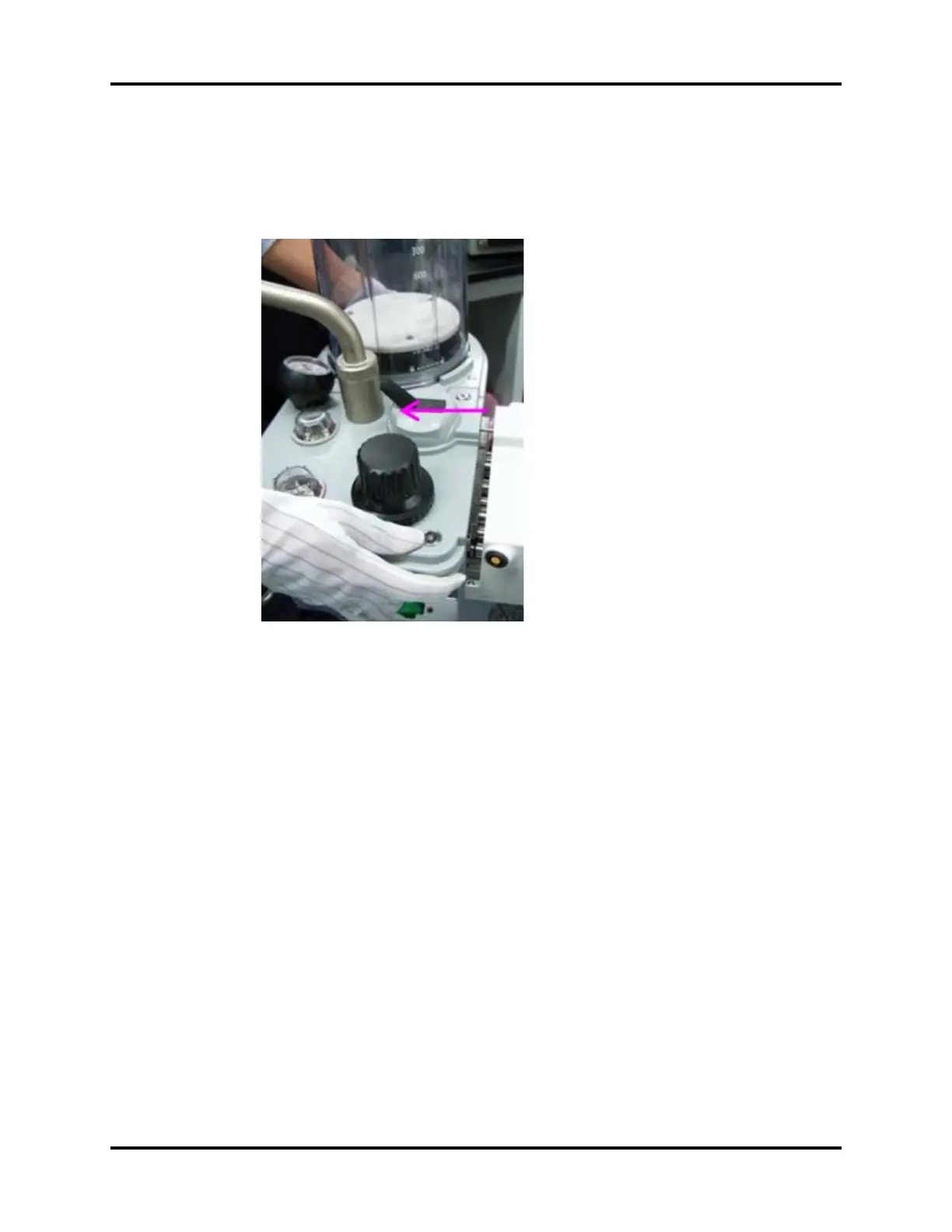

2.
Pull the
patient circle assembly away fr
om the rotating block assembly
.
FIGURE 6-168
436
438
