A7™ Service Manual 046-006272-00 6 - 29
Repair and Disassembly Disassemble the Assemblies

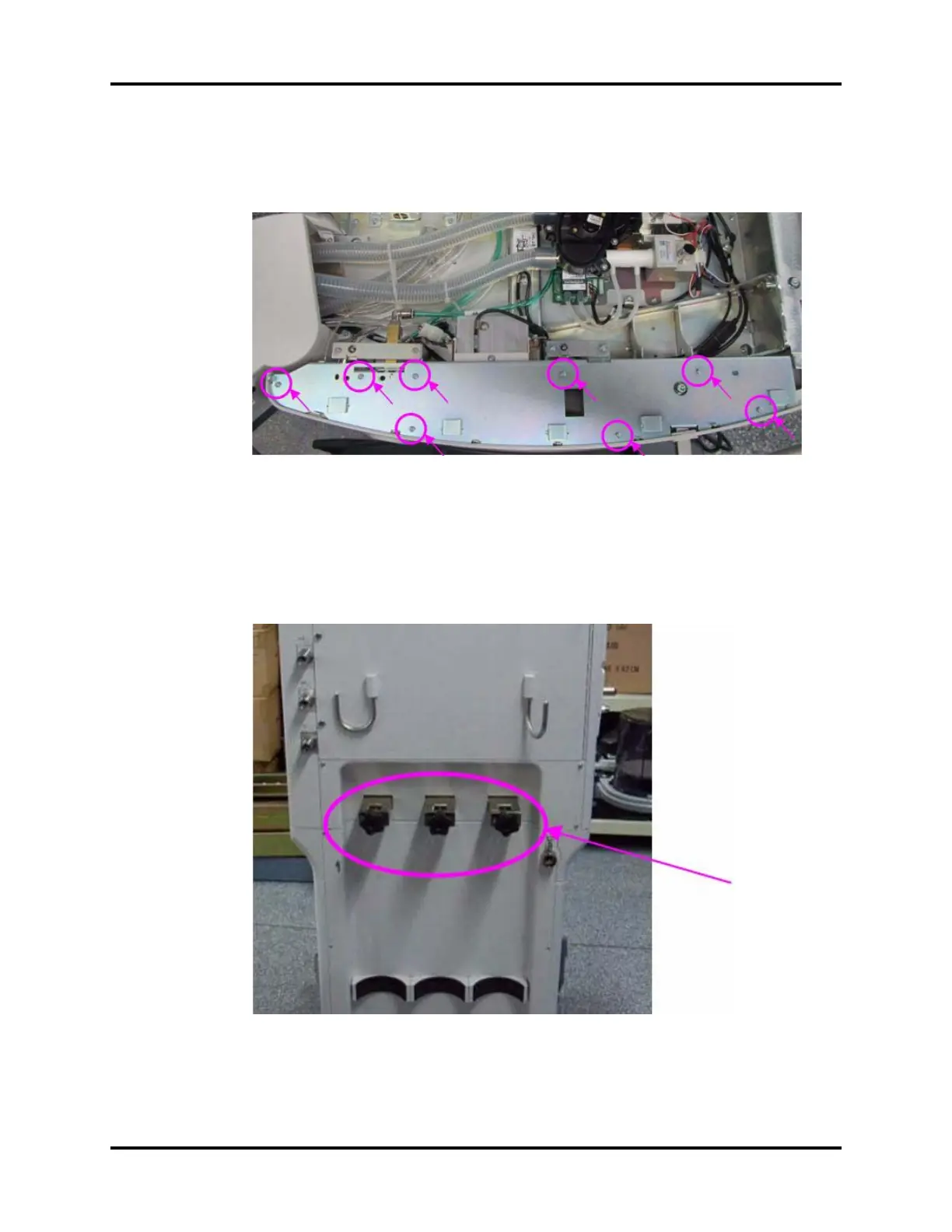

6.2.3.3 Remove the Metal Cover Plate
1. Remove the work surface cover plate.
2. Unscrew the eight screws on the metal cover plate to remove the cover plate.
FIGURE 6-55
6.2.3.4 Remove the Rear Cover Plate Assembly
1. Open the service doorand refer to “Open the Service Door” on page 6-3.
2. Unplug the AGSS transfer tube connecting to the exhaust tube and refer to “Remove the AGSS
Assembly” on page 6-61.
FIGURE 6-56
3. “Remove the AGSS Assembly” on page 6-61.
To Next Page
