BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual 7-27
ITEM No. Description Qty FRU Part No.
5 Conductive foam 2.0*7.0mm 0.046m /
6 Computer module Celeron J1900 1 023-001497-00
7 iView support board PCBA 1 051-003029-00
8 Small cross recessed pan head screws, 4 /
9 SSD 128GB MLC mSata 1 023-001329-00
7.4 External Satellite Module Rack (SMR)

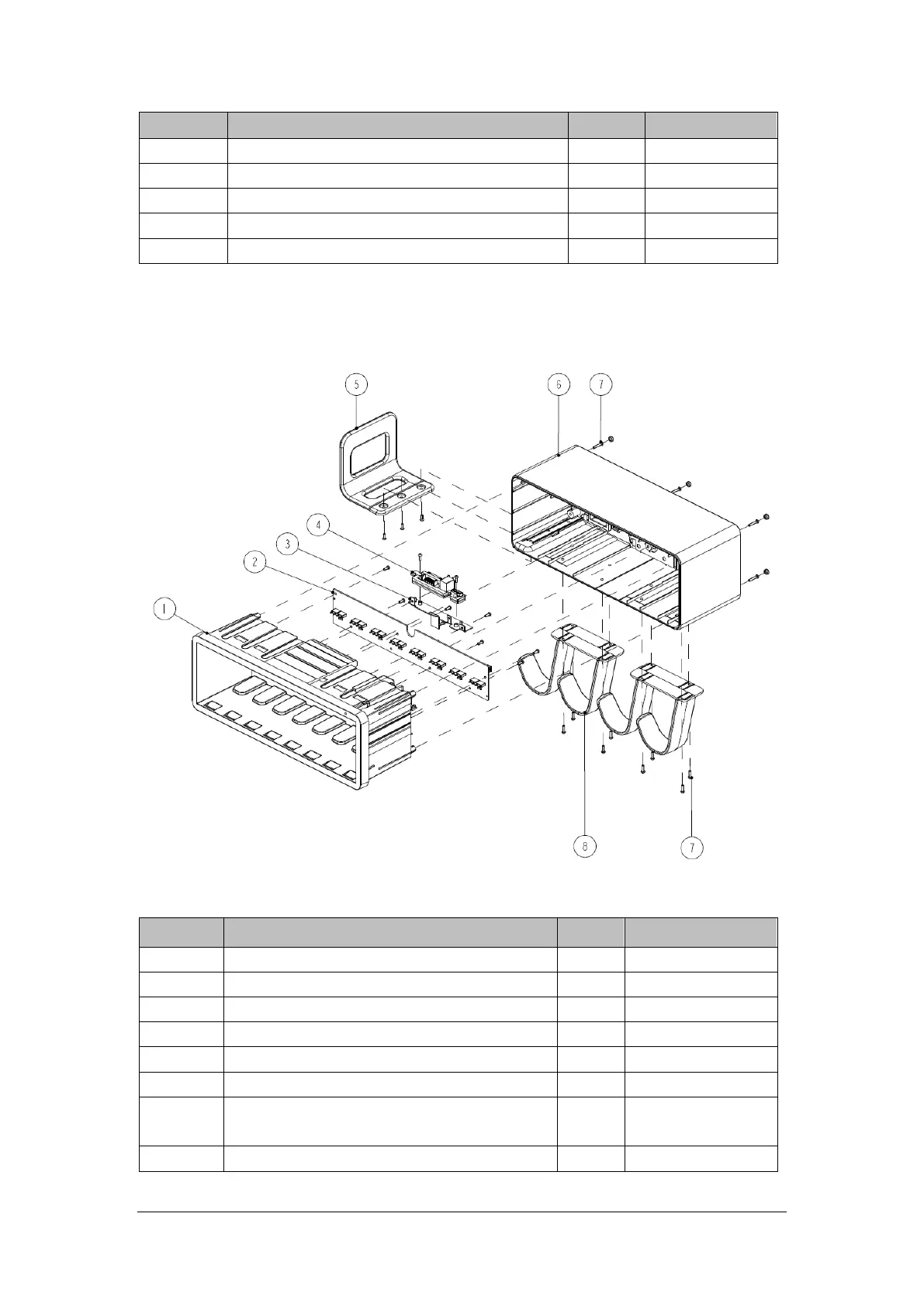

7.4.1 Exploded View
7.4.2 Parts List
ITEM No. Description Qty FRU Part No.
1 Front housing silkscreen of module rack 1 043-008617-00
2 8-slot PCBA of external module rack 1 115-054923-00
3 Interface board fixing sheet metal 1 /
4 Interface board PCBA of external module rack 1 051-001908-00
5 Module rack cuff bracket 1 115-033914-00
6 Rear housing silkscreen of module rack 1 043-008616-00
7
Cross recessed pan head screw GB/T818-2000 M3X16
plated with green color zinc
1 /
9 Module rack cable hook 1 115-033911-00
