7-4 BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual
ITEM No. Description Qty FRU Part No.
5 MK alarm cap 1 049-001135-00
6 Alarm LED and Light Sensor Board PCBA 1 051-002693-00
7 Cross recessed pan head screws PT3X8 4 /
8 N12 front shell plate cable 1 009-006396-00*
9 N12 Mainboard to LCD cable (NLT) 1 009-006409-00*
10 Power Switch and Indicate LED Board PCBA 1 051-002711-00
11 MK power button (P+R) 1 043-007956-01
12 Earth plate (N12) 1 042-018667-00*
13 Conductive cloth pad 0.08m /
14 CORE O.D=21.5mmI.D=9.5mm 1 /
*: included in No.1 N12-Sharp front housing assembly (FRU) (115-044503-00)
7.1.4 N12 Rear Housing

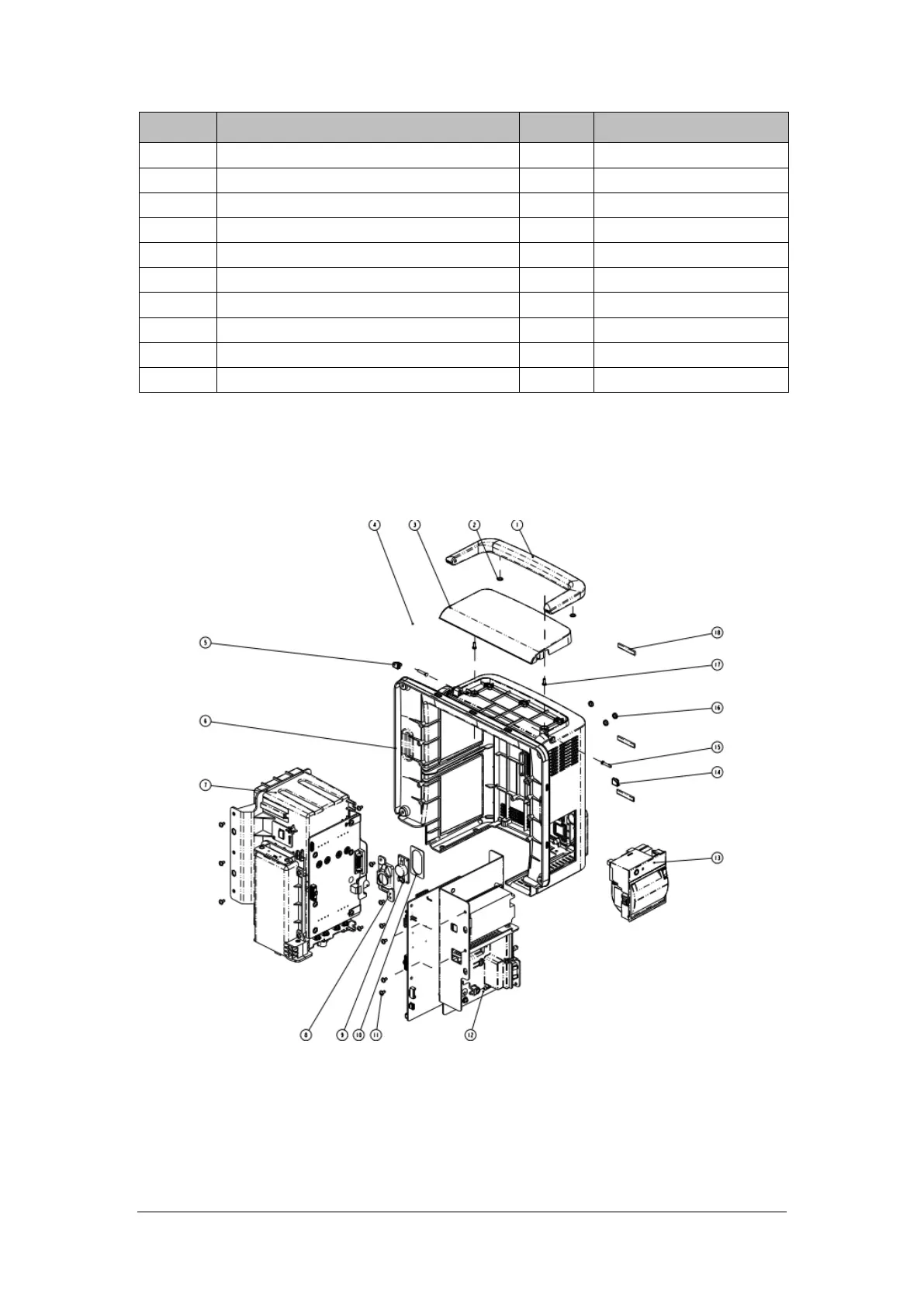

7.1.4.1 Exploded View
