BeneVision N17/BeneVision N15/BeneVision N12 Patient Monitor Service Manual 7-1
7 Parts
This chapter lists the exploded views and material codes of the parts including the monitor's main unit,
SMR and parameter module. It helps the engineer to identify the parts during disassembly of the patient
monitor and spare parts replacement.
7.1 N12 Parts
7.1.1 N12 Whole Unit

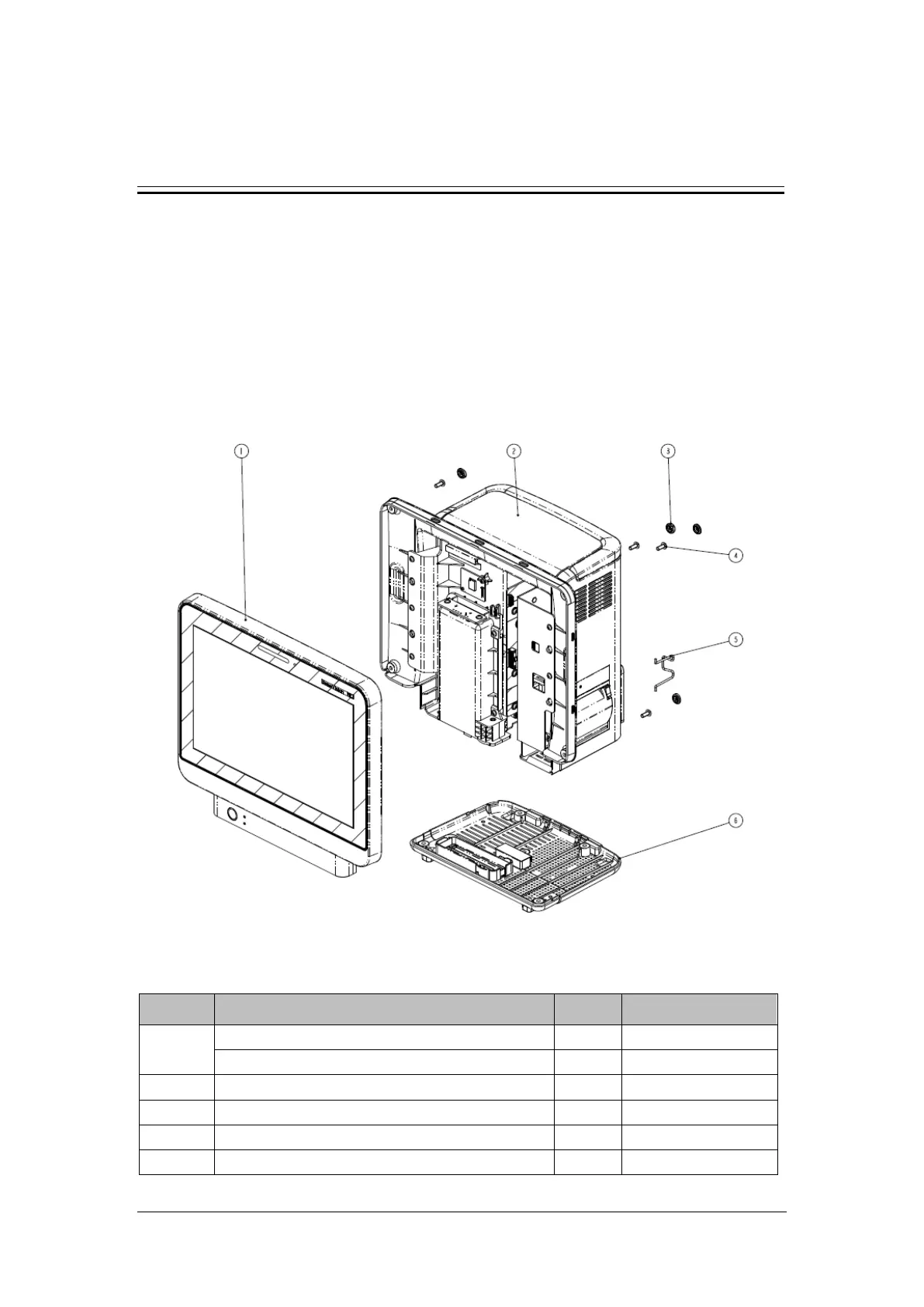

7.1.1.1 Exploded View
7.1.1.2 Parts List
ITEM No. Description Qty FRU Part No.
1
N12-NLT front housing assembly (FRU) 1 115-044502-00
N12-Sharp front housing assembly (FRU) 1 115-044503-00
2 N12rear housing assembly (with TDS/BNC, with DVI) 1 /
3 N12 screw cover / 049-001226-00
4 Cross recessed pan head screw, GB/T818-2000 M4X30 / /
5 AC inlet hook 1 9211-20-87369
