5-6

Comfort controls

Heater without air conditioning function

(if

so equipped)

N00737700031

The heater can only be used while the engine is running.

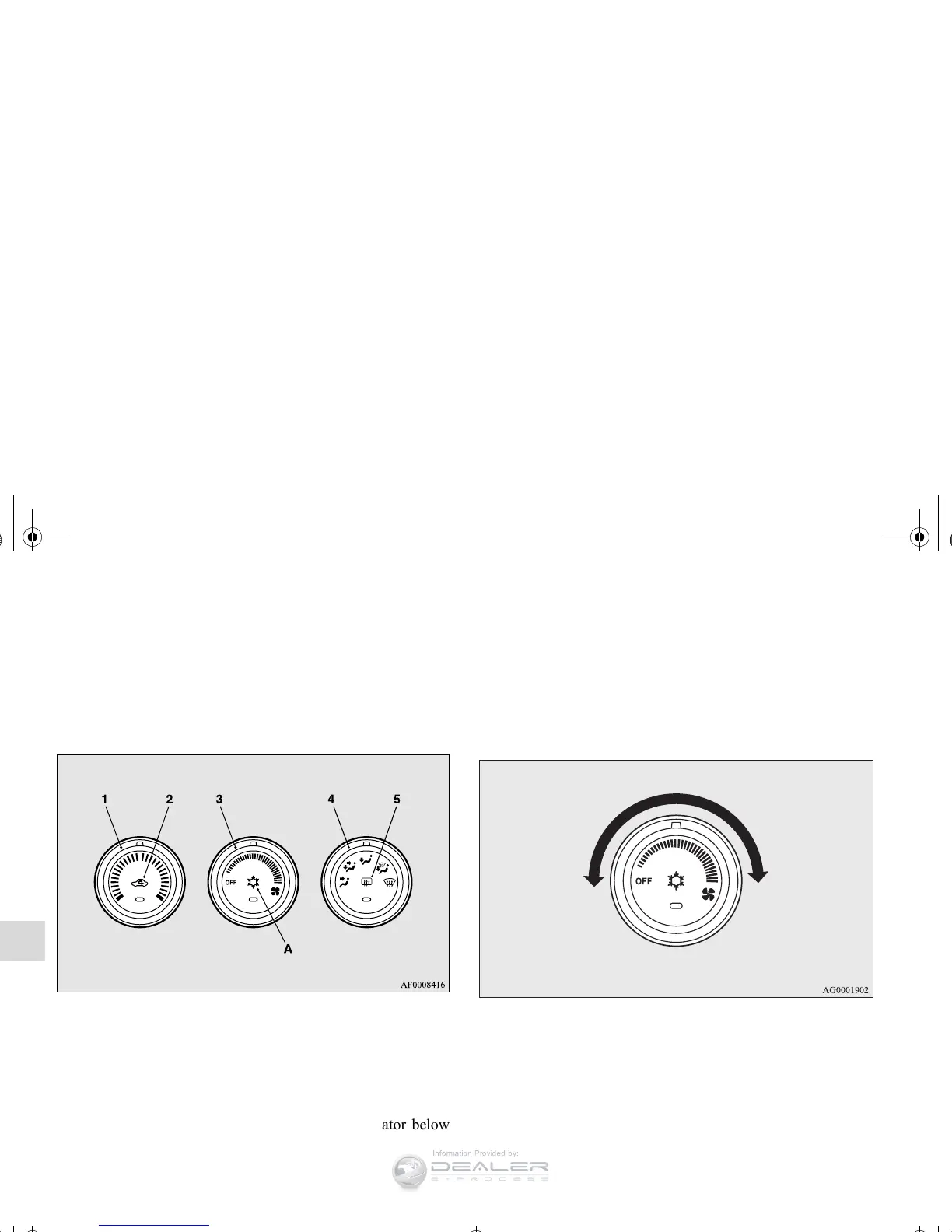

Control panel

N00737800029

OTE

● Button (A) is not available for use. The indicator below

the button doesn’t come on even if it is pushed.

Blower speed selection dial

N00737900020

When the ignition switch is in the “ON” position, select the

blower speed by turning the blower speed selection dial.

Turning the dial clockwise will increase the blower speed;

turning the dial counterclockwise will decrease it. When the

dial is set to the “OFF” position, all fan-driven airflow will

stop.

1- Temperature control dial

2- Air selection switch

3- Blower speed selection dial

4- Mode selection dial

5- Electric rear window defogger switch → P. 3-254
