Vehicle care and maintenance
7
*- Fusible link
● Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.
● The table above shows the main equipment corresponding
to each fuse.

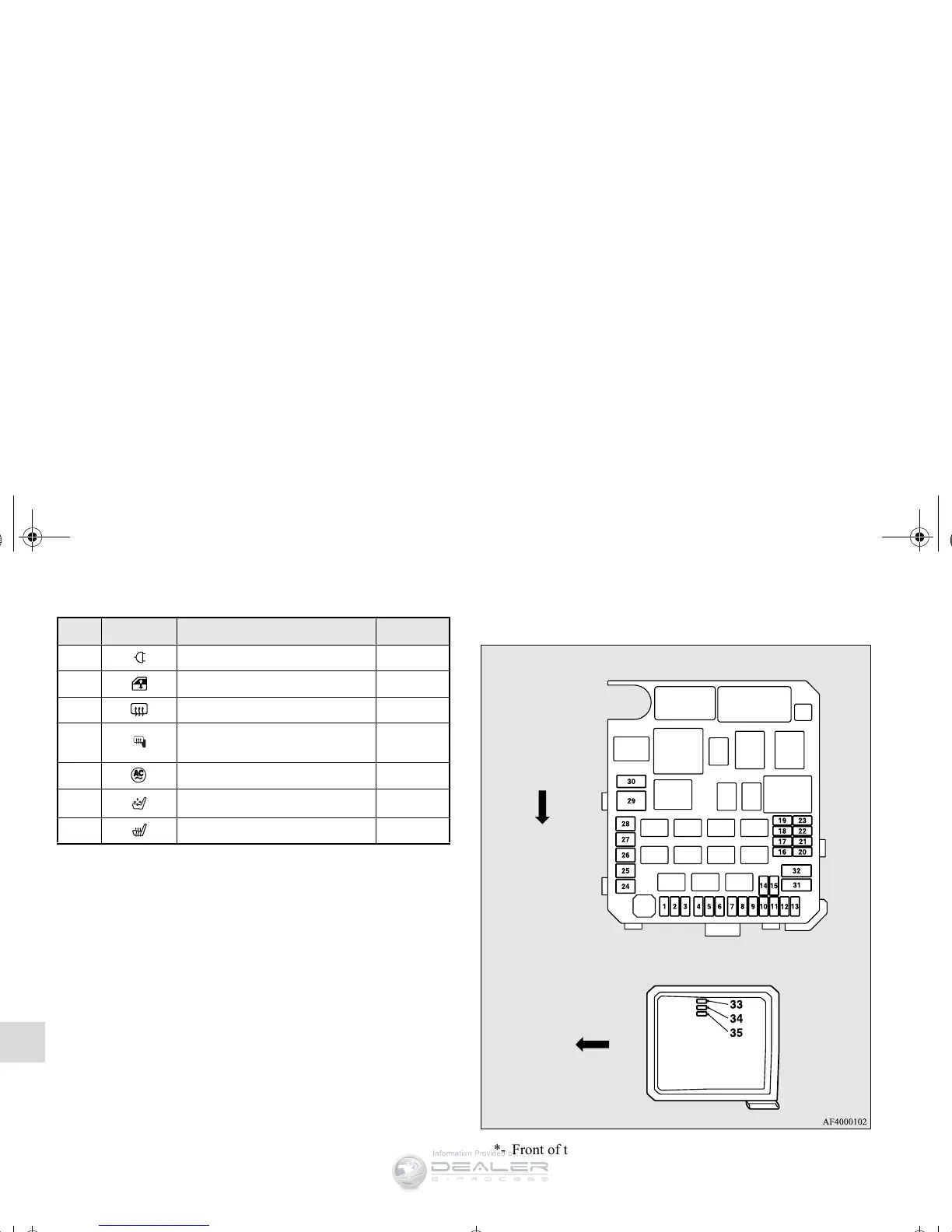

Engine compartment fuse location table
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger 30 A*
22
Heated
outside rearview mirrors
7.5 A
23 115V Power outlet 15 A
24 Power seats 25 (20) A
25 Heated seats 30 A
No. Symbol Electrical system Capacity
*- Front of the vehicle
Engine compartment fuse location
Behind the fuse block cover
*
*
