Vehicle care and maintenance
7
Fuses
N00942800801
Fuse block location
To prevent damage to the electrical system from short-circuit-
ing or overloading, each individual circuit is equipped with a
fuse. The fuse blocks are located in the passenger compartment
and in the engine compartment.
Passenger compartment

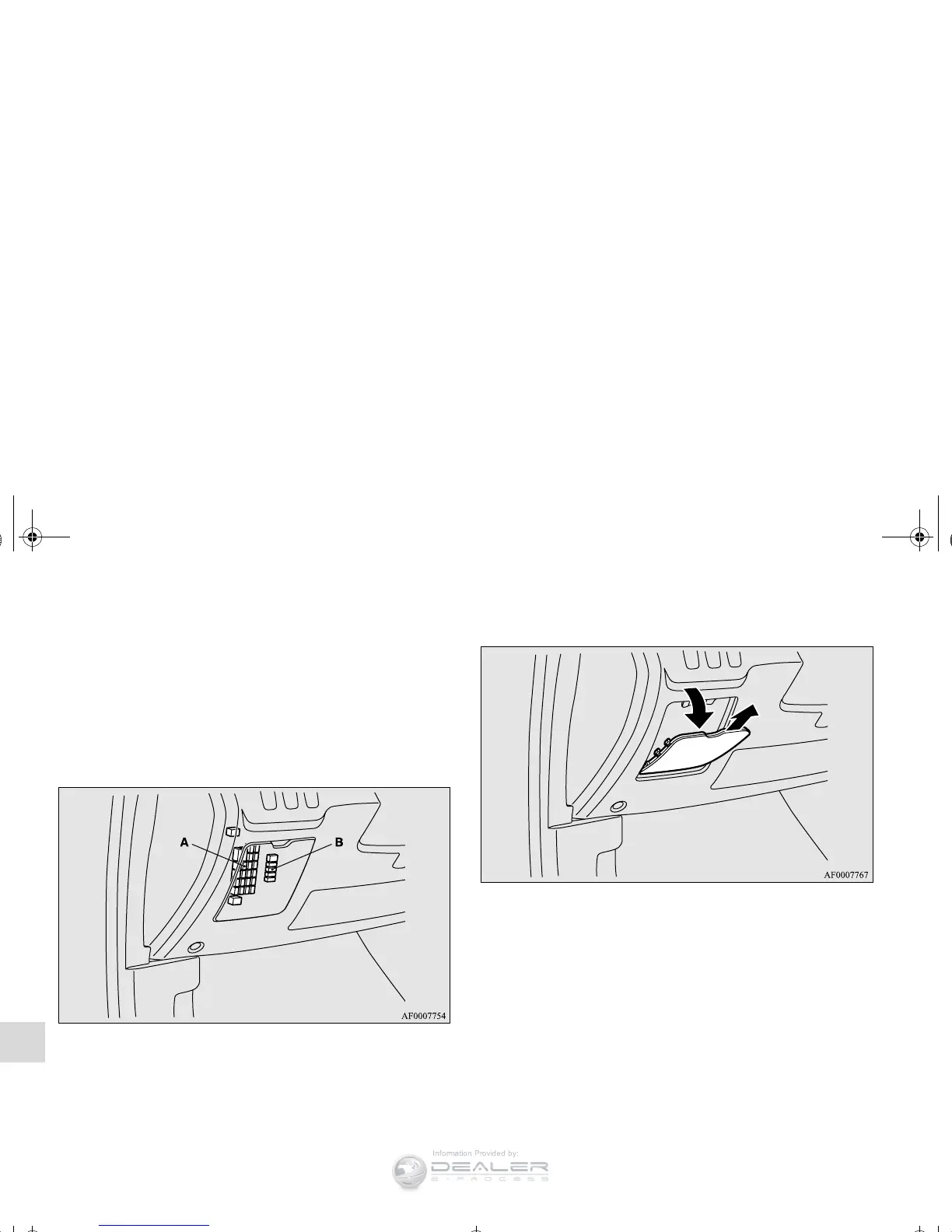

The fuse blocks in the passenger compartment are located
behind the fuse lid on the driver’s side as shown.
1. Open the fuse lid and pull to remove it.
A- Main fuse block
B- Sub fuse block
