Vehicle care and maintenance
7

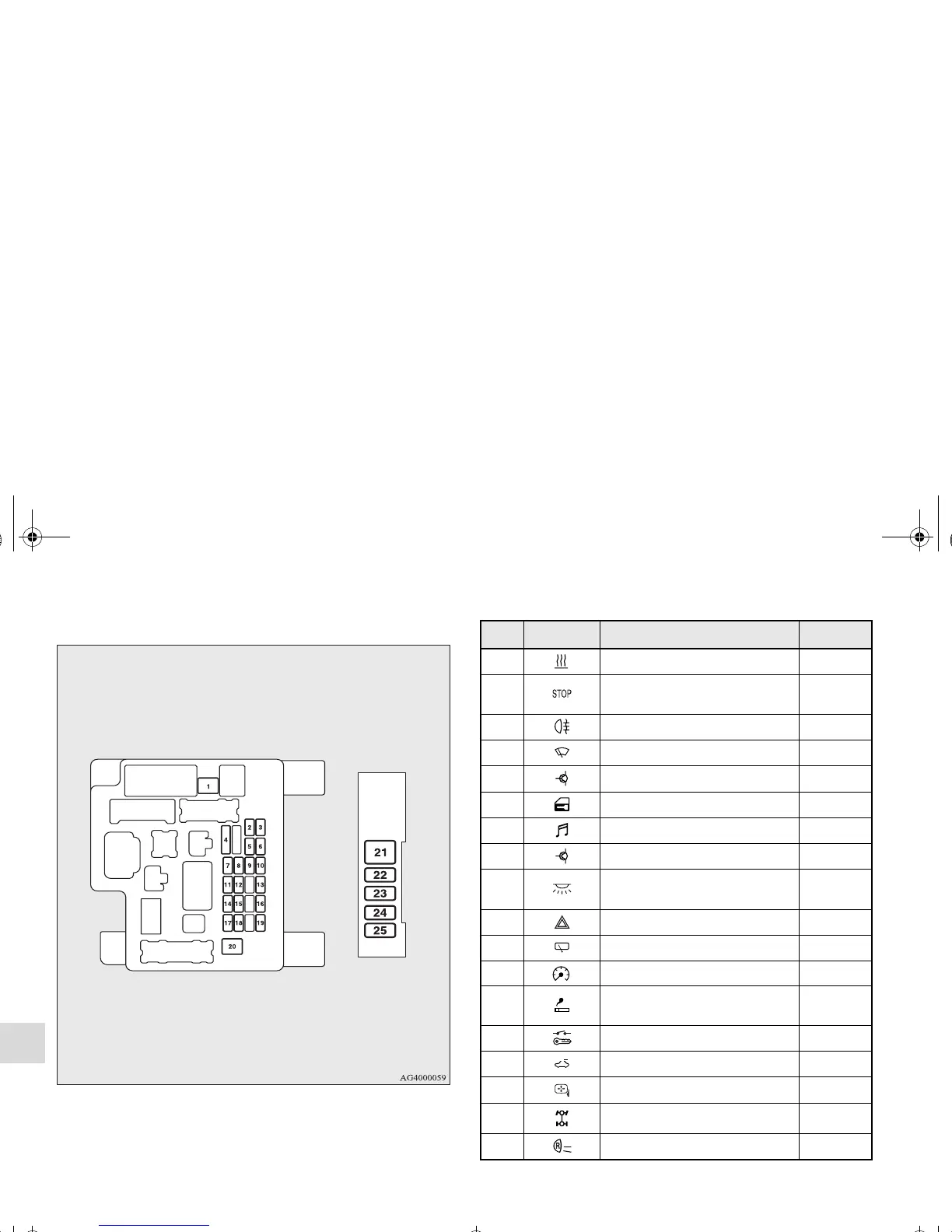

Passenger compartment fuse location table
Passenger compartment fuse location
Sub fuse block
Main fuse block
No. Symbol Electrical system Capacity
1 Heater 30 A*
2
Stop lights
(Brake lights)
15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional 10 A
6 Door locks 20 A
7 Radio 15 A
8 Control unit relay 7.5 A
9
Interior lights
(Dome lights)
15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges 7.5 A
13
Cigarette lighter/Accessory
socket
15 A
14 Ignition switch 10 A
15 Sunroof 20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
18 Back-up lights 7.5 A
