5-24 Motorcycle Radio Installation Transceiver and Cabling Installation

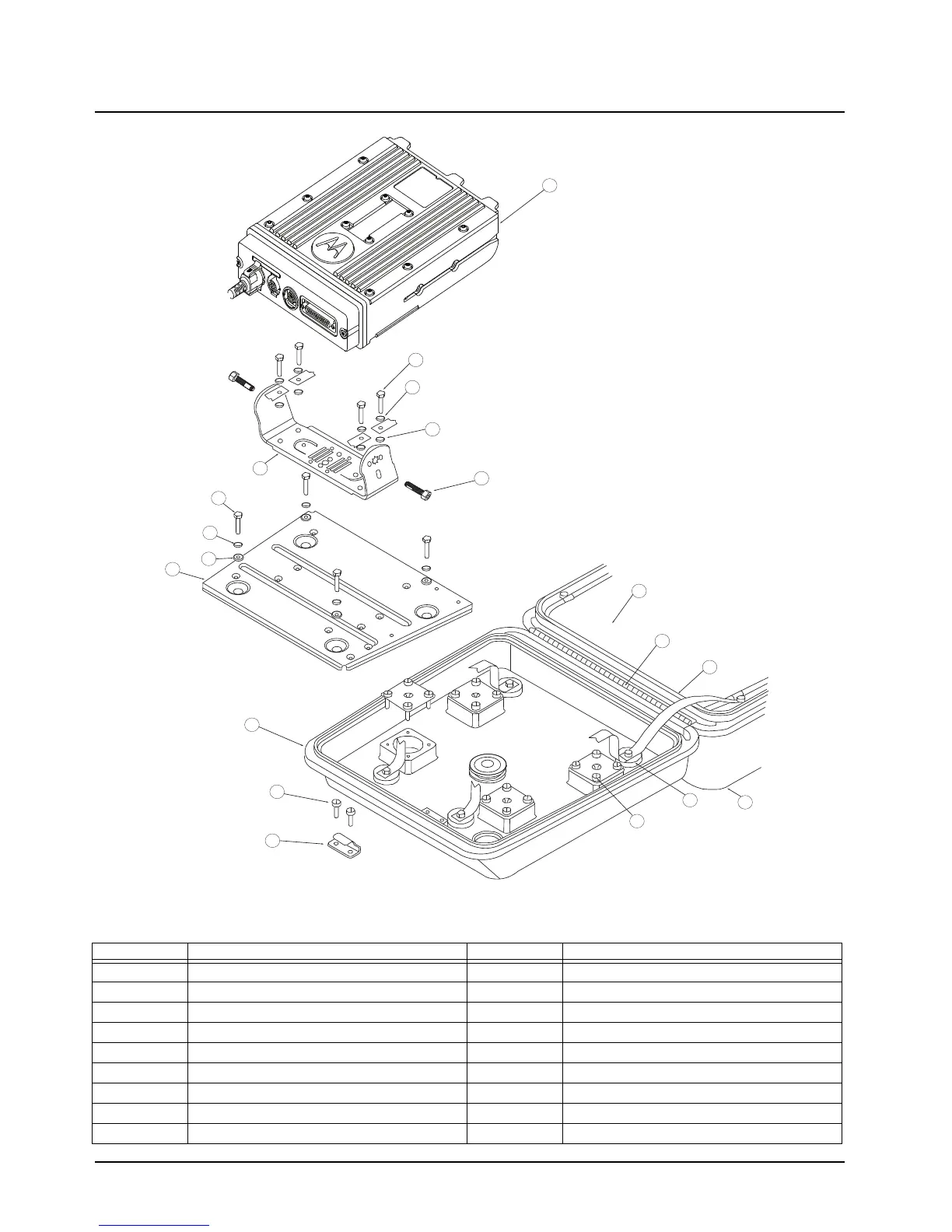

Figure 5-17. Installing the Transceiver
Table 5-1. Transceiver Installation Parts List
Item No. Description Item No. Description
1
Lock washer
10
Ground shield plane
2
Flat washer (8 used)
11
Top cover
3
Screw
12
Gasket
4
Screw
13
Hinge
5
Grommet
14
Enclosure mounts
6
Screw
15
Transceiver
7
Lock catch
16
Screw
8
Radio mounting plate
17
Trunnion
9
Bottom housing
18
External tooth lock washer (8 used)
11
1
10
15
7
3
6
8
12
13
4
2
9
17
16
14
18
2
6
