4 DIAGNOSTICS
38
Current Channel Status
This diagnostic displays a status of t
he last attempted tuned channel on the in-band
stream. The channel type determines the st
atus display
.

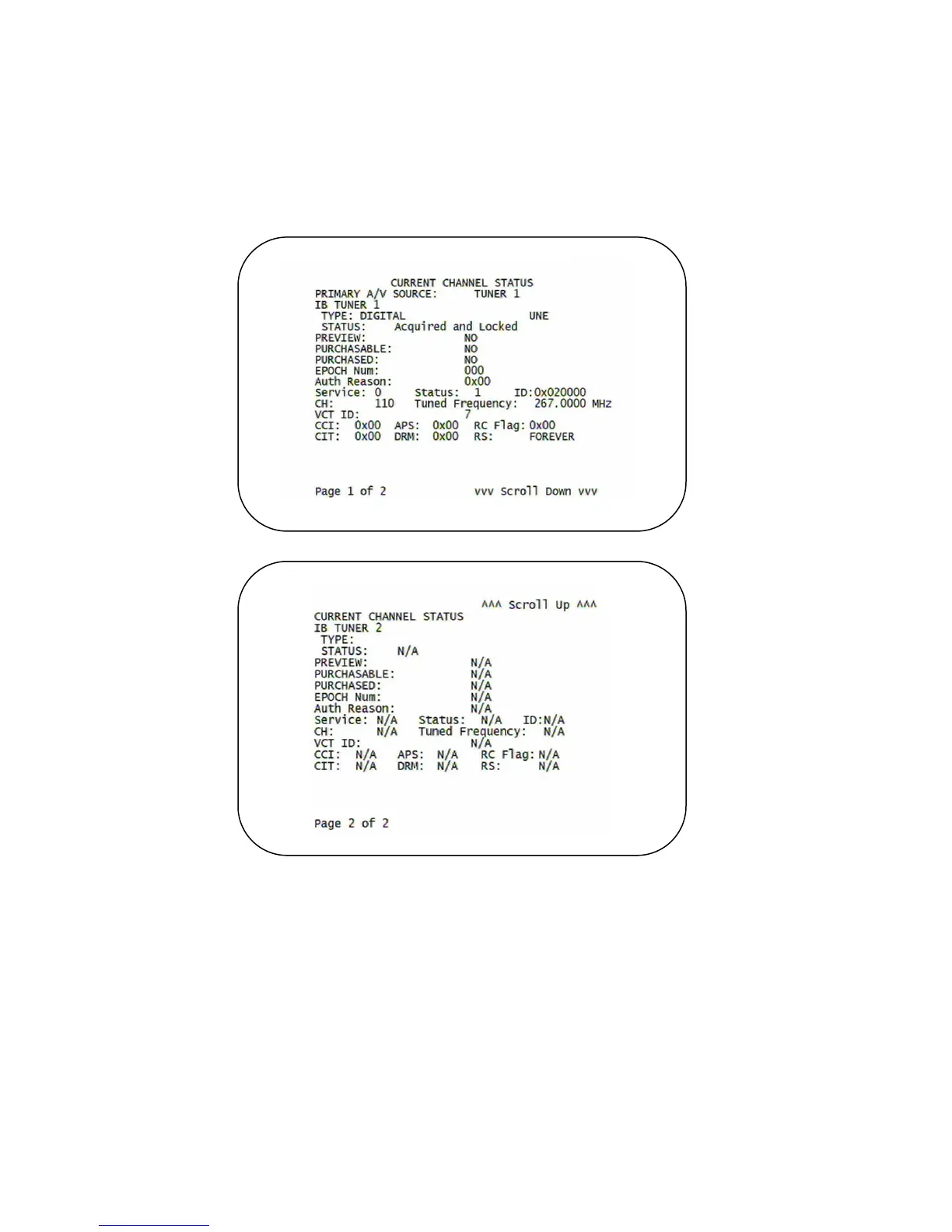

This is an example for an analog channel:
This is an example for a digit
al channel:
47
49
Table of Contents
Default Chapter
7
Table of Contents
7
1 Introduction
11
Features
11
Tuners
11
Figure 1-1 Front and Rear Views
11
Standard Audio/Video Features
12
Standard DVR Functionality
12
Standard Data Features
13
Standard Miscellaneous Features
13
Table 1-1 DVR Recording Time Guidelines
13
If You Need Help
14
Calling for Repairs
14
2 Overview
15
Front Panel
15
Front Panel Format Button
15
Figure 2-1 Front Panel
15
Table 2-1 Front Panel
15
Rear Panel
17
Figure 2-2 Rear Panel
17
Table 2-2 Rear Panel Connections
17
Cablecard
18
Alert Screens
18
Cablecard Removal
18
Unsupported Cablecard Insertion
18
Invalid Cablecard Security Certificate
19
Invalid Cablecard-DCH6416 Pairing
19
3 Installation
21
Before You Begin
21
Clearing the Hard Drive
21
Video Connection Options
22
Audio Connection Options
22
Installation Overview
23
Cabling to an HDTV for Video
24
Figure 3-1 Cabling to an HDTV
24
Cabling to an HDTV and an A/V Receiver
25
Figure 3-2 Cabling to an HDTV and an A/V Receiver
25
Cabling to a Standard-Definition TV and an A/V Receiver
27
Figure 3-3 Cabling to a Standard-Definition Stereo TV
27
Cabling to a Standard-Definition TV and Audio Receiver
28
Figure 3-4 Cabling an Audio Receiver
28
Data Device Connections
29
Figure 3-5 Sample Data Devices You Can Connect to the DCH6416
29
Operational Check for the Remote Control
30
Optimizing the High-Definition Settings
30
Table 3-1 Operational Check Procedures
30
Graphics Overlaying the Video
33
4 Diagnostics
35
Using the Diagnostics
35
General Status
35
Figure 4- 1 Example of the Front Panel Display for the Main Menu
35
Figure 4-2 Example General Status LED (no Error)
36
Purchase Status
38
Figure 4-3 Front Panel Display for Purchase Status Diagnostic
38
Out-Of-Band (OOB) Status
39
Figure 4-4 Front Panel Display for the OOB Diagnostic
40
Agile OOB Tuner Hunting
41
Summary of Manual Selection of the OOB Frequency (OSD Frequency Override in Hunted Mode)
41
In-Band Status
42
Figure 4-5 Front Panel Display for In-Band Diagnostic
43
Unit Address
44
Figure 4-6 Front Panel Display of a Unit Address
44
Separable Security
46
Current Channel Status
48
Figure 4-7 Current Channel Status Front Panel Displays
49
RF Modem (Upstream)
50
Figure 4-8 RF Upstream Modem Front Panel Display
52
Code Modules
53
Figure 4-9 Front Panel Display for Code Modules
54
Memory Configuration
56
Audio/Video Status
56
Interface Status
60
User Setting Status
63
Dvr/Hard Drive Status
65
DOCSIS Status
67
Application Specific Information
70
Interactive Status
71
Figure 4-10 Interactive Status Front Panel Display
71
Keypad-Front Panel Indicators
73
5 Troubleshooting
75
