Introduction
MTS Landmark™ Tabletop Load Units - Product Information 45
Dimensions
The following dimensions are rounded off to the nearest millimeter.
Item
Dimensions
Model 662.20H-04
Dimensions
Model 662.20H-05
A 111.3 mm (4.38 in) 158.8mm (6.25 in)
B (both ends) 101.6 mm (4.00 in) 146.0 mm (5.75 in)
C [bolt circle diameter (both ends)] 78.7 mm (3.10 in) 120.7 mm (4.75 in)
D 127.0 mm (5.00 in) 165.1 mm (6.50 in)
E (both ends) 55.9 mm (2.201 in) 88.9 mm (3.501 in)
F 6.4 mm (0.25 in) 9.6 mm (0.18 in)
G 6.4 mm (0.25 in) 6.4 mm (0.25 in)

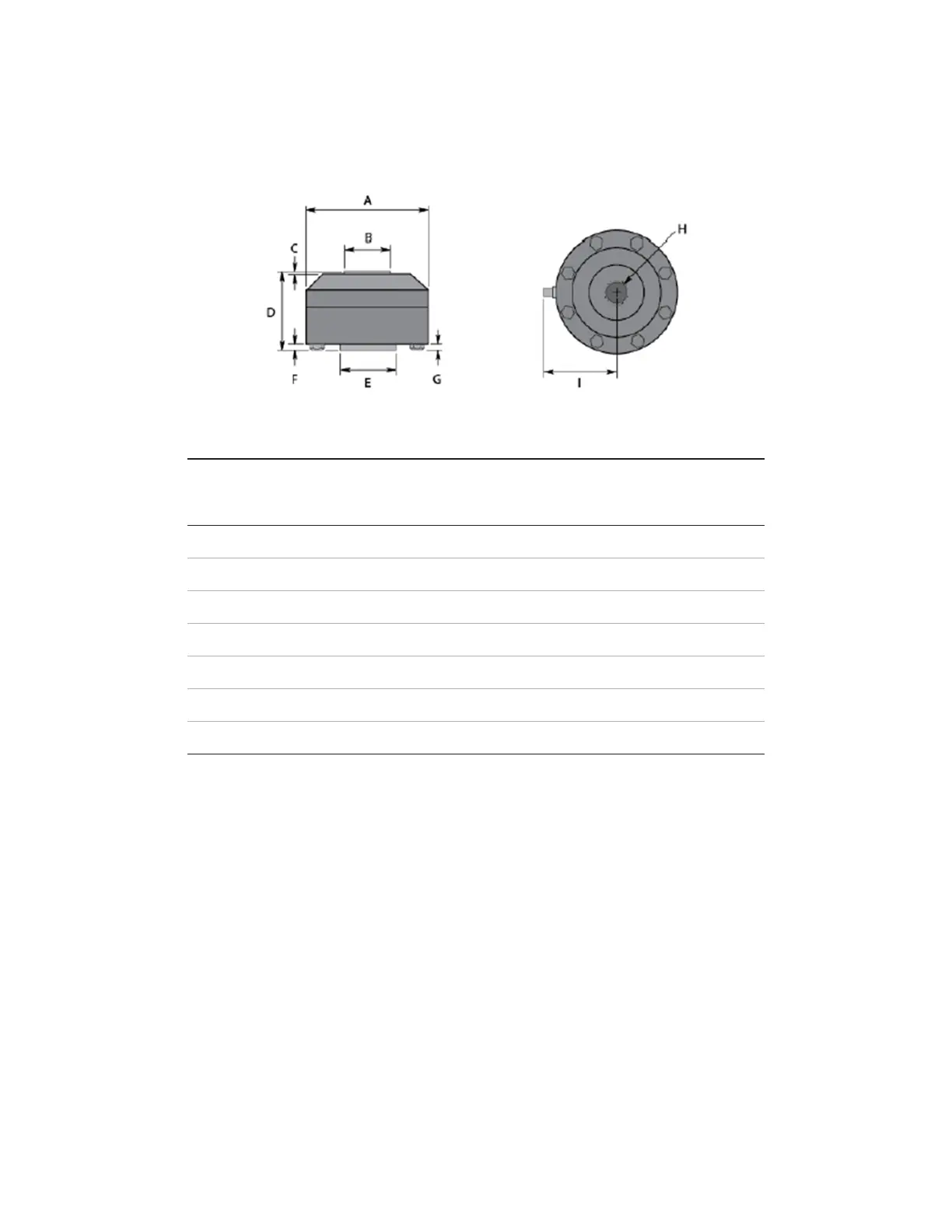

Series 662 Force Transducer Dimensions
Specifications
Force ratings, weights, dimensions, and operating specifications can be found in the MTS Landmark
Testing Solutions brochure on the MTS web site (www.mts.com); search keyword “landmark
testing solutions.”
