Operation
64 MTS Landmark™ Tabletop Load Units - Product Information
Control Module
The controls for the Series 370 Load Unit are located on a module mounted to the front of the load unit.

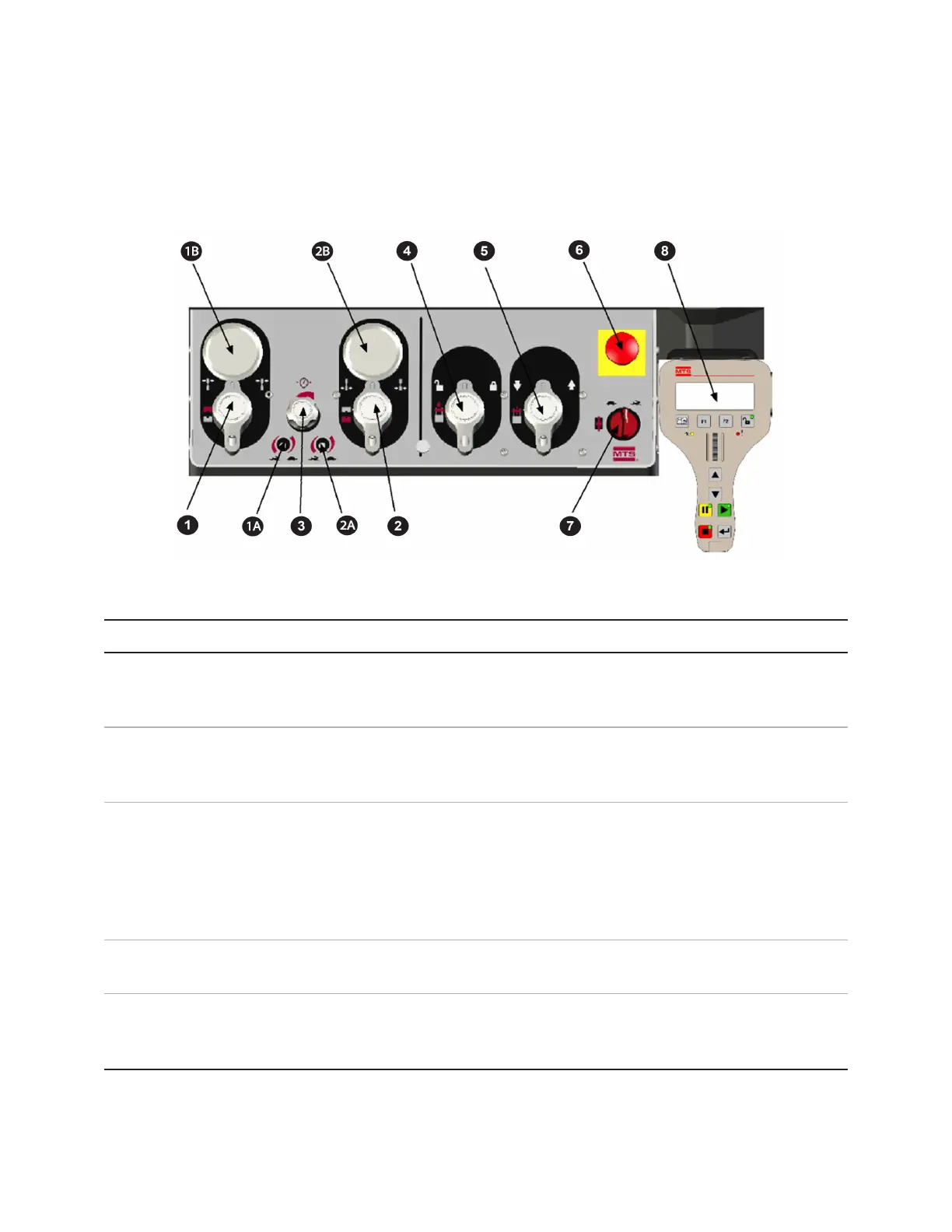

The followingcontrol panel is shown with all available options. The control panel on your load unit might
not have all of these controls depending on the specific configuration.
Item Control Description
1 Upper Hydraulic Grip
Controls
Item 1 controls clamping and unclamping the optional upper
hydraulic grip. Item 1A adjusts the upper grip clamping rate. Item
1B is the upper grip pressure gage.
2 Lower Hydraulic Grip
Controls
Item 2 controls clamping and unclamping the optional lower
hydraulic grip. Item 2A adjusts the lower grip clamping rate. Item
2B is the lower grip pressure gage.
3 Grip Pressure Adjust Adjusts the amount of hydraulic pressure to the grips. The
adjustment range is 1–21 MPa (100–3000 psi) or 1–69 MPa (100–
10,000 psi). The highest pressure setting depends on the
maximum pressure setting. Adjust the control clockwise to
increase the hydraulic pressure. Use the pressure gage and the
grip manual to determine the necessary clamping force.
4 Crosshead Lock/Unlock
Control
Controls the locking and unlocking of the crosshead. The
crosshead must not be moved while it is clamped.
5 Crosshead Positioning
Control
Controls the movement of the crosshead. The control raises and
lowers the crosshead. The crosshead must not be moved while it
is locked.
Series 370 Load Unit Controls
