Installation
MTS Landmark™ Tabletop Load Units - Product Information 49
Model Base Mount
Approximate Weight
Crosshead Mount
Approximate Weight
370.10 631 kg (1390 lb) 815 kg (1795 lb)
370.25 871 kg (1920 lb) 1091 kg (2405 lb)
370.50 1563 kg (3445 lb) 1756 kg (3870 lb)

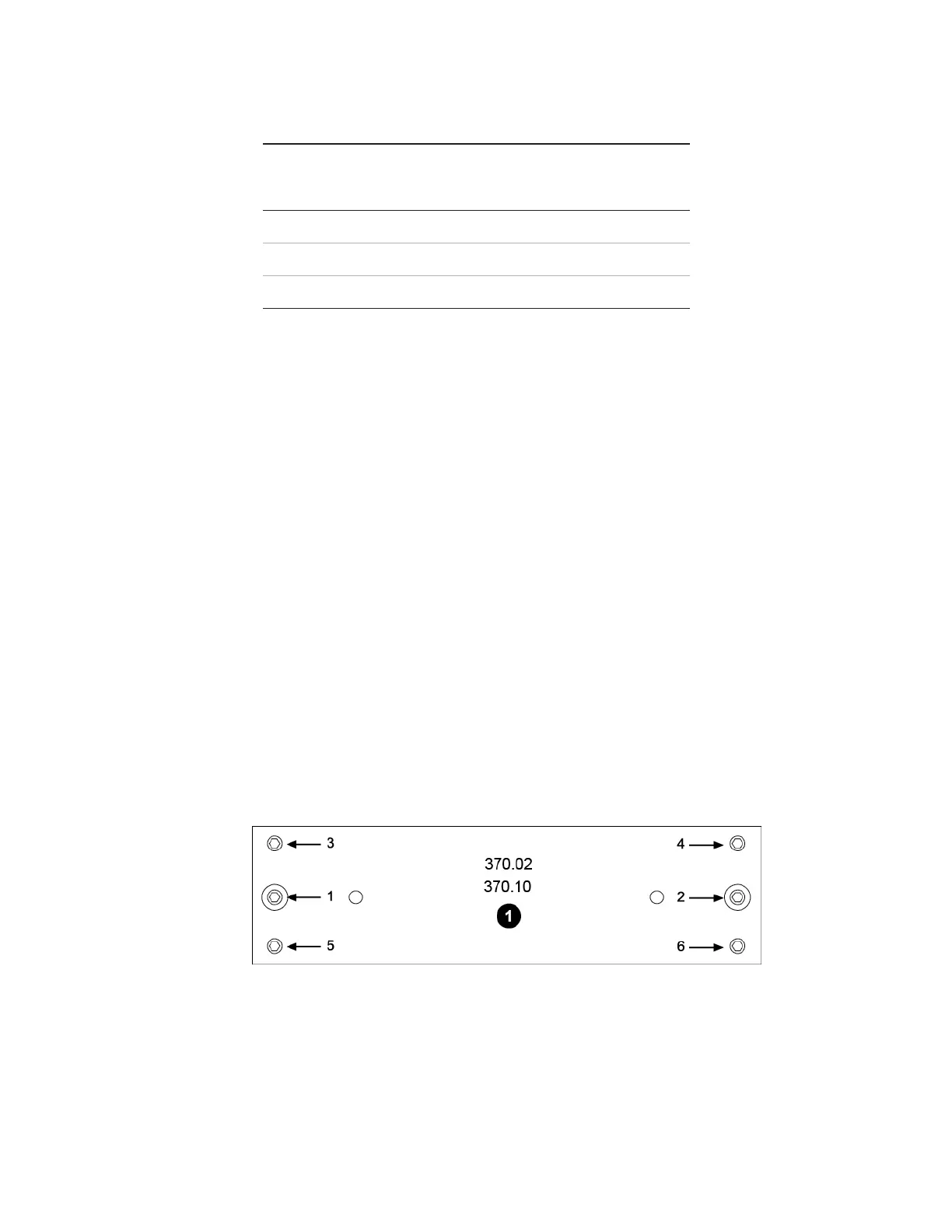

Approximate Weights of Load Units
Lift and Move the Load Unit
1. Unpack the load unit.
A. Remove the load unit from the shipping container (if used).
B. Remove any protective wrapping.
C. Use a clean cloth to wipe dust or debris deposited during shipment.
2. Inspect the load unit for shipping damage. Look for the following:
l Scratches in the load unit or lift cylinder columns
l Damaged electrical connections
l Damaged hydraulic connections
l Dents and other structural damage
l Torn, kinked, or breaking hoses
Report any damage found to both the carrier and MTS. In the U.S. and Canada, call the MTS
Call Center at 1-800-328-2255. Elsewhere, contact your local MTS office.
3. Lock the crosshead.
The crosshead should already be locked into position. Ensure that the manual crosshead
locking bolts are fully tightened. The load unit is available with hydraulically or manually locked
crossheads.
