Music Source
DS2000 Hardware Manual Section 4: Optional Equipment ◆ 4-3
4
Music Source
Installing a Music Source
Your system provides connection for a customer provided music source. Use this music source for Back-
ground Music and Music on Hold. Be sure the connected music source is compatible with the following
music input specifications:
The following products should help if you make your own cables. The connector is generally referred to as a
RJ45 connector wired in an RJ61X configuration. Check with your local supplier for comparable products.
● Suttle SE-266-8K 8 Position Modular Plug (requires an SE-166 or SE-166-6 modular crimping tool).
● Hubbell BRFT4P Snap-On 8 Position Modular Plug (does not require a special crimping tool).
To connect a music source (Figure 4-3):
1. Find an available connector in a station cable and make sure it is correctly punched down at the
66M1-50 block.
Follow standard color code order. Be sure the block is properly cross-connected.
2. For the connector chosen, locate pins 2T and 2R and connect the music source.
3. Plug the modular jack into the CPU modular connector.
Programming Background Music
● In 0201 - Background Music, enter Y to enable Background Music system-wide.
● In 1802 - BGM, enter Y to enable Background Music at the extension.
To turn Background Music on and off:
1. Do not lift the handset or press SPK.
2. Press HOLD.
Programming Music on Hold
● In 0201 - Music on Hold, enter Y to enable Music on Hold system-wide.
● In 0201 - MOH on Transfer, enter Y to enable Music on Hold for transferred calls.
● In 1003 - MOH Source, enter 1 (for external) + VOL ▲.
You can optionally enter 2 for a low pitched internal tone; 3 for a high pitched internal tone.
Music Input Specifications
Input Impedance: 10K Ohms
Output Level: +18 dBr (+2 dBr) @ 1.0 KHz

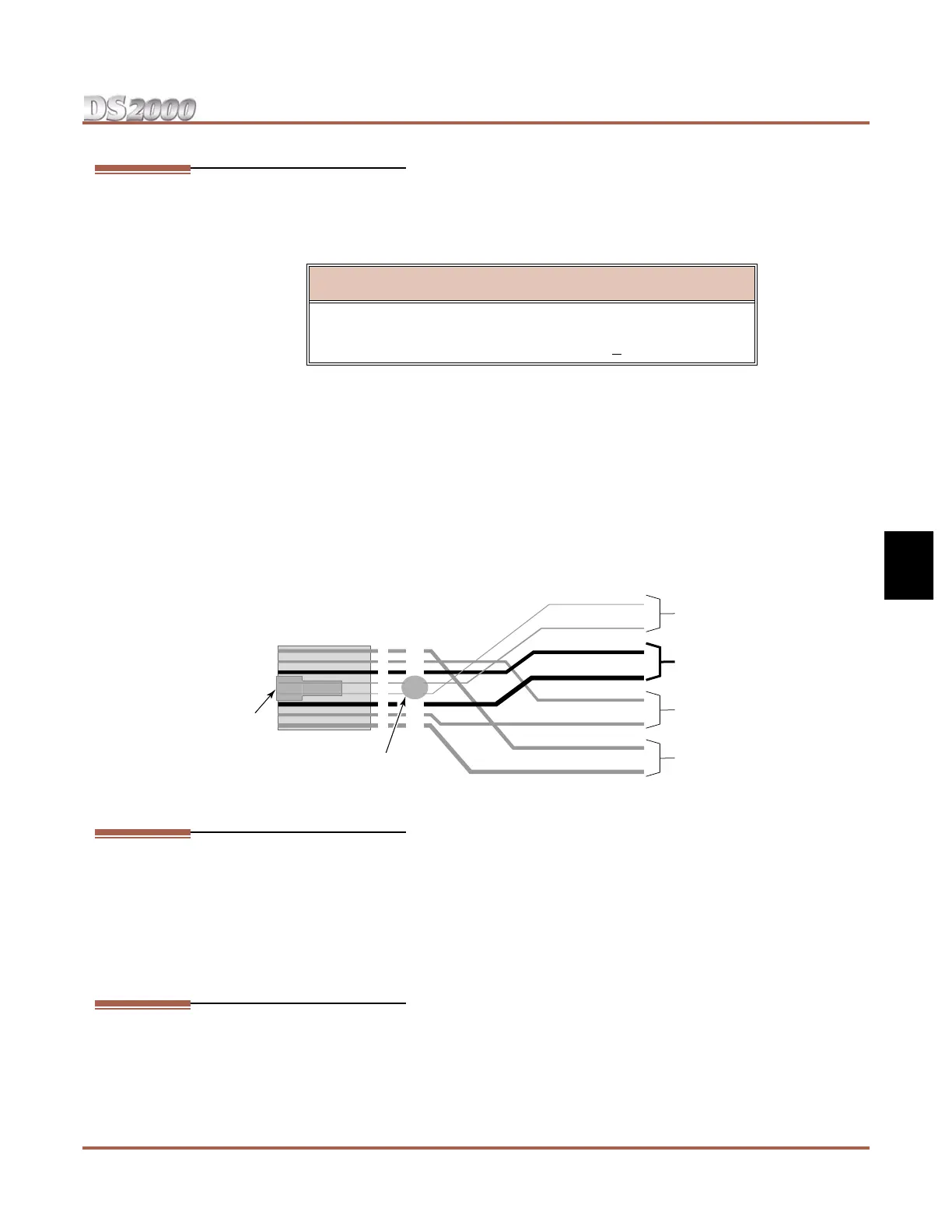

Figure 4-3: Installing a Music Source
RJ61X
Pin
Latch
faces up
To CPU
Mod Jack
Note
reversal
Port
Designation
To 66 Block
WHT-BLU (1T)
BLU-WHT (1R)
WHT-ORN (2T)
ORN-WHT (2R)
WHT-GRN (3T)
GRN-WHT (3R)
WHT-BRN (4T)
BRN-WHT (4R)
80000 - 18A
4T
3T
2T
1R
1T
2R
3R
4R
1
2
3
4
5
6
7
8
Page Out
Music In
Relay Contacts
No Connection
