Wall-Mount Kit
4-10 ◆ Section 4: Optional Equipment DS2000 Hardware Manual
Wall-Mount Kit
Installing the Wall-Mount Kit
You can use a wall-mount kit to attach any key telephone to a wall. The wall-mount kit includes a mounting
bracket, wall-mount screws and a handset hanger.
To install the wall-mount handset hanger (Figure 4-9)
1. Remove the rubber plug that covers the slots for the handset hanger. Store the plug in a safe place.
2. Insert the handset hanger in the slot provided beneath the telephone’s hookswitch.
Wall-Mounting a Key Telephone
To mount the telephone on the wall (Figure 4-10):
1. Using the screws provided, attach the wall-mount bracket to the wall in the desired location.
2. Plug in the telephone’s modular line cord.
3. Run the telephone’s line cord through one of the slots in the bottom of the wall-mount bracket.
4. Plug the line cord into the telephone’s 625 modular jack.
5. Place the telephone on top of the wall-mount bracket and snap into place.

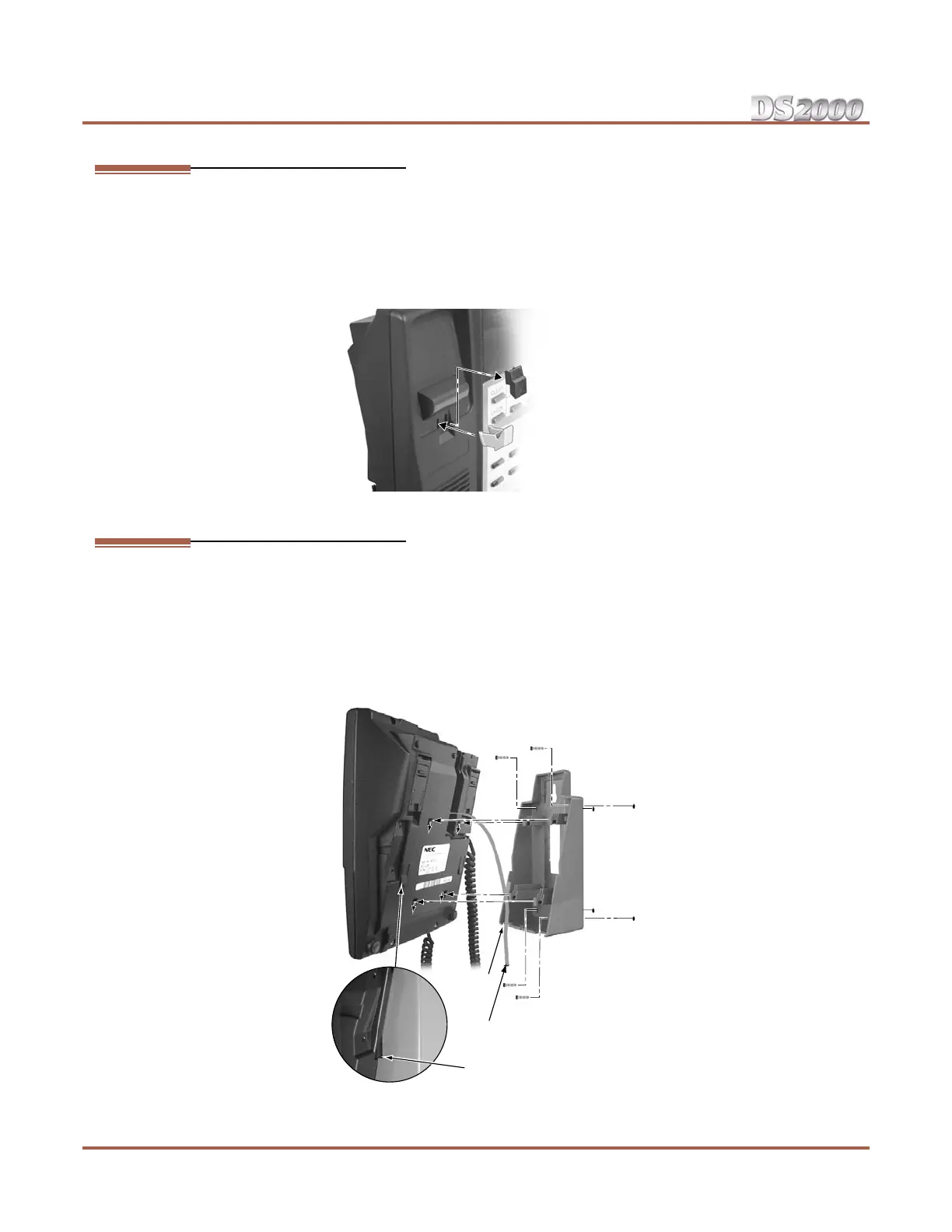

Figure 4-9: Installing the Wall-Mount Hanger
Figure 4-10: Installing the Wall-Mount Bracket
80000 - 42A
To wall jack
Tab on phone must snap
into cutout on wall mount bracket
Run cord
through
slot
