BEFORE SET-UP

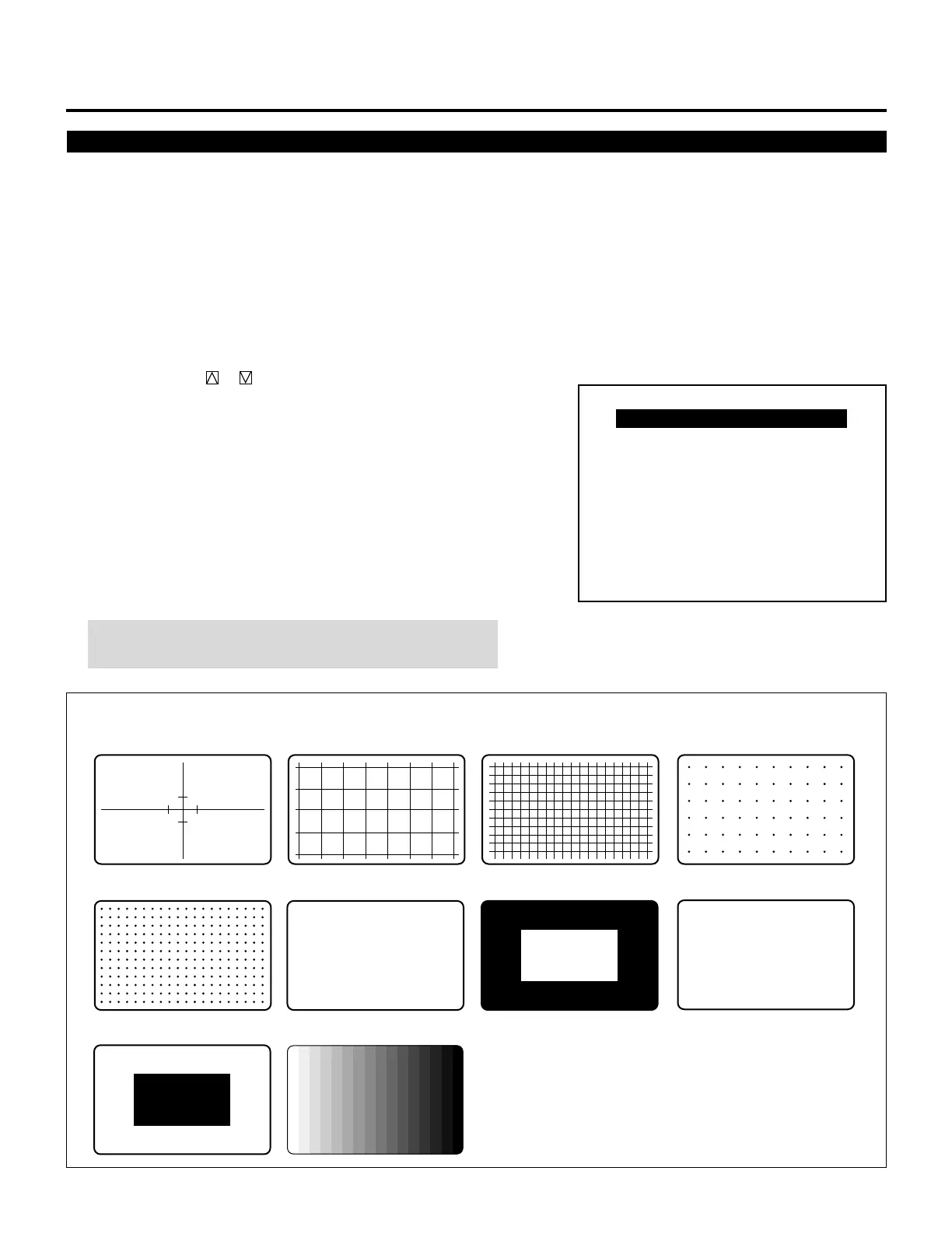

Test Pattern

This projector will generate a selection of test signals.

Ten kinds of internal test patterns can be selected from the TEST

PATTERN menu.

To display the TEST PATTERN menu, proceed as follows:

1 Press the TEST button on the Full function remote control.

• The “TEST PATTERN” menu will be displayed.

• When the END button is pressed, the “TEST PATTERN” menu

will disappear.

2 Use the CURSOR or button to highlight the test pattern you

wish to use and press ENTER.

• The selected test pattern will be displayed.

3 To return to the source screen, press the TEST and then the END

button.

• When the TEST button is pressed, the “TEST PATTERN”

menu will be displayed and when the END button is pressed,

the screen will be changed to the source screen.

• The projector will return to the original source screen by

pressing the END button only when no menu or no adjustment

screen is displayed.

NOTE: If there is no test pattern, the beams have been turned

off by the R, G, and B buttons on the remote control.

CROSS-HAIR CROSS-COARSE CROSS-FINE DOT-COARSE

DOT-FINE

FOCUS WINDOW-WHITE

Adjustment test pattern

H H H H H H H H H H H H H H H H H H H H H H H H H H

H H H H H H H H H H H H H H H H H H H H H H H H H H

ALL WHITE

WINDOW-BLACK

GRAY SCALE

– TEST PATTERN –

CROSS-HAIR

CROSS-COARSE

CROSS-FINE

DOT-COARSE

DOT-FINE

FOCUS

WINDOW-WHITE

ALL WHITE

WINDOW-BLACK

GRAY SCALE
