Manage Device Security
233
ProSAFE 10-Gigabit Smart Managed Switch XS728T and XS748T User Manual
Configure a RADIUS Accounting Server
You can configure various settings for a single RADIUS accounting server on the network.
RADIUS accounting is supported for both AAA and 802.1x sessions.
Add a RADIUS Accounting Server to the Switch
 To add a RADIUS accounting server to the switch:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 10.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.

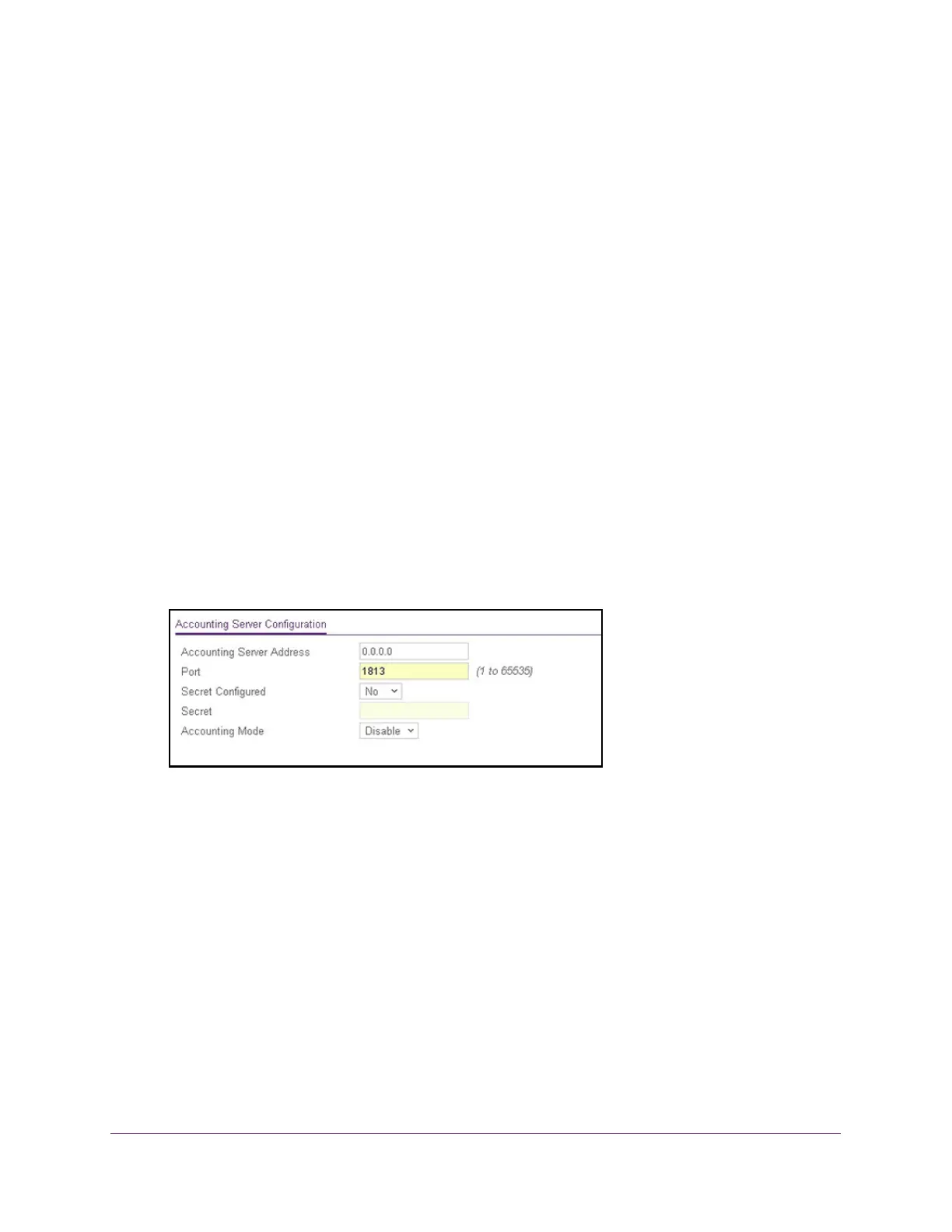

5. Select Security > Management Security > RADIUS > Accounting Server Configuration.
6. In the Accounting Server Address field, specify the IP address of the RADIUS accounting
server.
7. In the Port field, specify the UDP port number the server uses to verify the RADIUS
accounting server authentication.
The valid range is from 1 to 65535. The default value is 1813.
8. From the Secret Configured menu, select Yes to add a RADIUS secret in the next field.
You must select Yes before you can configure the RADIUS secret. After you add the
RADIUS accounting server, this field indicates whether the shared secret for this server
was configured.
9. In the Secret field, type the shared secret to use with the specified accounting server.
10. From the Accounting Mode menu, select Enable to enable the RADIUS accounting mode.
11. Click the Add button.
The server is added to the switch.
