3-CONTROLSANDINSTRUMENTS

3-CONTROLSANDINSTRUMENTS###_3_###

ACCESSTOOPERATOR'SPLATFORM

Doorlatches,cab

Exteriordoorlatch

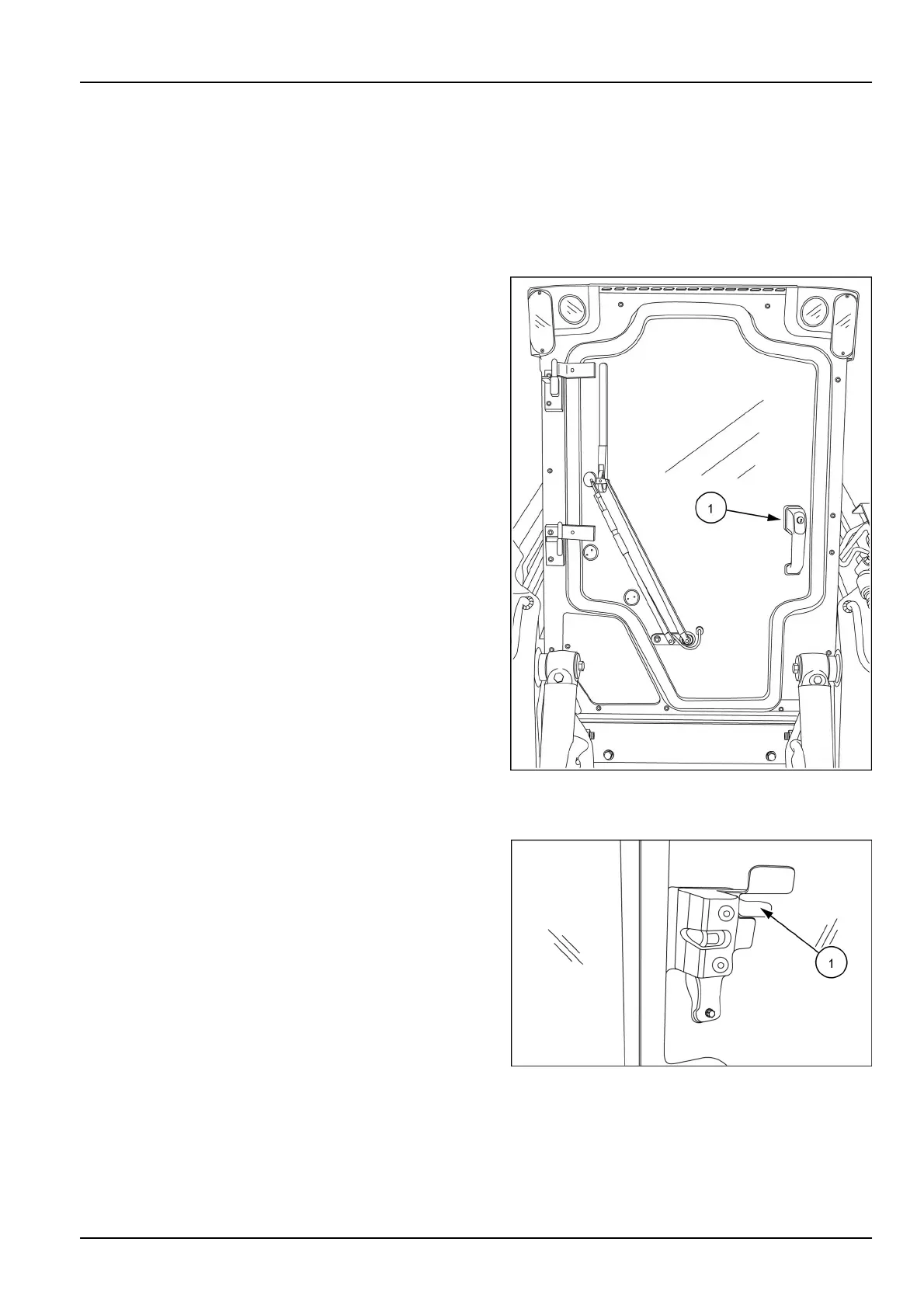

Pushontheknob(1)toreleasethedoorforentry.The

starterswitchkeymaybeusedtolockthedoor.

RAIL13SSL0706BA1

Interiordoorlatch

Pushonthelever(1)toreleasethedoorlatchandopen

door.

NOTICE:Donotraiseorlowerloaderliftarmuntilyou

haveconrmedthedoorisfullyclosed.Damagemay

occurtothedoorassembly.

931068942

3-1
