3-CONTROLSANDINSTRUMENTS
Footpedals
9310075011
Liftarmraiseandlowercontrol.
•

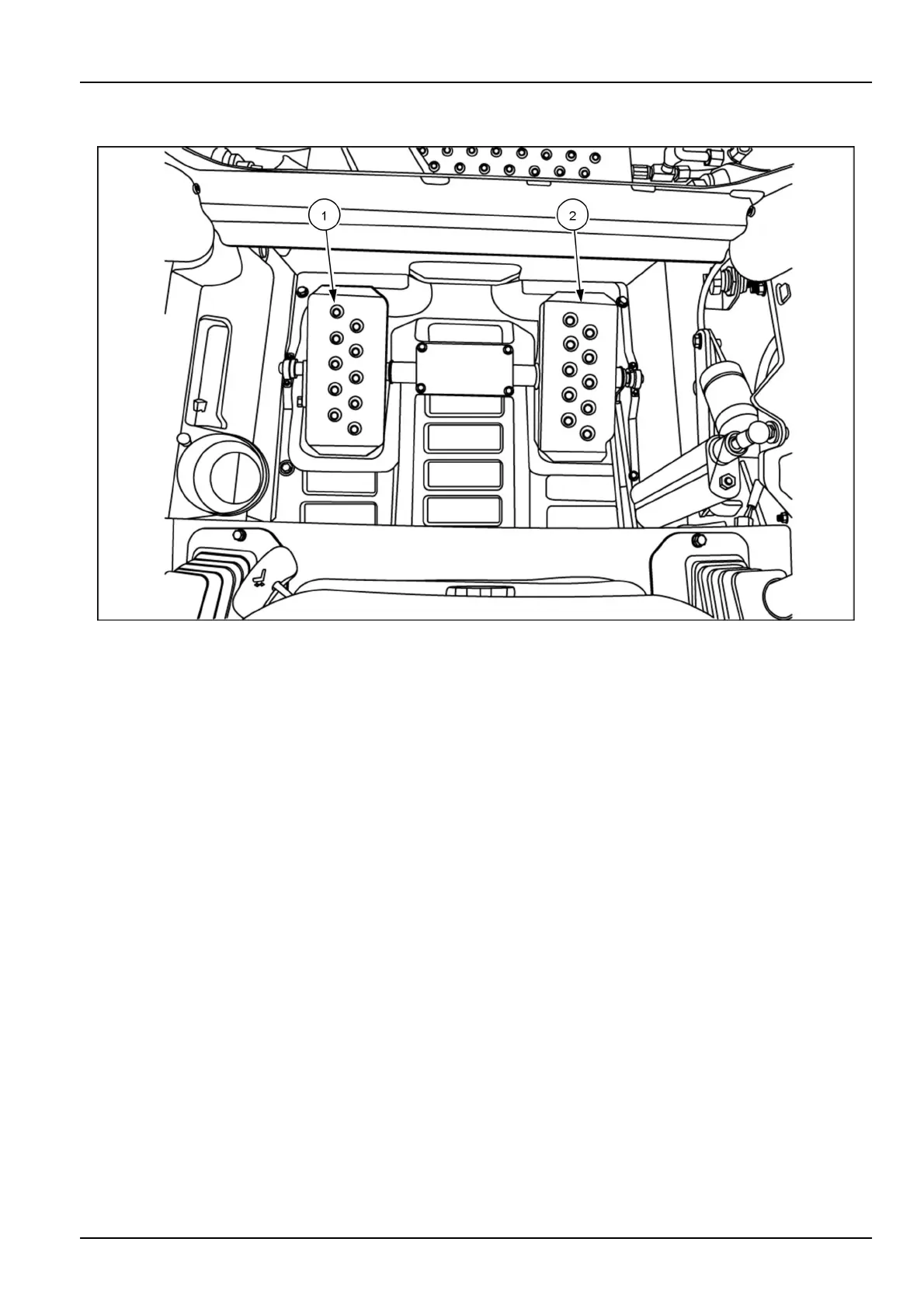

Theliftarmiscontrolledbytheleftfootpedal(1)locatedontheoorandismarkedwithadecal.Theliftarmis
raisedbydepressingtheheel(rear)ofthepedal.Theliftarmisloweredbydepressingthetoe(front)ofthepedal.
•
TheliftarmspoolisequippedwithadetentedFLOATcircuitiftheoperatorwantstheliftarmtooatoverchanging
groundcontour.T oputthevalveinFLOATposition,depressthetoeofthepedaluntilaslightjumpisfelt.Inthis
position,thepedalislockedinoatanddoesnotreturntotheneutralpositionunassisted,butwilldosowhenlight
pressureisappliedtotheheelofthepedal.
Bucketdumpandcurlcontrol.
•
Thebucketistiltedbyactivationoftherightfootpedal(2)locatedontheoorandismarkedwithadecal.For
dumping,depressthetoeendofthepedal.T oachieverollback(curl),pushthepedaldownwardattheheel.
NOTE:Thereisnodetentoroatpositiononthebucketdumpandcurlspool.
3-11
