3-CONTROLSANDINSTRUMENTS
ISOcontrolpatternliftarmandbucketcontrols
Liftarmandbucketcontrols
9310075241

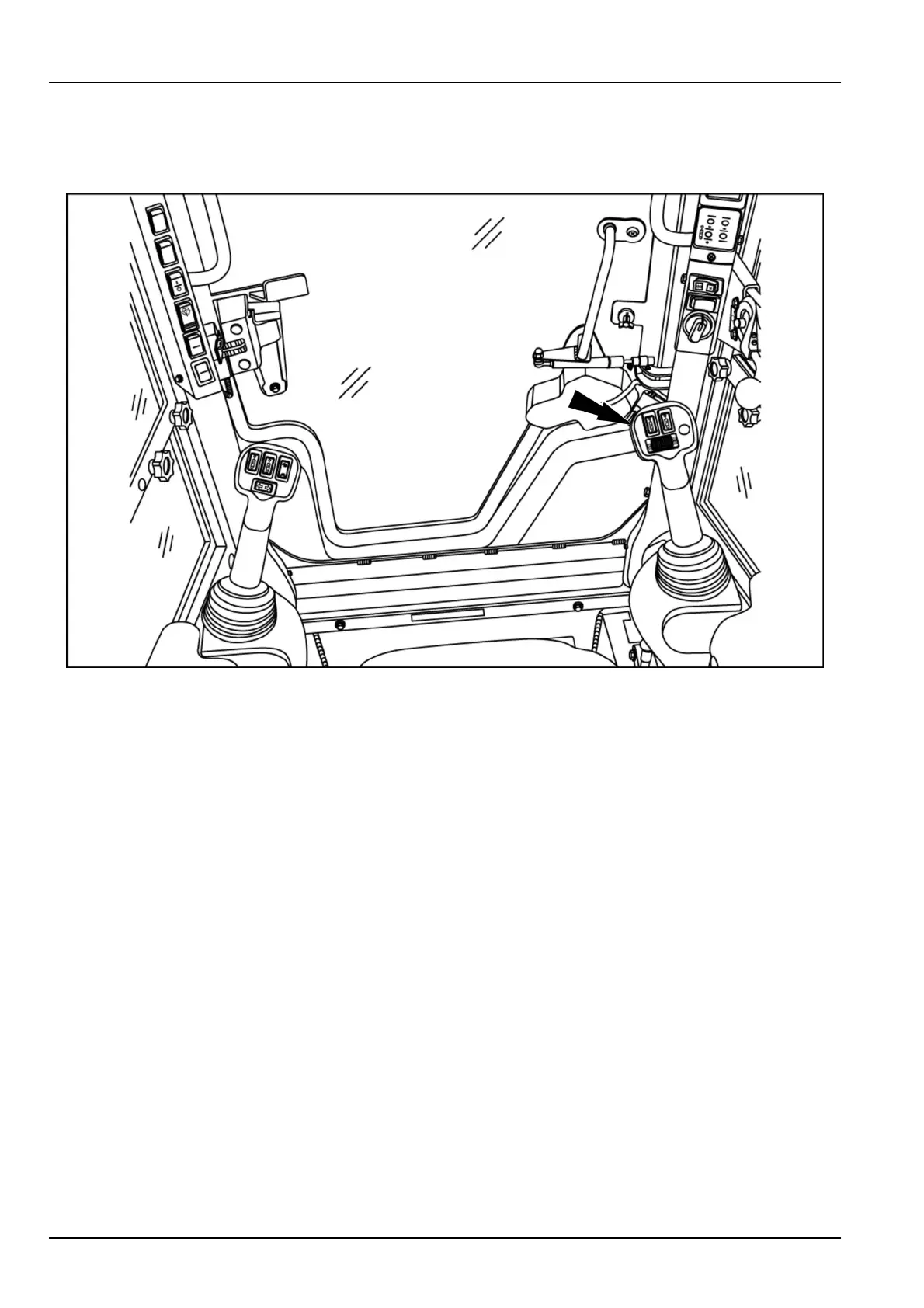

Theright-handcontrolleveroperatestheliftarmandbucket.
Liftarmraiseandlowercontrol.
•
Pullbackontheright-handcontrollevertoraise(up)theliftarm.
•
Pushtheright-handcontrolleverforwardtolower(down)theliftarm.
•
TheliftarmspoolisequippedwithadetentFLOATcircuit.Inthisdetentpositiontheliftarmwilloatoverchanging
groundcontourandtheleverwillremaininthispositionuntilpulledbacktowardtheupstrokeslightly.
Engagetheoatfeature:
Presstheoatbuttonontheright-handcontrolleverandpushtheleverpartiallyforward.Iftheoperatorhasthe
right-handcontrolleveralreadypartiallyinthedownstrokepositionandthenpressestheoatbutton,theoat
featurewillengage.
Disengagetheoatfeature:
Pullbackontheright-handcontrolleveroutofthedetentposition.
Bucketdumpandcurlcontrol.
•
Pivottheright-handcontrolleverinward(down)andthebucketwillrollback(curl).
•
Pivottheright-handcontrolleveroutward(up)andthebucketwilldump.
NOTE:Thereisnodetentoroatpositiononthebucketdumpandcurlcircuit.
