8 – ENGLISH

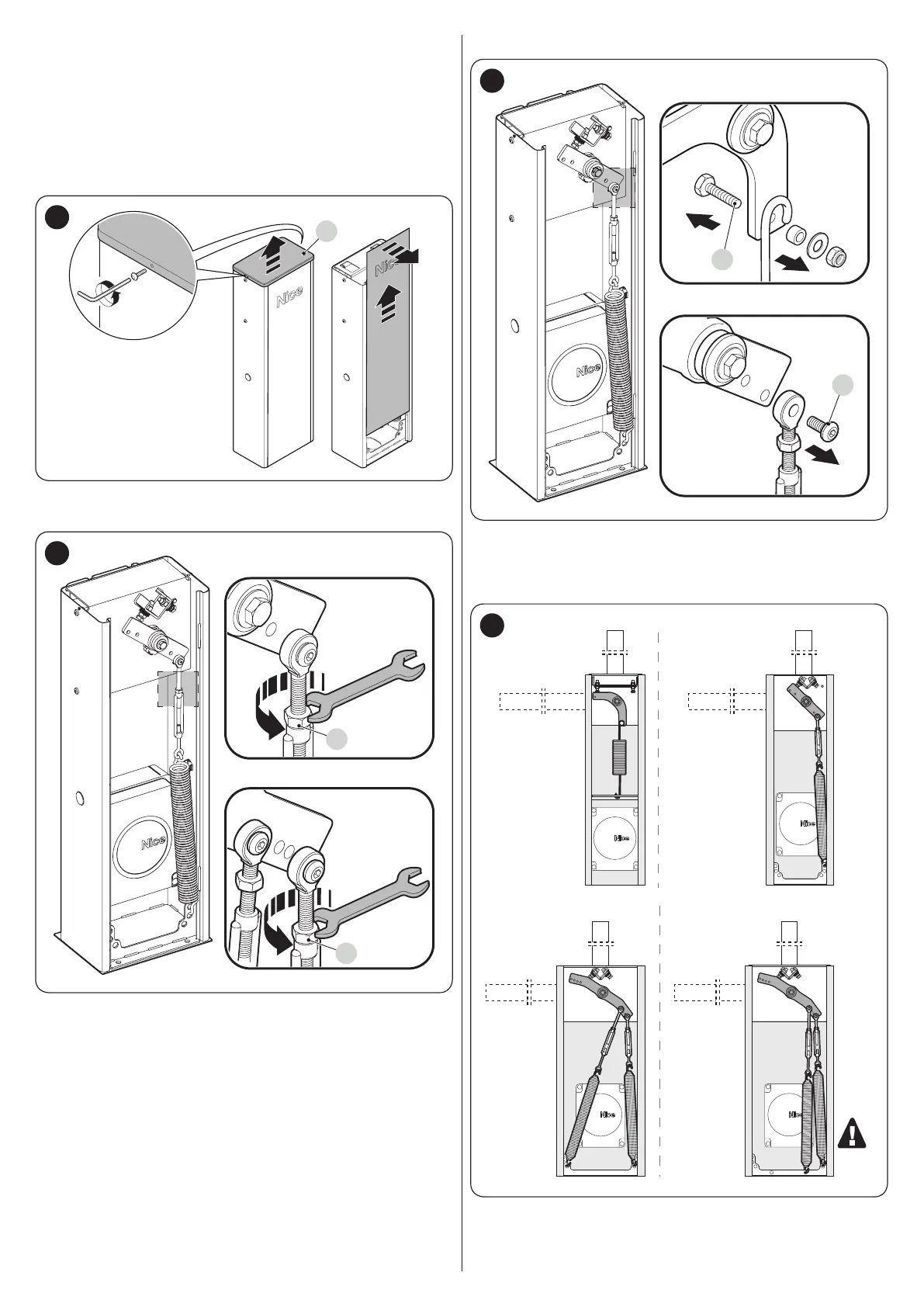

3.6 ADJUSTING THE BOOM GATE
The boom gate is factory-set in the following way:
– balancing spring fastened to the right, anchored through
non-permanent holes
– closing manoeuvre of the boom towards the left.
To move the spring attachment, proceed as explained below:
1. remove the upper cover (A) of the boom gate cubicle
2. slide out the rear panel rst towards the other and then out-
wards
A
6
3. loosen the tension of the balancing spring on WIDE M and
WIDE L by loosening the nut (B)
WIDE L
B
B
7
4. loosen the bolt (C) fastening the spring to the balancing lever
WIDE M, WIDE L
C
C
8
5. remove the balancing spring, by detaching it from the lower
plate
6. if the closing direction is the desired one, the balancing
spring should be positioned as shown in the diagram
open
close
open
close
open
close
WIDE S
WIDE L
< 7 m
WIDE L
7 m
WIDE M
open
close
9
