34 - FORM NO. 56043088 / Advenger
/ BR 600S, 650S, 700S, 800S
SOLUTION SYSTEM
FUNCTIONAL OVERVIEW
See Figure 1. The plastic (polyethylene) molded main body structure ful lls three (design) functional uses. They are the platform for the operator’s
seat, mount cavity for the electrical panel and as the storage tank for the machine’s scrubbing solution. The solution tank ll capacity is 30 gallons
(113L). Plumbed into the ow control valve hose outlet is a serviceable solution lter to keep debris from entering the solenoid valve. Also tted to
the ow control valve is a short exible drain hose to empty the tank for system maintenance.
The solution system uses (2) valves to stop, start and regulate the amount of solution dispensed onto the oor. Located underneath the right side
of the solution tank two feet back from the front is mounted the electrical solution solenoid valve L1. Its function is to stop and start the solution ow
to the scrub brushes. Located on the operator’s steering column support is the solution lever (tee handle). The lever and connected cable move
the ow control valve arm that regulates solution ow to meet a speci c operator’s scrub application.
See Figure 2. The electrical circuit that turns on (energizes) the solenoid coil L1 is activated through the E1 control panels switch buttons (touch
pad). Note: See the Know Your Machine section in this manual for a detailed explanation of the complete solution operation modes.
During normal machine scrubbing the solution system’s Auto Mode is selected and works in conjunction with the (A1) wheel drive speed controller
and the foot pedal (throttle). This input activates the scrub system’s outputs to turn on & off the (L1) solenoid valve. The solution ows to the
scrub brushes any time the manual ow control valve is open, the scrub deck is lowered and the drive pedal is pushed into the forward position.
Note: When the solution on/off button is turned off, no ow can occur regardless of the manual ow control being on, drive pedal activated and the
scrub deck down.

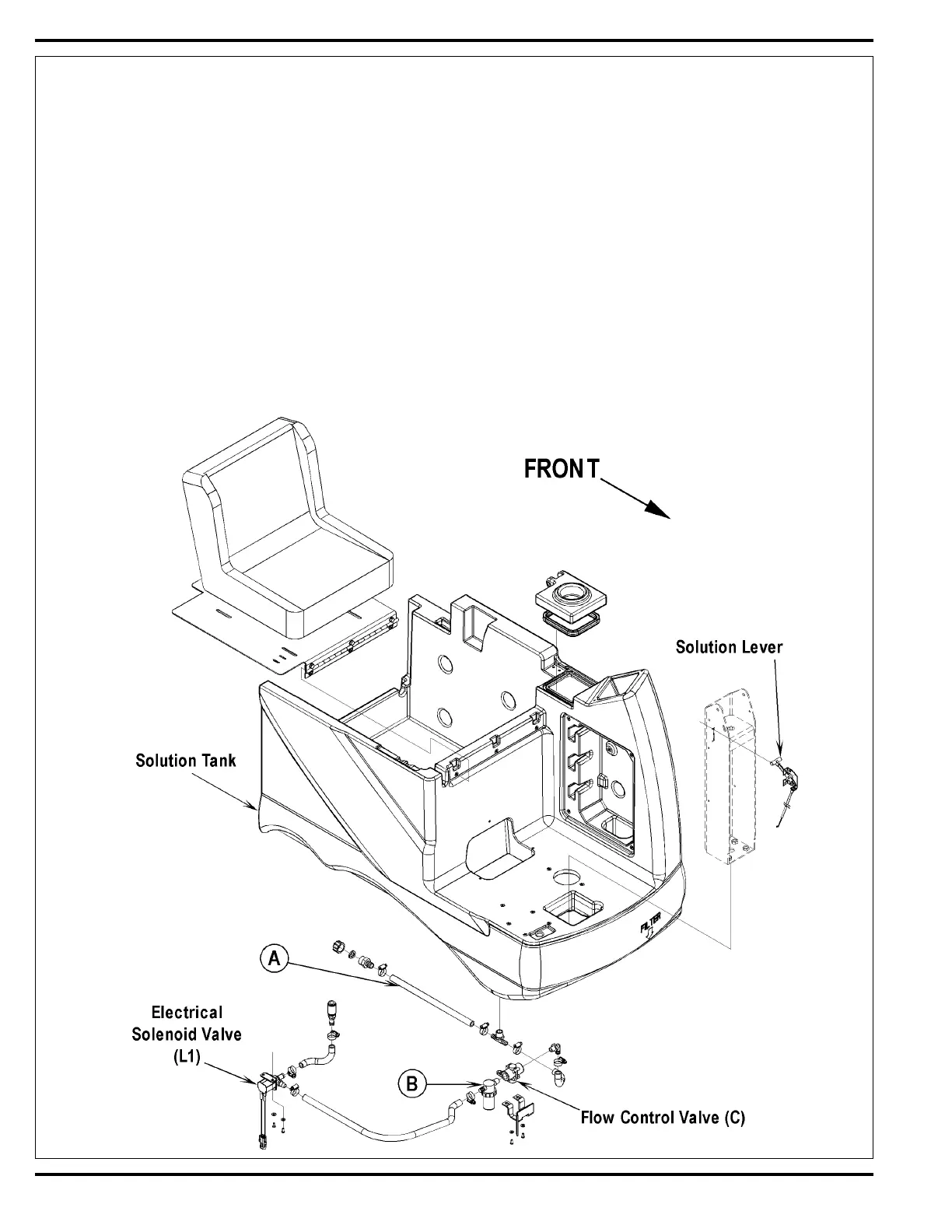

FIGURE 1
