SOLUTION SOLENOID CIRCUIT OVERVIEW
Auto Mode
+ Positive battery circuit inputs and outputs
Inputs:
• A Solenoid circuit control coil (+) voltage input to control board E1 connector J2 pin #’s 6 & 7 (wire colors Brn/Yel).
• A closed S1 key switch supplies (+) input voltage to the E1 terminal J2 pin #10 (wire Brn). This powers up (turns on) the control board’s processing
logic functions.
• A closed S2 operator safety seat switch enables allows the starting of the entire automatic machine scrubbing system functions. Its E1 terminal
connection is J4 pin #11 (wire Orn).
Outputs:
• A control board E1 battery (+) voltage output from the solenoid accessory terminal connection J2 pin #8 Wht/Brn wire.
- Negative battery circuit inputs and outputs
Inputs:
• A main (-) battery ground input for the control board E1 terminal J4 pin#8 BLK wire. This supports the operation of the boards processing logic
functions.
• Battery ground supply input for all the (control boards) negative output coil circuits. Its E1 terminal connection is J2 pin #5 (wire Blk).
Outputs:
• A battery ground output from the E1 control board terminal connector J2 pin #3 wire Vio/Blk. This controlled output turns on and off the L1
solenoid coil that stops and starts the solution fl ow through the valve body. This occurs every time the throttle is moved off its neutral setting
into forward.

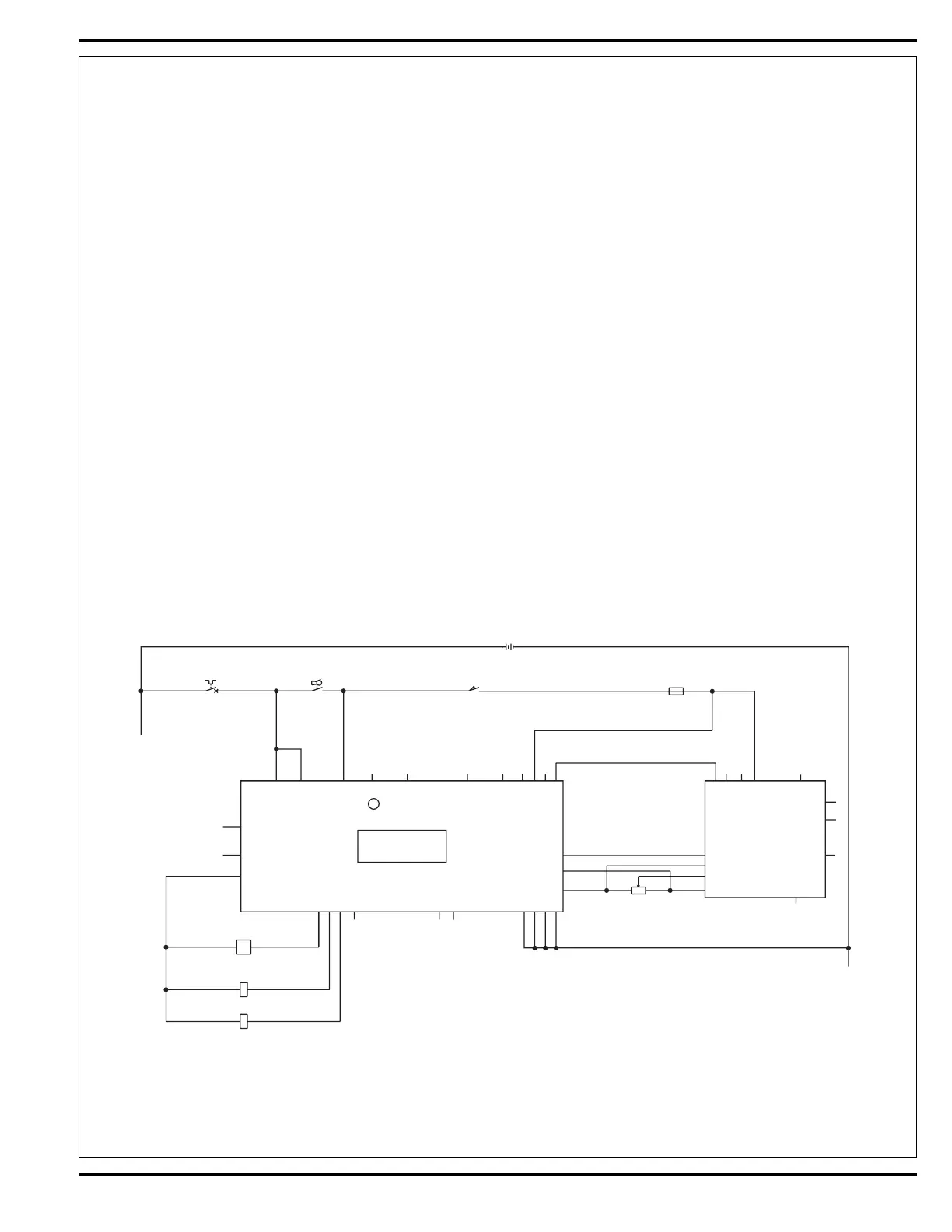

FIGURE 2
L1
Valve, Solenoid
S2
Sw, Seat
2
1
BT1
Battery, 36 Vdc
S1
Sw, Spst
Key
F3
F4
RED
BLK
RED
BRN/YEL
BRN/YEL
BRN
WHT/BRN
WHT/BRN
VIO/BLK
BLK
BRN
ORN
ORN
ORN
B+ 1
B+ 2
KEY SW.
SEAT SW.
ACC
SOLUTION
A1
Speed Controller
Interface
E1
Control Board
PIN5 -- KSI
R1
POT. 5K OHM
1
2
3
GRA
VIO
BLU/BLK
BLK
VIO
YEL
YEL
POT. OUT
POT. IN
REV.
PIN 13 -- POT. LO
PIN 3 -- POT. HI
PIN 4 -- POT. WIPER
PIN 16 -
REV. ALARM
B- 1
B- 2
J4-8
J2-5
J4-4
J4-9
J4-3
J2-9
PIN 18 -- SPEED LIMIT
GND
J2-7
J2-6
J2-10
J2-3
J2-8
J4-11
