72 - FORM NO. 56043088 / Advenger
™
/ BR 600S, 650S, 700S, 800S

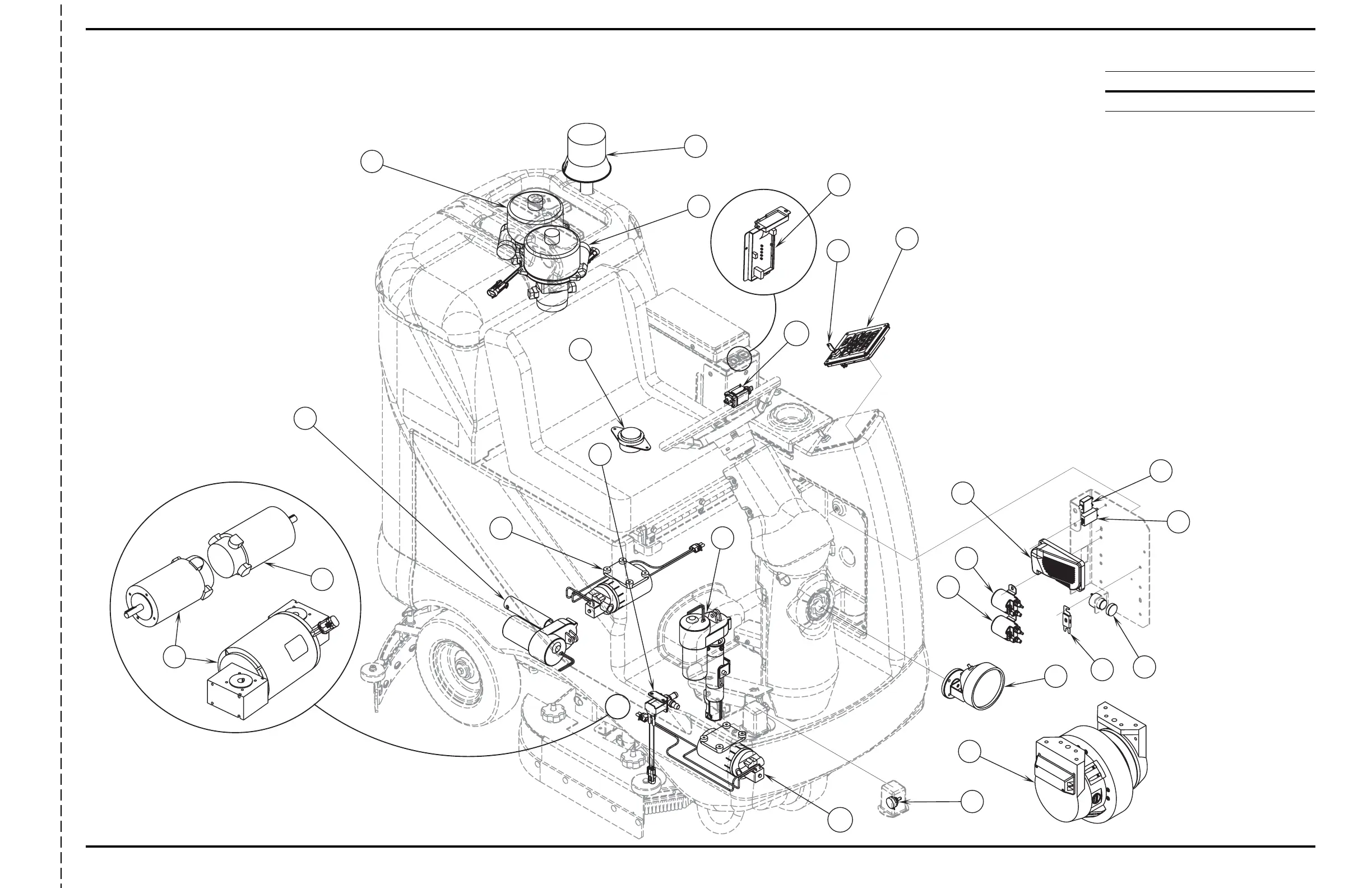

COMPONENT LOCATION
ELECTRICAL SYSTEM
Item Description
A1 Controller, Speed
E1 Control Panel Assembly
F1 Fuse 150 Amp
F2 Circuit Breaker, 10 Amp
F3 Circuit Breaker, 70 Amp
H1 Horn / Backup Alarm
H2 Headlight (Optional)
H3 Strobe Light (Optional)
K1 Contactor, Brush Motor
K2 Contactor, Vacuum Motor
K3 Contactor, Speed Controller
L1 Solenoid Valve
M1 Lift Actuator, Brush
M2 Lift Actuator, Squeegee
M3 Motor, Drive Wheel
M4 Motor, Pump (Optional)
M5 Motor, Vacuum
M6 Motor, Vacuum (Optional)
M7 Motor, Gearbox Assy (Disc) or
Motor, Brush (Cyl)
M8 Motor, Gearbox Assy (Disc) or
Motor, Brush (Cyl)
M10 Motor, Gearbox Assy (Disc only)
M11 Pump, Solution (AXP/EDS only)
M12 Pump, Chemical (AXP/EDS only)
R1 Potentiometer, 5K
S1 Switch, Key
S2 Switch, Seat
revised 5/06
For Machines after Serial Number Chart
SERIAL NUMBER CHART
2400D - 1837726
2400C - 1839732
2600D - 1839732
2600C - 1839732
2810D - 1837203
3210D - 1837599
2810C - 1837200
3210C - 1837197
BR600S - 1837616
BR700S - 1837623
BR800S - 1839156
BR600CS - 1837650
BR700CS - 1837652
BR800CS - 1839732
Lowes 3210D - 1837646
F2
F3
H2
F1
H1
R1
L1
S2
M5
H3
M6
S1
E1
A1
K1
K2
M3
M7
M8
M2
M1
E2
M4
M11
M12
