SOLUTION SYSTEM
FORM NO. 56043088 / Advenger
™
/ BR 600S, 650S, 700S, 800S - 37
SOLENOID VALVE DISASSEMBLY AND CLEANING
1 Remove the solenoid valve. See the Solenoid Valve Removal section for instructions.
2 See Figure 3. Remove the (4) (I) Screws and disassemble the valve (be careful not to lose any internal parts).
3 Thoroughly wash dirt from block (J) and diaphragm (K).
4 After reassembling, test the solenoid valve for proper operation.

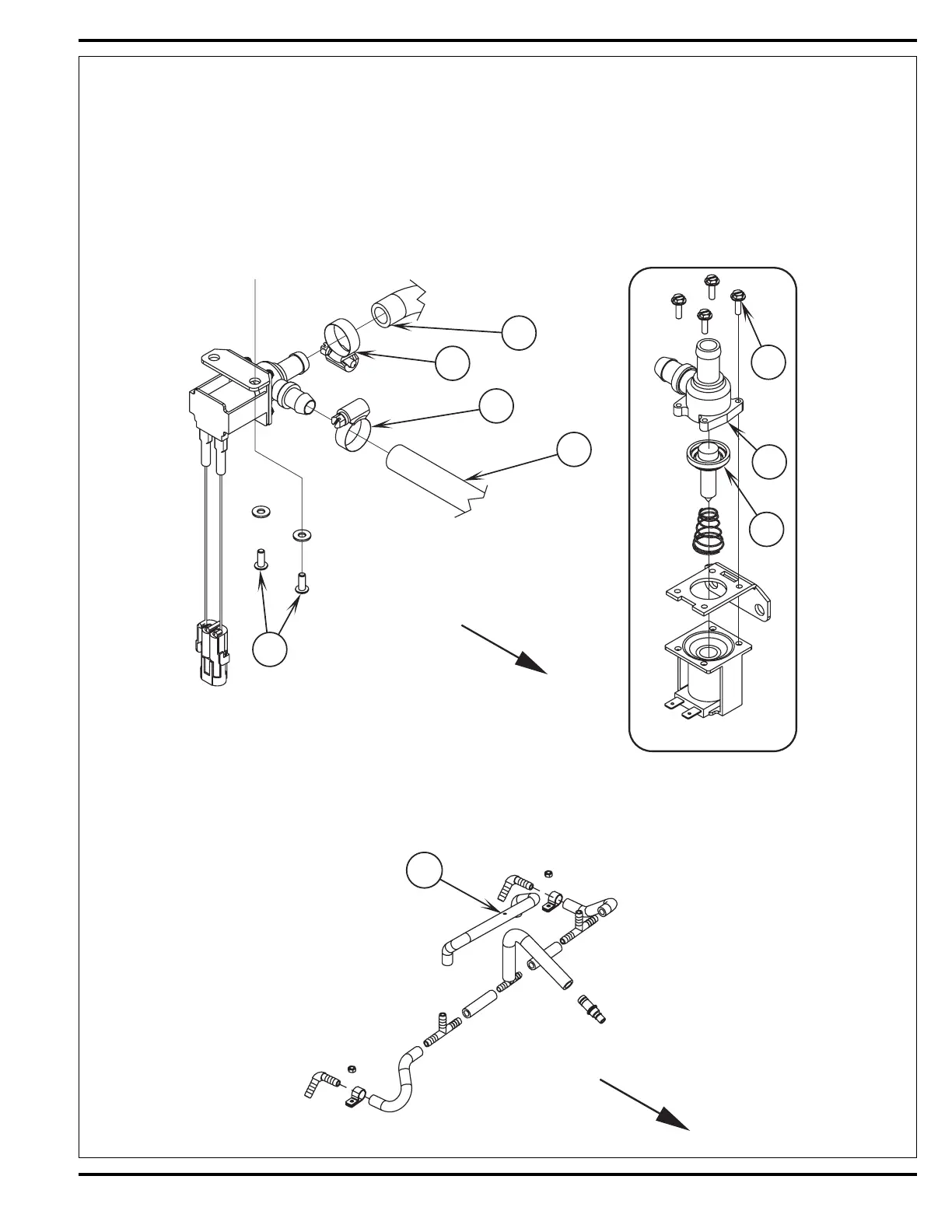

FIGURE 3
DISC MACHINE SOLUTION PLUMBING DETAIL
• Top of Hose (L) uses a .109” diameter hole in the center. This prevents unbalanced solution fl ow.
FIGURE 4
FRONT
E
H
G
Assembly
K
J
I
D
F
FRONT
L
