70 - FORM NO. 56043088 / Advenger
™
/ BR 600S, 650S, 700S, 800S
ELECTRICAL SYSTEM
Item Description
A1 CONTROLLER
BT1 BATTERY
E1 CONTROL PANEL ASSEMBLY
E2 CONTROL ASSEMBLY (AXP/EDS only)
F1 FUSE, 150 AMP
F2 CIRCUIT BREAKER, 45 AMP (WHEEL DRIVE)
F3 CIRCUIT BREAKER, 10 AMP (CONTROL CIRCUIT)
F4 FUSE, 1 AMP
F5 CIRCUIT BREAKER, 5 AMP (SIDE BROOM / OPTIONAL)
H1 HORN / BACKUP ALARM
H2 HEADLIGHT (OPTIONAL)
H3 STROBE LIGHT (OPTIONAL)
K1 CONTACTOR, BRUSH MOTOR
K2 CONTACTOR, VAC MOTOR
L1 SOLENOID VALVE
M1 LIFT ACTUATOR, BRUSH
M2 LIFT ACTUATOR, SQUEEGEE
M3 MOTOR, DRIVE WHEEL
M4 MOTOR, PUMP (OPTIONAL)
M5 MOTOR, VACUUM 36VDC
M6 MOTOR, VACUUM 36VDC
M7 MOTOR, GEARBOX ASSY (DISC) OR
MOTOR, BRUSH 36VDC (CYLINDRICAL)
M8 MOTOR, BRUSH 36VDC (CYLINDRICAL)
M9 MOTOR, SIDE BROOM (OPTIONAL)
M10 MOTOR, BRUSH
M11 PUMP, SOLUTION (AXP/EDS only)
M12 PUMP, CHEMICAL (AXP/EDS only)
R1 POTENTIOMETER, 5K
S1 SWITCH, KEY
S2 SWITCH, SEAT
S3 SWITCH, PUMP
S4 SWITCH, HEADLIGHT
S5 SWITCH, SIDE BROOM
S6 SWITCH, PUMP (PART OF M11)
Wiring diagram for Machines built before this Serial Number Chart
2400D - 1837726
2400C - 1839732
2600D - 1839732
2600C - 1839732
2810D - 1837203
3210D - 1837599
2810C - 1837200
3210C - 1837197
BR600S - 1837616
BR700S - 1837623
BR800S - 1839156
BR600CS - 1837650
BR700CS - 1837652
BR800CS - 1839732
Lowes 3210D - 1837646

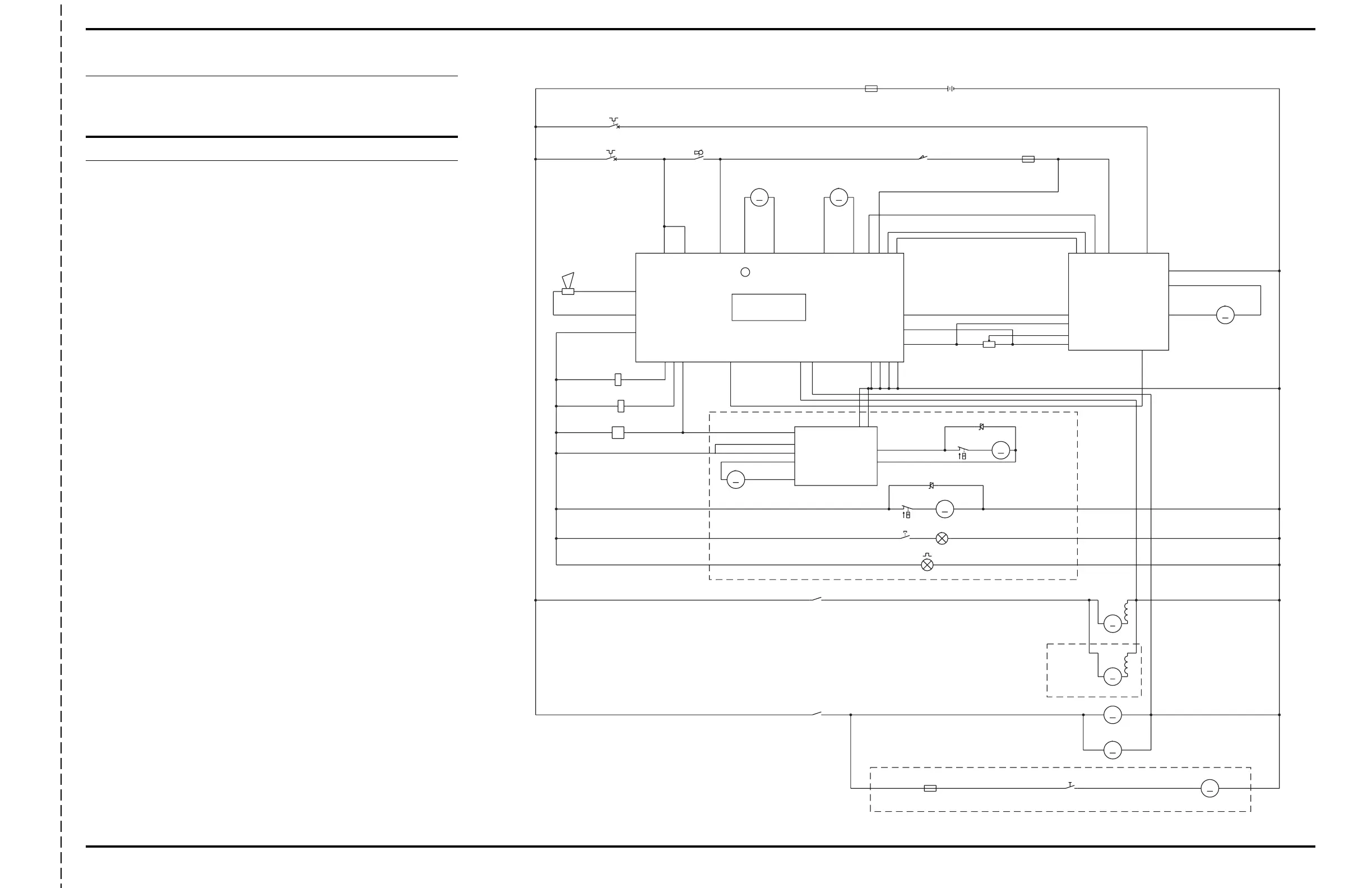

WIRING DIAGRAM / SCHEMATIC FOR
Advenger
™
/ BR 600S, 650S, 700S, 800S
(after Serial Number Chart)
revised 5/06
1 2
- +
- +
12
1 2
12
-+
1 2
1
2
12
1 2
1 2
21
-+
-+
1 2
+-
12
12
12
-+
-+
12
12
12
- +
1
2
-
+
1
2
1
2
3
M6
MOTOR, VAC
M
M9
MOTOR, SIDE BROOM
M
M3
MOTOR, WHEEL DRIVE
M
S1
SW, SPST KEY
K1
CONTACT N.O.
F3
CIRCUIT BREAKER, 45 AMP
M12
PUMP
CHEMICAL
M
F5
FUSE, 5 A.
S4
F4
FUSE, 1 A.
M5
MOTOR, VAC
M
S3
S2
SW, SEAT
M8
MOTOR, BRUSH
M
K4
CONTACTOR, VACUUM
M1
BRUSH LIFT
ACTUATOR
M
K2
CONTACT N.O.
BT1
BATTERY, 36 Vdc
H2
LAMP, HEAD
K5
CONTACTOR , BRUSH
D2
ZENER TVS
F2
CIRCUIT BREAKER, 10 AMP
S5
SW, SIDE BROOM
M2
SQUEEGEE LIFT
ACTUATOR
M
M7
MOTOR, BRUSH
M
L1
VALVE, SOLENOID
S6
F1
FUSE, 150 A.
M4
PUMP, ACCESSORY
M
H3
LAMP, FLASHING
M11
PUMP, SOLUTION
M
H1
HORN
BACKUP ALARM
D1
ZENER TVS
R1
POT. 5K OHM
RED
BLK
RED
RED
BRN/YEL
BRN/YEL
BRN
RED/WHT ORN/BLK
BLK/YEL
WHT/GRN
GRA
VIO
YEL/BLK
RED/GRN
BLU/BLK
RED/BLK
BRN/BLK
BLK
ORN/RED
GRN/BLK
WHT/BRN
BLK
WHT/BRN
WHT/BRN
BLK
BLK
RED
WHT
WHT
RED
BRN/RED
BRN/RED
RED RED
YEL/VIO
BLU
BLU
YEL/VIO
BLU
BLK
BRN
ORN
ORN
ORN/BLU
YEL
ORN
VIO
BLK
BLK
BLK
BLK
BLK
BLK
RED
WHT/BRN
WHT/BRN
GRA/BLK
WHT/RED
WHT/BRN
VIO/BLK
VIO/BLK
BRN/WHT
BRN/WHT
RED/WHT
BLU/GRA
BLK
WHT/BRN
WHT/BRN
BLK
VIO/BLK
WHT/BRN
BLK/WHT
BLU/YEL
WHT/BRN
YEL
B+ 1
B+ 2
KEY SW.
SEAT SW.
POT. LO
POT. HI
REV.
FOR./REV.
PIN 13-POT. LO
PIN 3-POT. HI
PIN 4-POT. WIPER
PIN 16
REV. ALARM
B+
B-
M2
M1
PIN 8-SLOW/FAST
ACC
SOLUTION VACUUM BRUSH B- 1 B- 2 B- 3 B- 4
A1
SPEED CONTROLLER
INTERFACE
THERMISTOR
I -- VAC I -- BRUSH
E1
CONTROL BOARD
OPTIONAL
16 AWG
22 AWG
HORN -
HORN +
OPTIONAL -- ON CYLINDRICAL MACHINE ONLY
SPEED LIMIT
J4-8 J2-5 J3-5 J3-6
J4-12
J4-6 J4-2
J2-8
J4-7
J4-1
J2-7
J2-6
J2-10
J3-1 J3-4
J3-3 J3-2
J4-11
J4-10
J4-4
J4-9
J4-3
STATUS
J4-5
PIN9-STATUS
J2-9
PIN 18-SPEED LIMIT
SPEED LIMIT
PIN5-KSI
PIN 6-BRAKE
J2-2
J2-1
J2-3
J1-1
J1-2
J1-3
J1-4
J1-6
J1-7
J1-8
J1-9
J1-10
E2
CHEMICAL
SYSTEM
OPTIONAL
