18 - FORM NO. 56043107 - Advolution
™
2710
/ UHR 70-1700
BURNISHING SYSTEM
PAD DRIVE DECK LEVEL ADJUSTMENT
NOTE: Install a new pad before performing this adjustment.
1 Put the pad drive deck in the down position.
2 Briefl y run the pad drive motor to get a pattern on the fl oor.
CAUTION!
Do not run pad motor for an extended period without moving machine.

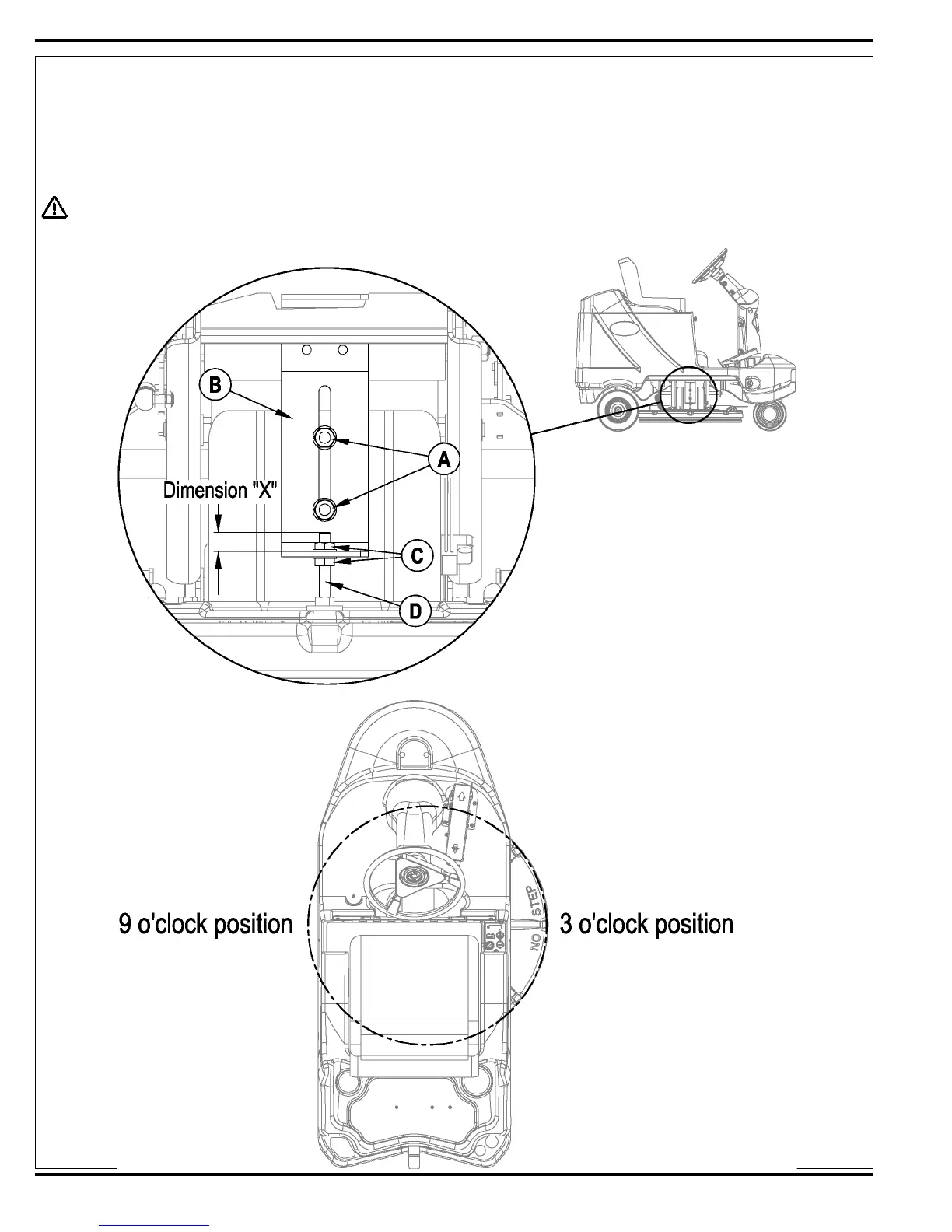

Left to Right Pad Contact Adjustment – See Figure 4.
1 Loosen the (2) Nuts (A) on the Adjustable Bracket (B).
2 Turn the (2) Lock Nuts (C) on the Carriage Screw (D) either
down to increase or up to decrease Dimension “X”.
Decreasing Dimension “X” will increase the pad pressure at
the 3 O’clock position.
Increasing Dimension “X” will increase the pad pressure at the
9 O’clock position.
FIGURE 4
NOTE: As a general rule the
measurement at the 3 o’clock and the
9 o’clock position should be the same
when measured from the fl oor to the
edge of the dust shroud.
revised 6/08
