32 - FORM NO. 56043107 - Advolution
™
2710
/ UHR 70-1700
WHEEL DRIVE SYSTEM
DRIVE WHEEL REMOVAL
WARNING!
Disconnect the battery pack by separating the battery connectors (7) whenever servicing the machine.
1 Disconnect battery and block rear wheels.
2 See Figure 7. Using a 5mm hex key wrench remove the (4) Screws (A) that secure the Tire/Hub Assembly (B) to the gearbox out put fl ange.
3 Safely lift or jack the front of the machine 1 – 2 inches (25 – 50 mm) and block both sides of the machine body in front of the burnishing deck.
4 While rotating the Tire/Hub Assembly (B), tap on the tire with a block of wood or dead blow hammer until tire hub separates from the gear
box.

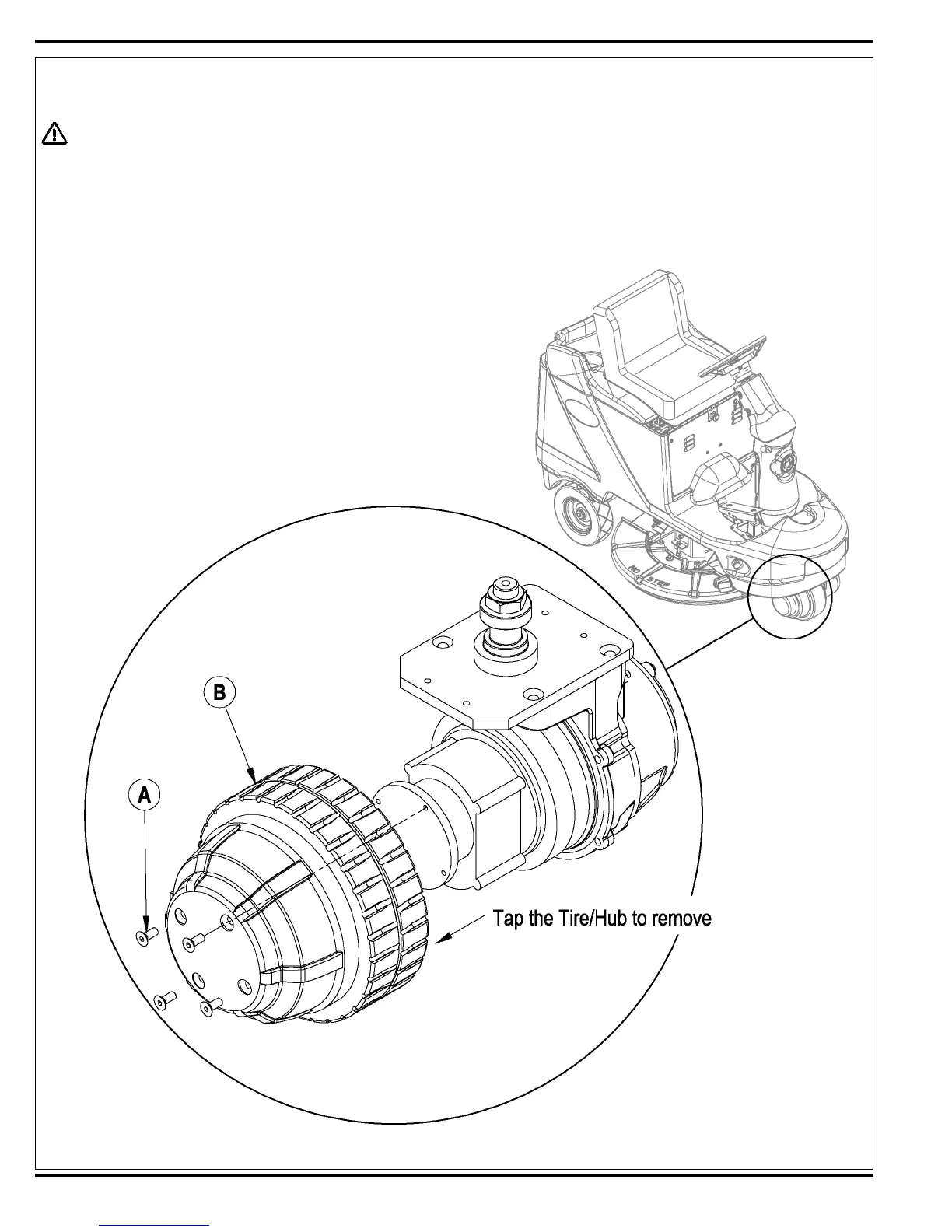

FIGURE 7
